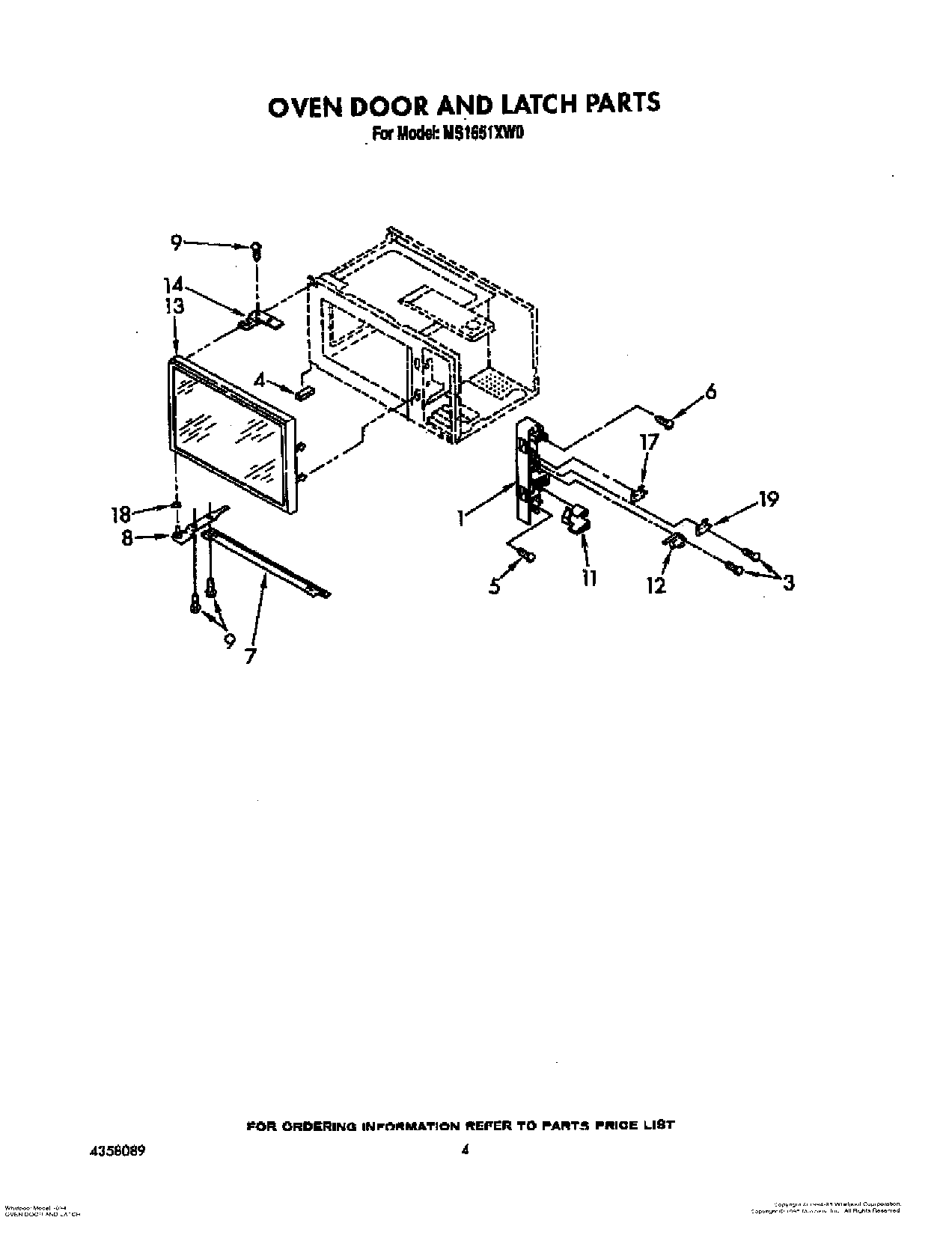

MS1651XW0 04 – OVEN DOOR AND LATCH

Written by

Products

Position	Product
1	Latch Board
3	Screw, 3 x 20mm
4	Pad, Foam (2)
5	Screw (2)
6	Special Screw (2)
7	Bracket, Hinge
8	Hinge Plate, Lower
9	WP3400094 Whirlpool Screw
11	Lever Switch
13	Door, Complete
14	Hinge Plate, Upper
17	4392027 Whirlpool Microwave Primary Switch
18	Washer
