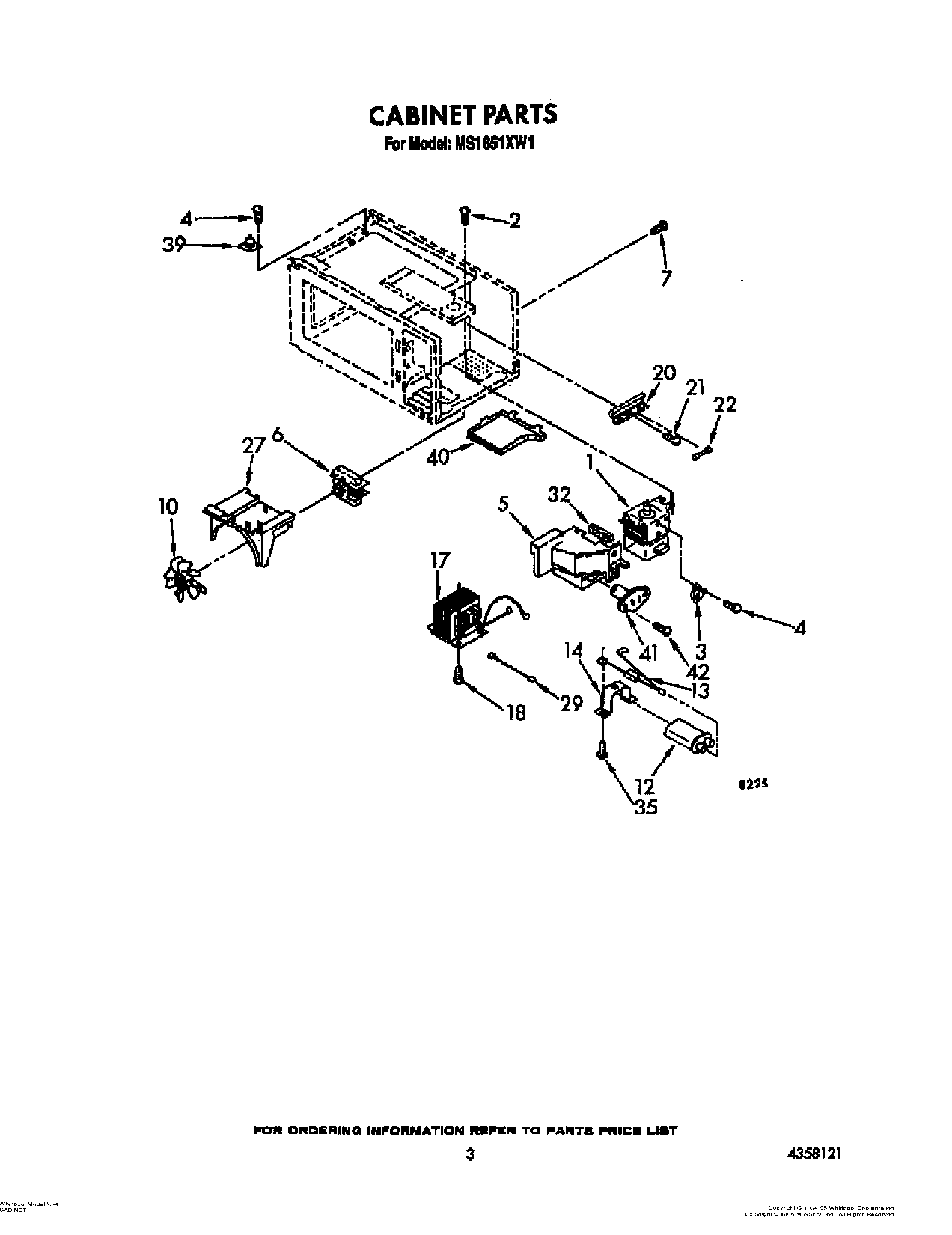

| 1 | Magnetron |
| 2 | Screw, 4 x 8 mm |
| 3 | Thermostat, Magnetron |
| 4 | Screw (2) |
| 5 | Duct, Air |
| 6 | Motor, Fan |
| 7 | Screw, 4 x 10 mm |
| 10 | 8184292 Whirlpool Microwave Fan Blade |
| 12 | Capacitor |
| 13 | Diode Cable |
| 14 | Bracket, Capacitor |
| 17 | Transformer |
| 18 | WP3400094 Whirlpool Screw |
| 20 | Holder, Fuse |
| 21 | Screw (2) |
| 22 | Fuse |
| 27 | Cover, Fan |
| 29 | Lead, High Voltage |
| 32 | Seal, Foam |
| 35 | Screw, 4 x 8 mm |
| 39 | Thermostat, Oven |
| 40 | Bracket, Base |
| 41 | Base Less Light |
| 42 | Screw |
