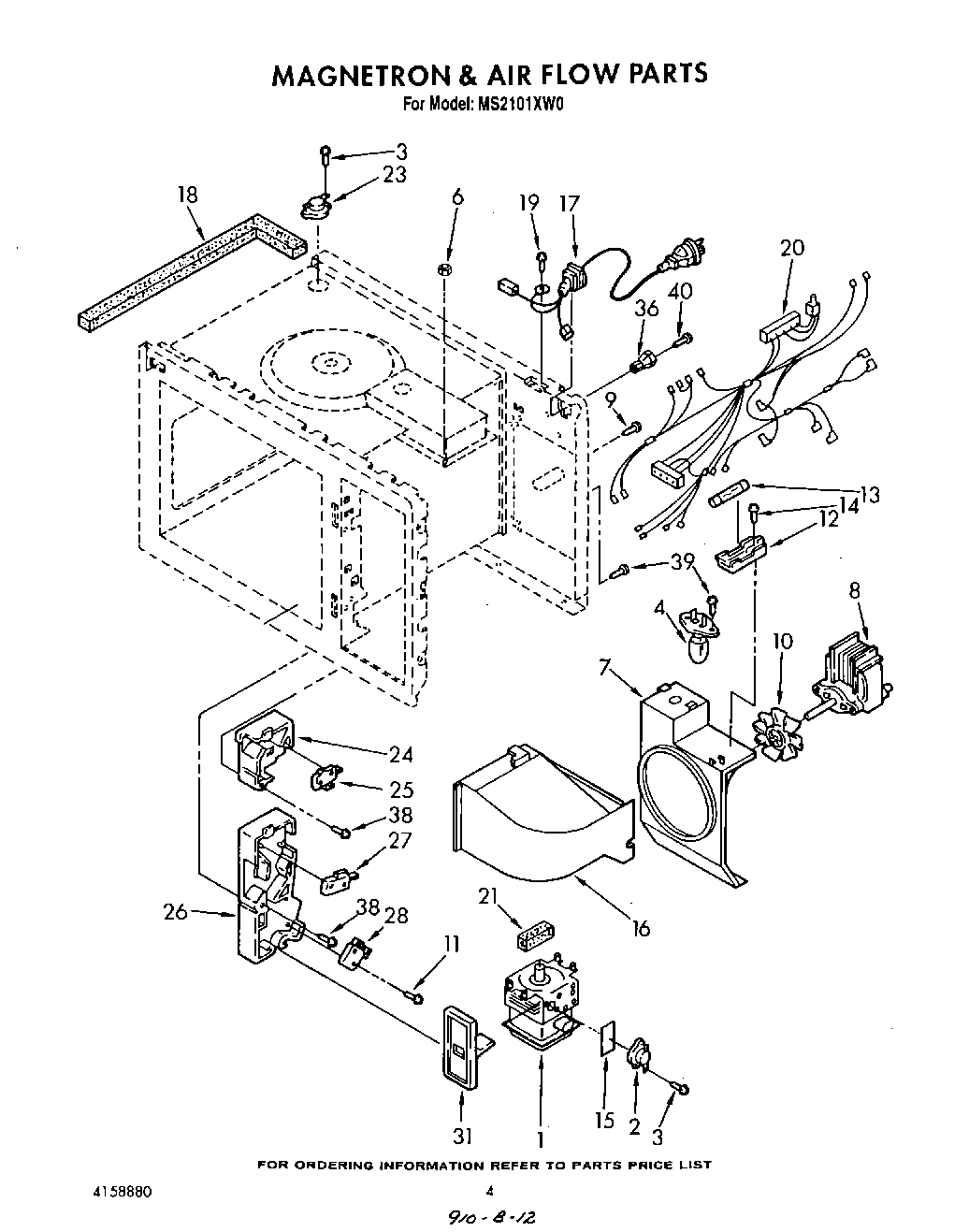

MS2101XW0 04 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Thermostat
3	Screw (2)
4	Base Less Light
6	Nut (2)
7	Bracket, Fan
8	Motor, Fan
9	Screw
10	8184292 Whirlpool Microwave Fan Blade
11	Screw (2)
12	Holder, Fuse
13	Fuse
14	Screw (2)
15	Thermo Insulator
16	Air Duct
17	Cord, Power
18	Seal, Cavity
19	Screw
20	Wiring Harness
21	Cushion
23	Thermostat, Oven
24	Latch, Upper
25	4392027 Whirlpool Microwave Primary Switch
26	Latch, Lower
28	Micro Switch (Secondary)
31	Rod, Release
33	Screw
36	Spacer
38	Special Screw (2)
39	Screw
40	Screw
