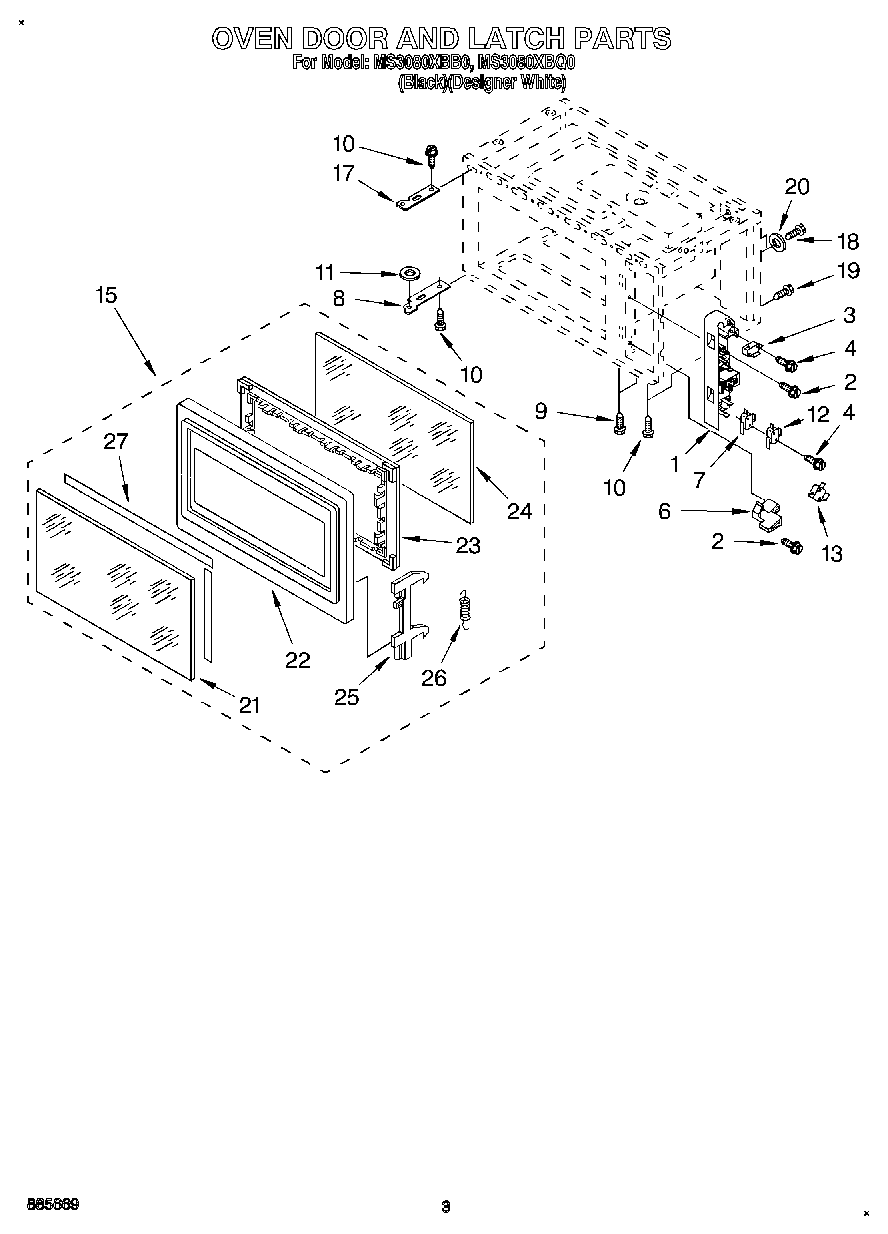

MS3080XBB0 03 – OVEN DOOR AND LATCH

Products

Position	Product
1	Latch, Board
2	Screw
3	4392027 Whirlpool Microwave Primary Switch
4	Screw, 3 x 16 mm (2)
6	Rod, Release
8	Hinge Plate, Lower
9	4344826 Whirlpool Refrigerator Screw
10	WP3400094 Whirlpool Screw
11	Hinge Washer
15	Door, Complete (White)
15	Door, Complete (Black Application)
17	Hinge Plate, Upper
18	Screw (2)
19	Screw
20	Washer, Spring Lock (2)
21	Screen, Front (Black Model)
21	Screen, Front (White Model)
22	Frame, Door (White Model)
22	Frame, Door (Black Model)
23	Choke Cover
24	Tape, Seal
25	Latch
26	Spring, Latch
27	Tape, Toyo
