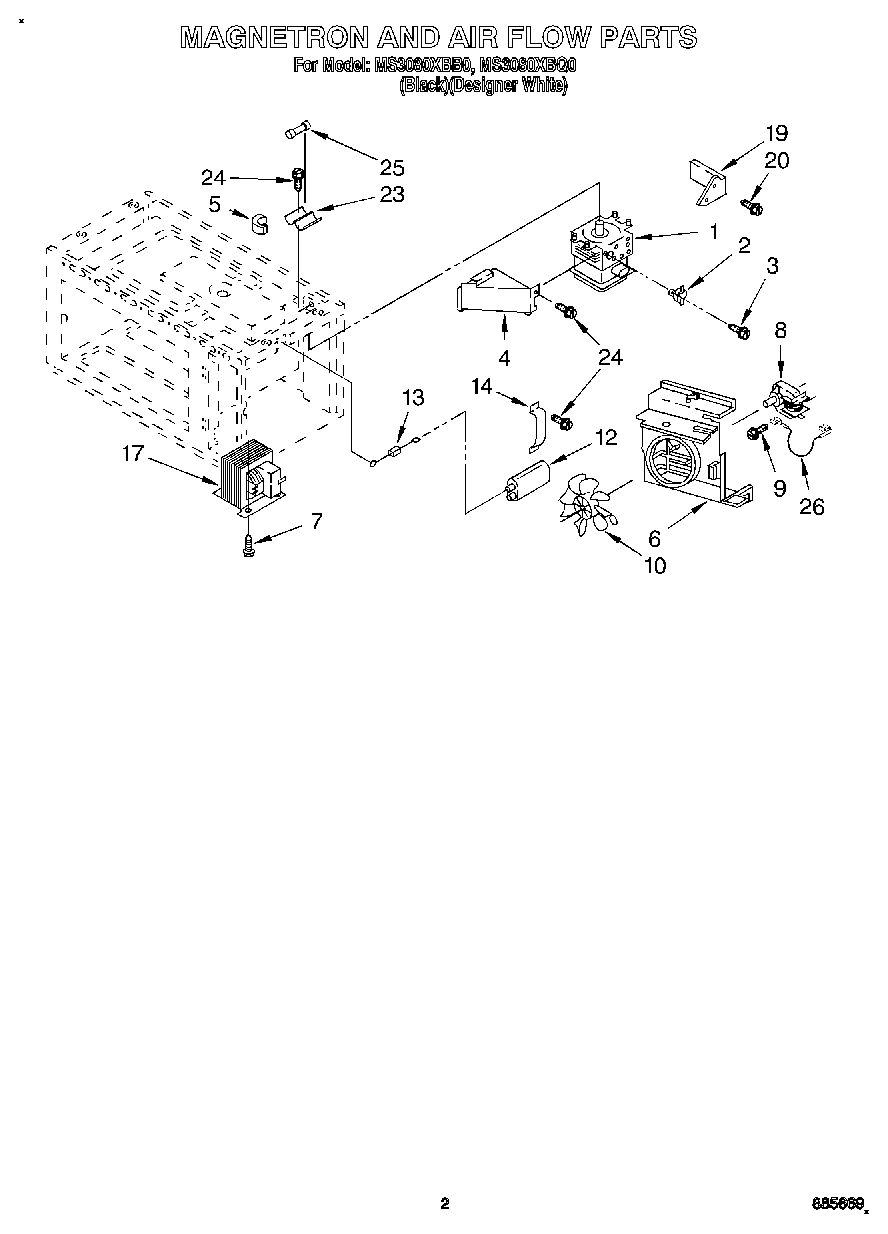

MS3080XBQ0 02 – MAGNETRON AND AIR FLOW

Written by

Products

Position	Product
1	Magnetron
2	Thermostat
3	Screw
4	Duct, Air
5	Seal
6	Cover, Fan
7	Screw
8	Motor, Fan
9	Screw
10	8184292 Whirlpool Microwave Fan Blade
12	Capacitor
13	Diode Cable
14	Bracket, Capacitor
17	Transformer
19	Guide, Air (Magnetron)
20	W11380570 Whirlpool Microwave Screw
23	Fuse Cap
24	Screw (2)
25	Fuse
26	H.V. Cable
