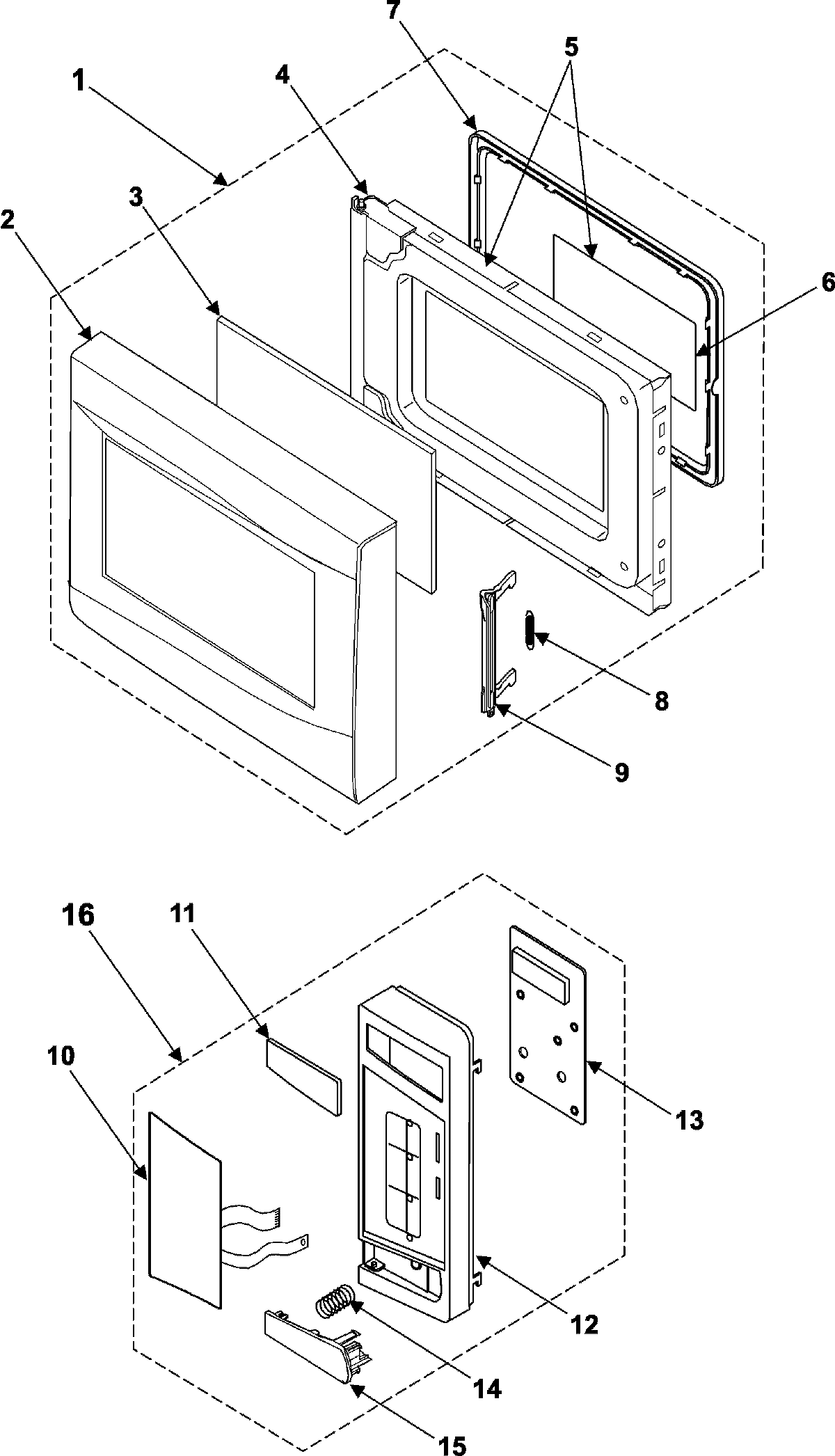

MS840BB 02 – CONTROL PANEL/DOOR ASSEMBLY

Products

Position	Product
2	MAY DE64-00524B
3	MAY DE67-20196A
4	MAY DE94-00351B
5	MAY DE94-00459A
6	MAY DE64-00221B
7	MAY DE64-40008B
8	MAY DE61-00198A
9	MAY DE64-00210A
10	MAY DE34-00141B
11	MAY DE64-00533A
12	MAY DE64-00534B
13	MAY YRAS2LED100
14	DE61-70076A Samsung Spring-Button
15	MAY DE64-00532B
16	SEE NOTE GROUND WIRE, GREEN
