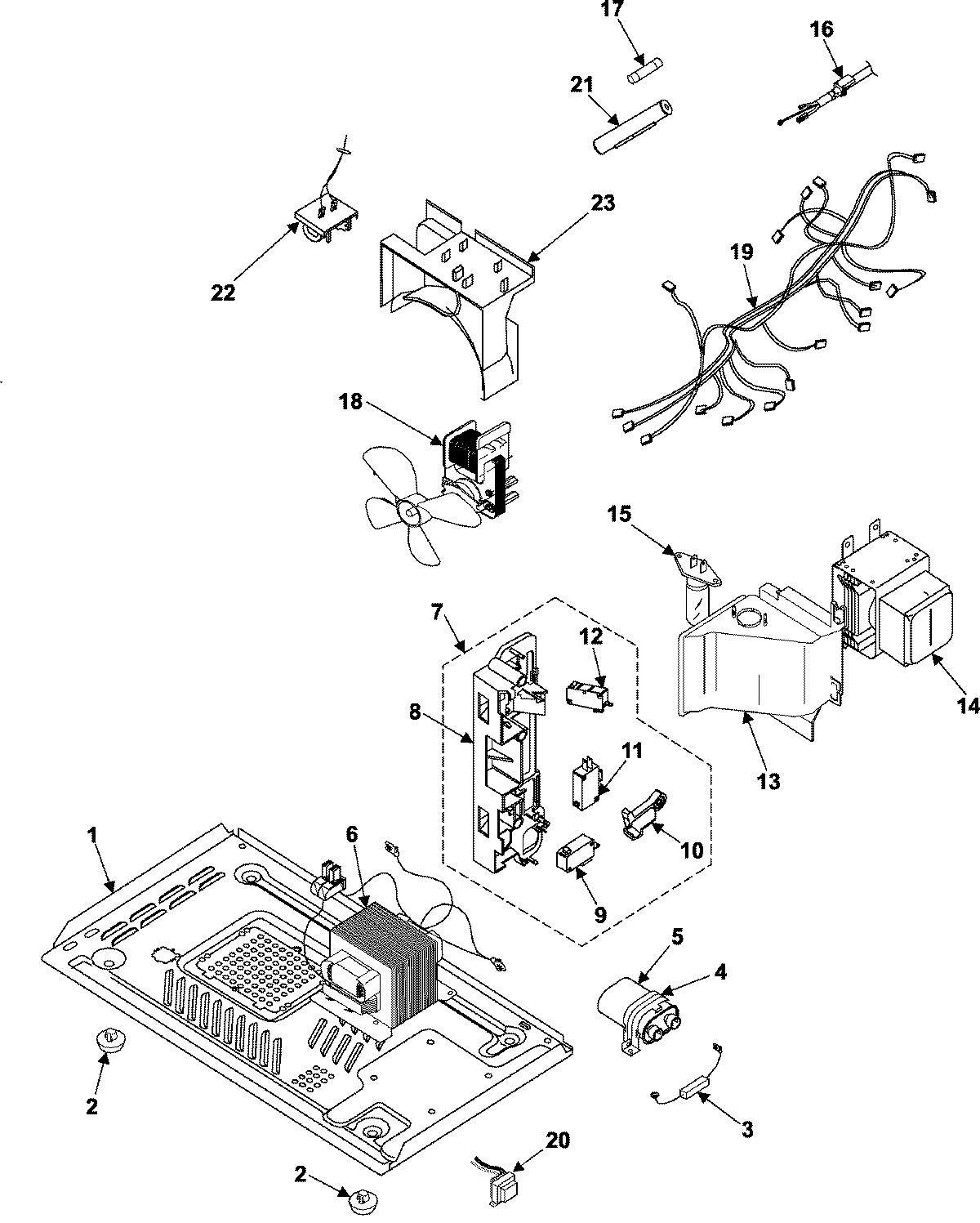

MS840WB 03 – INTERNAL CONTROL/LATCH ASSY/BASE

Products

Position	Product
1	MAY DE80-00023A
2	FOOT
3	MAY DE59-40001A
4	SEE NOTE GROUND WIRE, GREEN
5	2501-001035 Samsung Microwave C-Oil High Voltage Capacitor
6	MAY DE26-00060A
7	MAY DE96-00115A
8	MAY DE72-00138A
9	MAY 3405-001042
10	MAY DE66-00088A
11	MAY 3405-001033
12	WP3405-001034 Whirlpool Microwave Switch
13	MAY DE71-60457B
14	WPW10126794 Whirlpool Microwave Magnetron
15	4713-001102 Samsung Microwave Incandescent Lamp 125V 25W
16	MAY DE39-20146E
17	MAY 3601-001197
18	DE96-00086B Samsung Motor Fan Assembly
19	MAY DE39-00269A
20	MAY DE26-00037A
22	MAY DE97-00277A
23	MAY DE63-00095A
