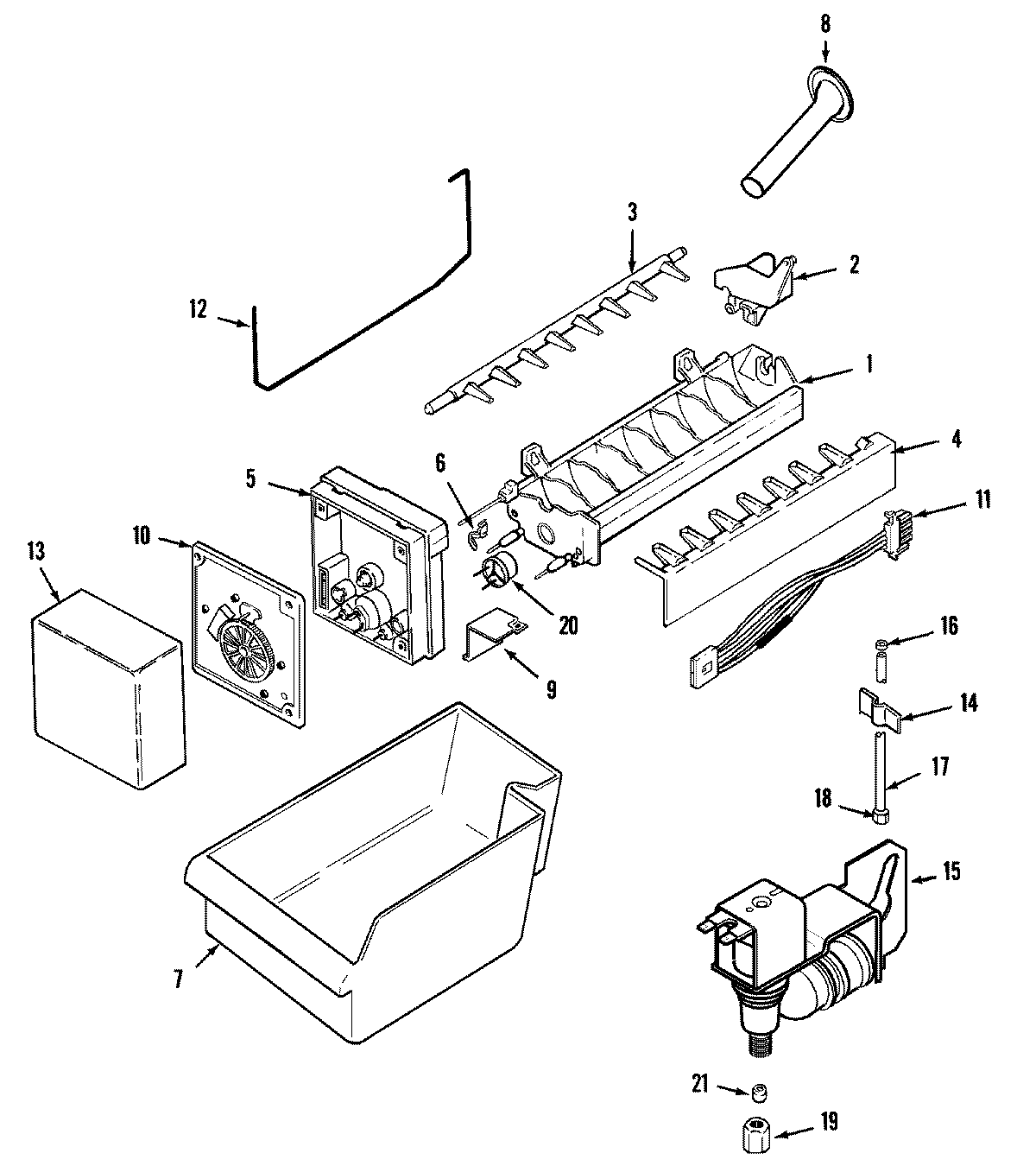

MSB2354DRW 08 – OPTIONAL ICE MAKER KIT-UKI2000AXX

Written by

Products

Position	Product
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1	WP99003172 Whirlpool Silicone L
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP2195914 Whirlpool Refrigerator Ice Maker Housing
5	SCREW
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 61001886
8	MAY 61003571
9	MAY 95108-1
9	BRACKET, MODULE & HEATER
10	MAY 400021-1
10	MAY 95109-1
11	MAY 61003572
11	MAY 61003575
12	MAY 68112-1
13	MAY 61001239
14	SCREW
14	MAY 61001889
14	W10833902 Whirlpool Refrigerator Clamp
15	WP61005273 Whirlpool Refrigerator Inlet Valve
15	MAY 61002819
16	WPM0114003 Whirlpool Microwave Speed Clip Clamp
17	MAY 67579-26
18	WP627018 Whirlpool Refrigerator Nut
19	WP245183 Whirlpool Nut
20	MAY 95093-1
20	WP627985 Whirlpool Icemaker Cycling Thermostat
21	WP487627 Whirlpool Refrigerator Sleeve
