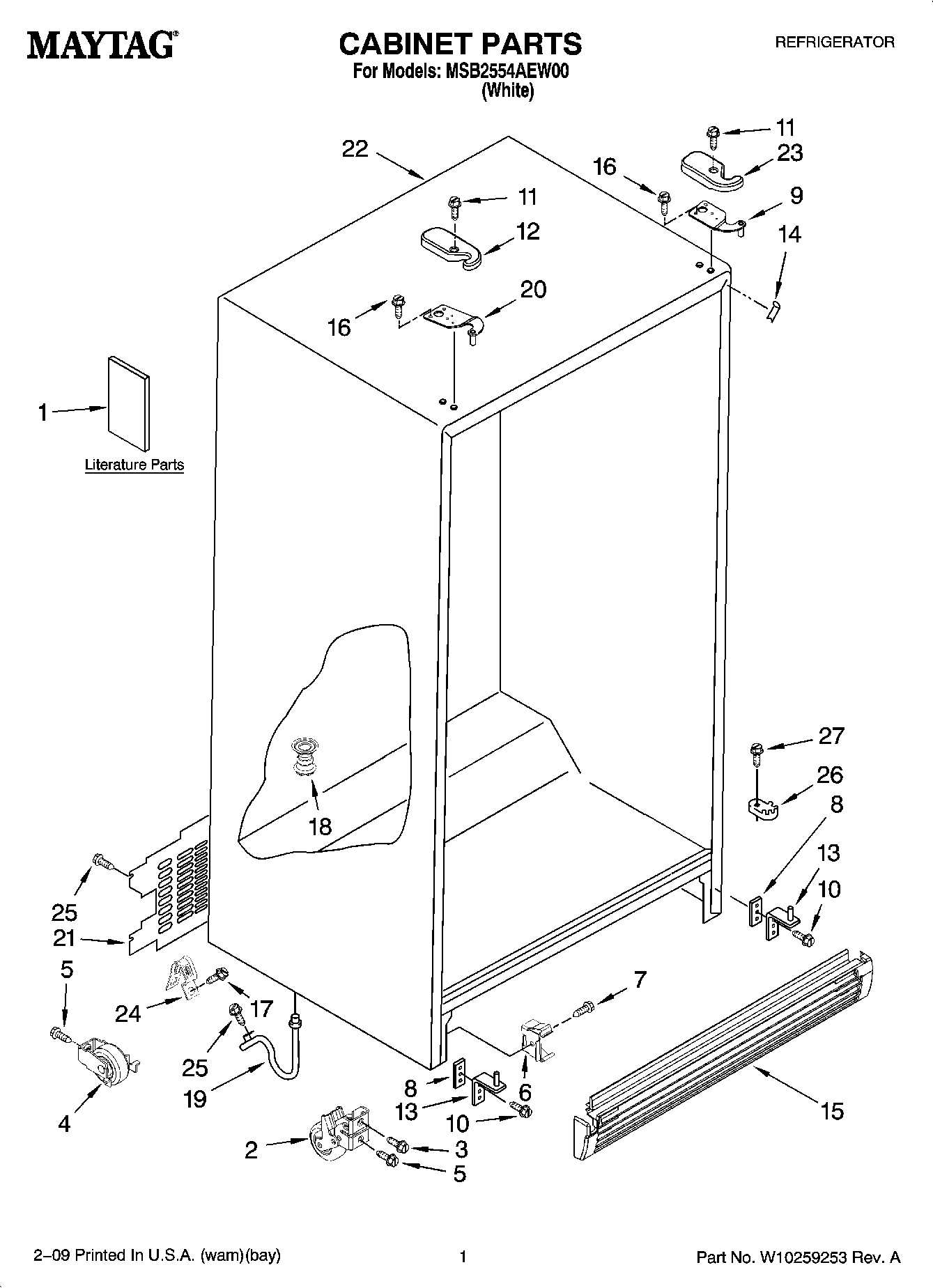

MSB2554AEW00 01 – CABINET PARTS

MSB2554AEW00 01 – CABINET PARTS

Written by

in

MSB2554AEW00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10142192
1	MAY W10179960
1	MAY W10217561
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY 489427
6	MAY 2155013
7	MAY 489478
8	Shim (2)
9	HINGE TOP RC
10	Screw (4)
11	MAY 8281227
12	Hinge Cover (RC) (White)
13	MAY 2217075
14	Corner Filler (2) (White)
15	GRILLE
16	MAY 489497
17	Screw (3)
18	MAY 2304888
19	MAY 2304937
20	HINGE TOP, FC
21	MAY 2214574
23	Hinge Cover (FC) (White)
24	MAY 489348
25	MAY 489084
26	MAY 2155311
27	MAY 489483
