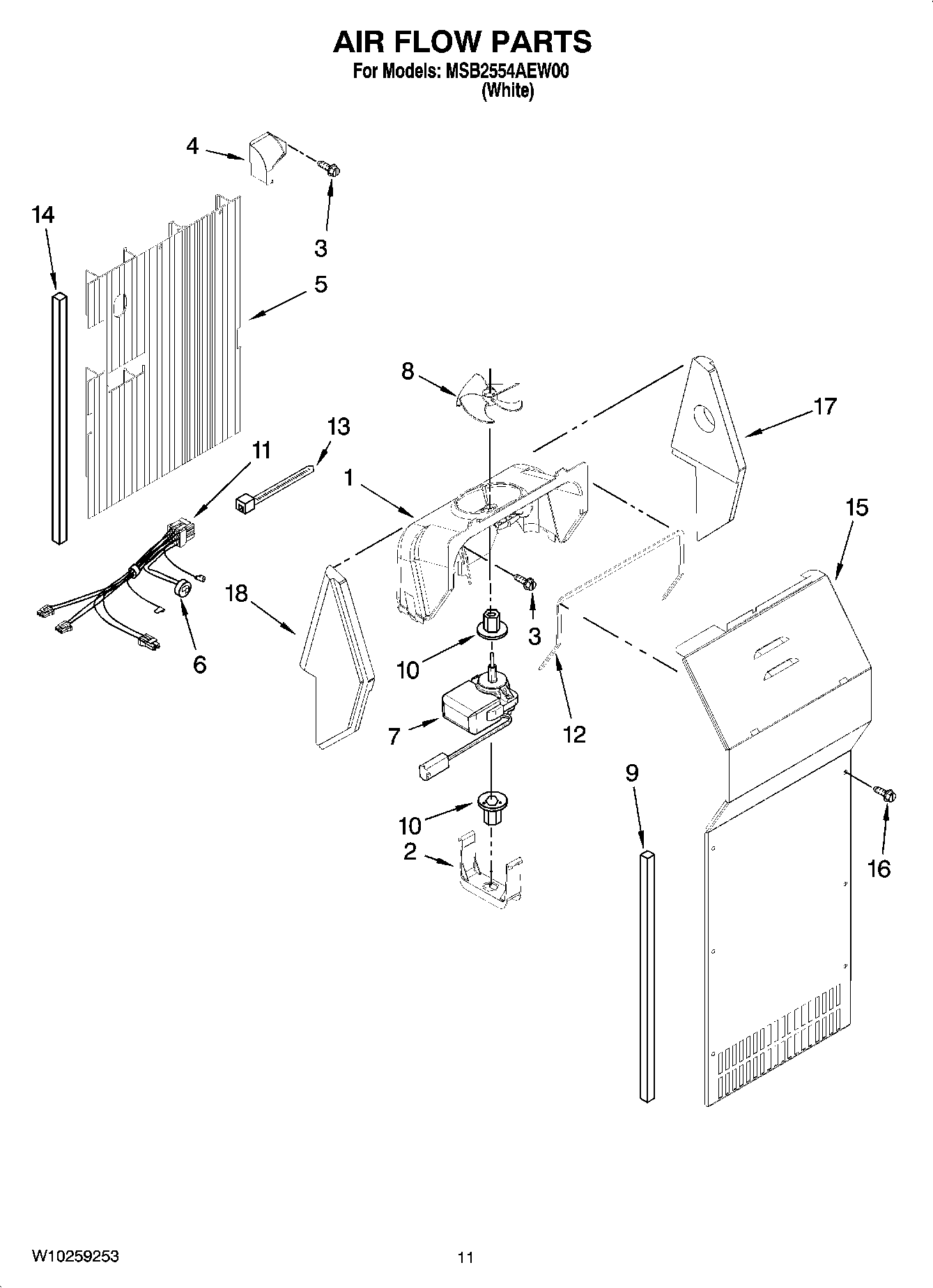

MSB2554AEW00 07 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 489478
4	MAY 2161229
5	DUCT, FREEZER AIR
6	MAY 2188824
7	MOTOR, FAN
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	Harness, Fan Evaporator (Includes 6)
12	Gasket, Fan Scroll
13	MAY 2263990
14	MAY 2203876
15	Cover, Evaporator (Includes 9)
16	MAY 8281159
17	SUPPORT, FAN SCROLL (RIGHT HAND)
18	SUPPORT, FAN SCROLL (LEFT HAND)
