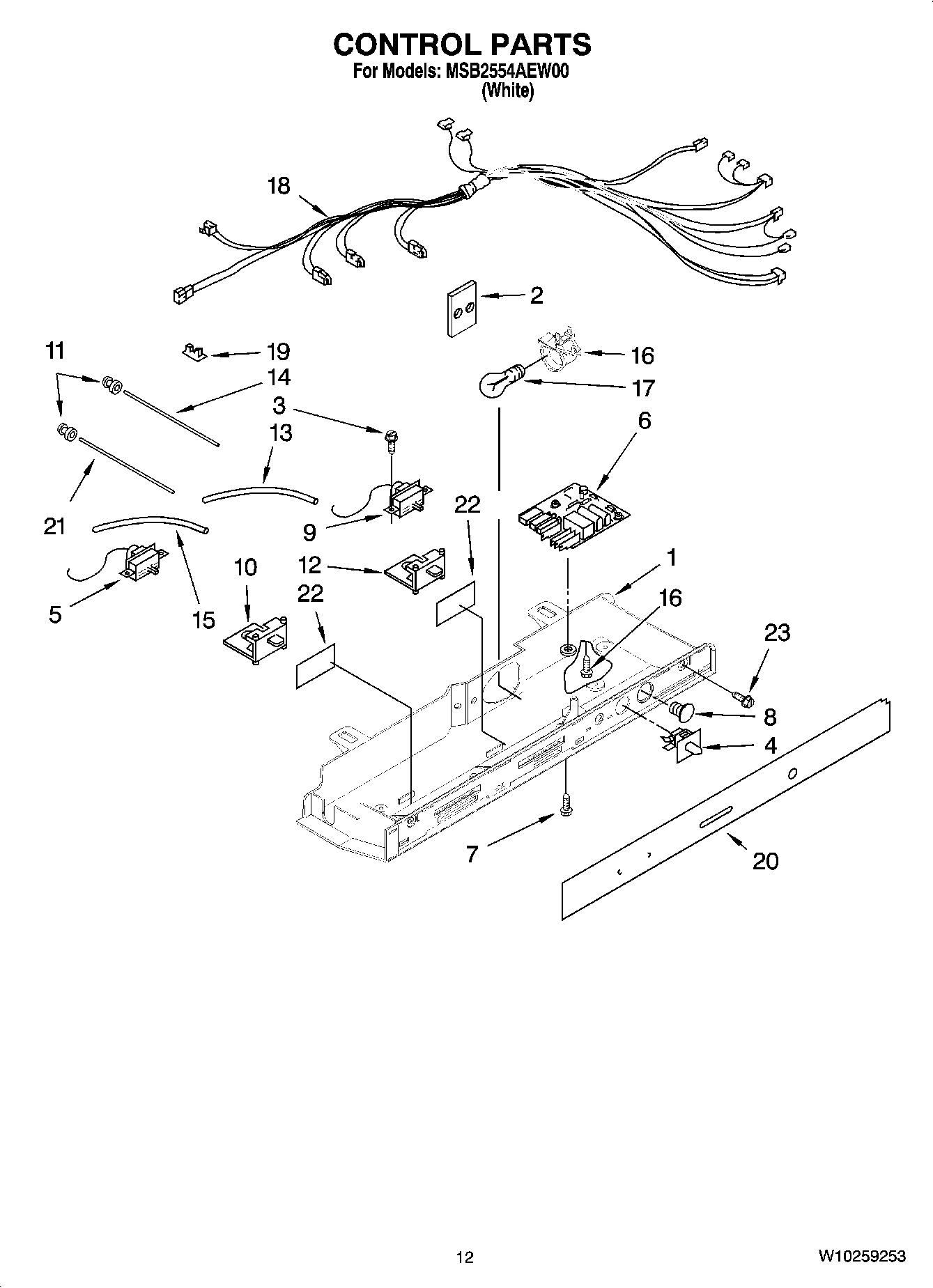

MSB2554AEW00 08 – CONTROL PARTS

MSB2554AEW00 08 – CONTROL PARTS

Written by

in

MSB2554AEW00 08 – CONTROL PARTS

Products

PositionProduct
1MAY 2200135
2MAY W10173095
3Screw (2)
4SWITCH, LIGHT
5THERMOSTAT (FREEZER)
6TIMER, DEFROST
7Screw
8MAY 940014
9MAY 2321305
11Grommet, Light Bar (4)
12MAY 2161466
13TUBE, THERMOSTAT BARRIER
14MAY 2179920
15TUBE, BARRIER THERMOSTAT (FC)
16MAY W10134764
17BULB, LIGHT
18MAY 2310533
19Clip-Wiring
20Escutcheon, Control Box
21LIGHT BAR FC
22MAY 2172940
23MAY 489084
