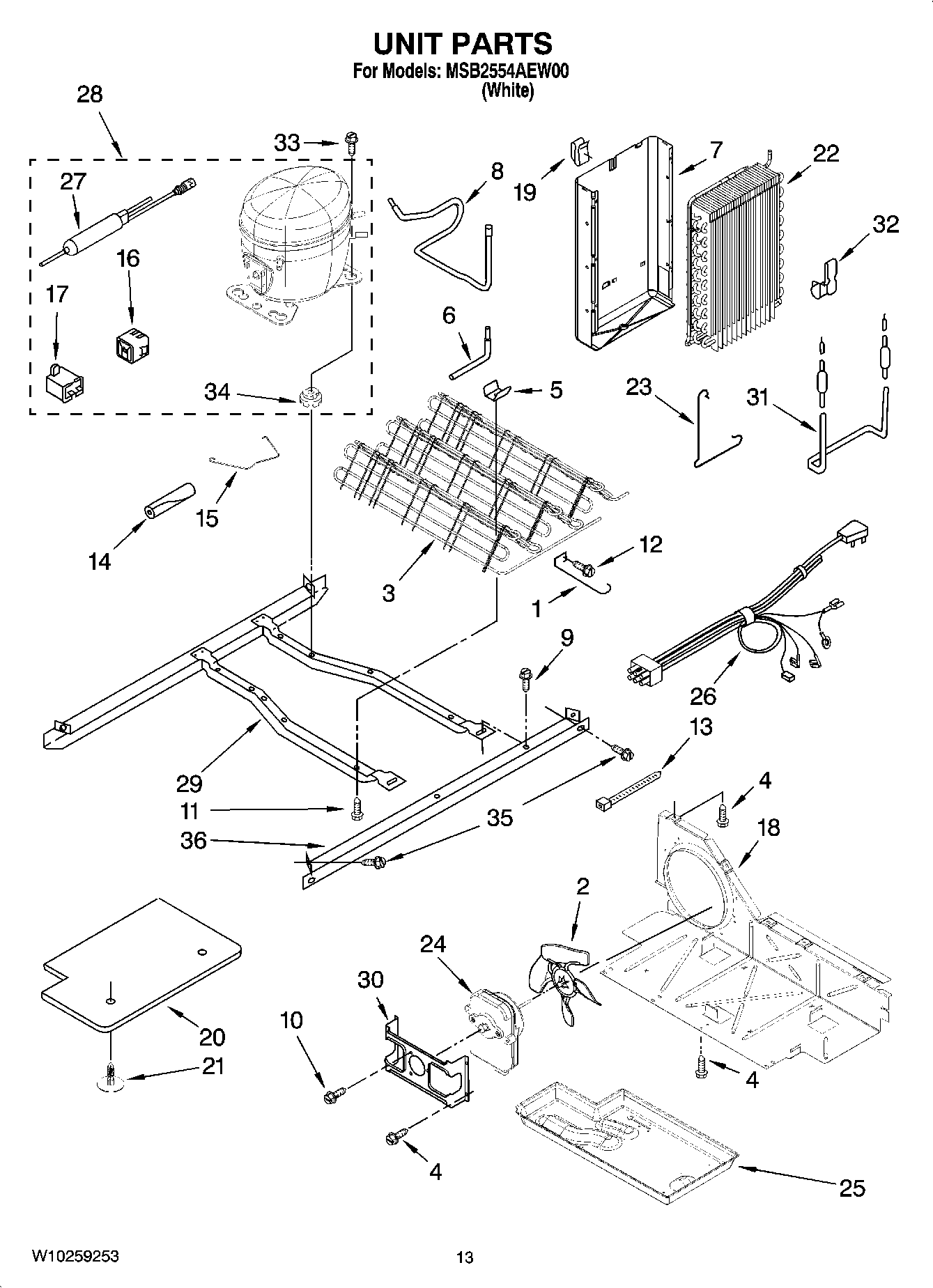

MSB2554AEW00 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	MAY 1110663
2	MAY 2225834
3	Condenser Assembly (Also Order 1)
4	Screw (3)
5	MAY 2311725
6	MAY 2325479
7	Heat Shield
8	MAY 2205765
9	MAY 489427
10	MAY 8533993
11	MAY 8281232
12	MAY 489478
13	MAY 2263990
14	Sleeve, Pressure Switch Hose
15	STRAP, BALE
16	Start-Device, Combination Relay and Overload (Production)
16	Relay, Combo (Service)
17	CAPACITOR
18	MAY W10163483
19	MAY 2155547
20	Unit Cover, Bottom
21	MAY 489396
22	Evaporator
24	MOTOR, CONDENSER
25	MAY 1105523
26	CORD, POWER
27	MAY 4387019
27	Drier
28	Compressor (Includes Items 16, 17, 27, & 34) (Also Order 876765 Tube Kit)
29	Unit Mounting Frame
30	MAY 2181929
31	MAY W10123653
32	Clip
33	MAY 489373
34	Grommet (Production)
35	MAY 489340
36	MAY W10196323
