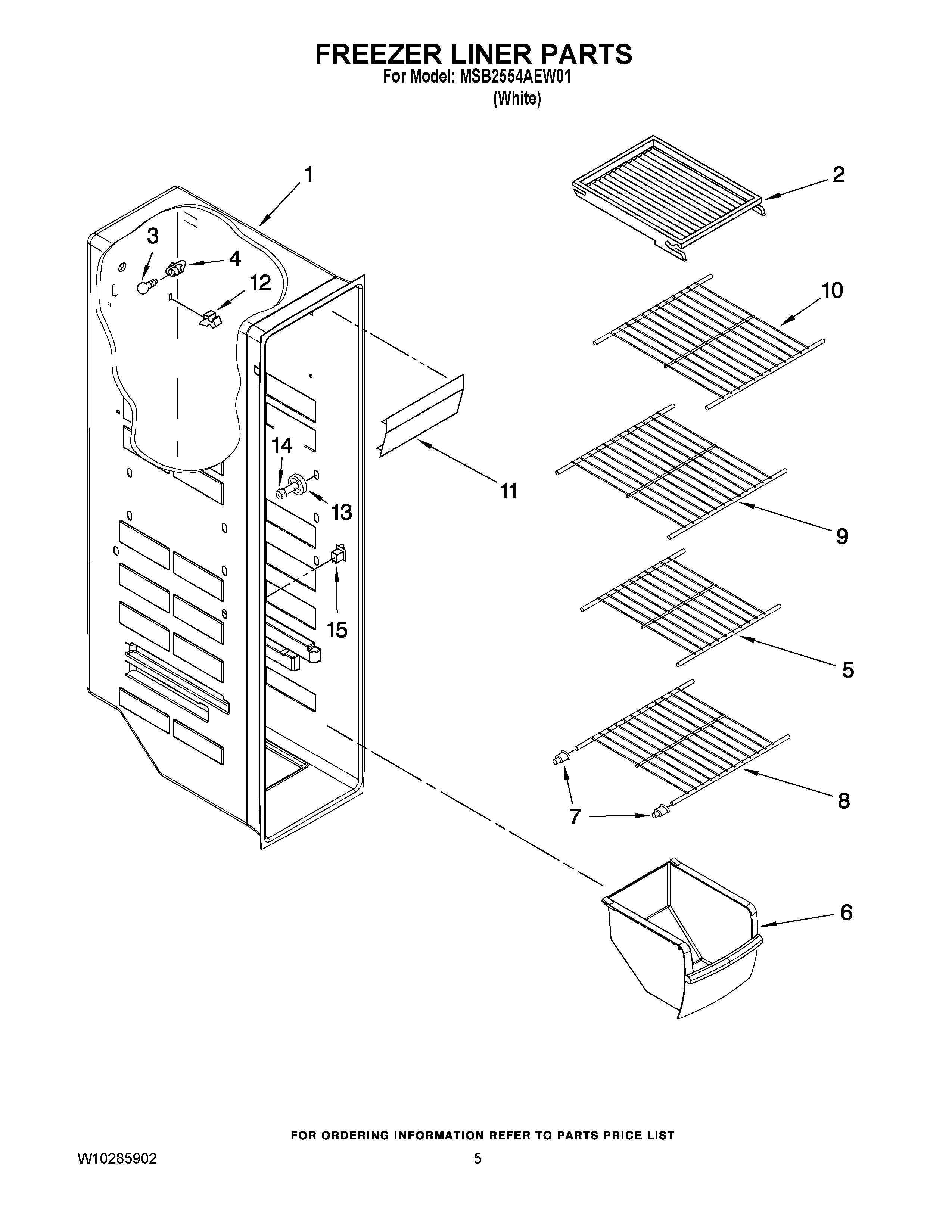

MSB2554AEW01 04 – FREEZER LINER PARTS

MSB2554AEW01 04 – FREEZER LINER PARTS

Written by

in

MSB2554AEW01 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2171714
3BULB, LIGHT
4MAY W10134764
5MAY 2309597
6Freezer Bin
7Cup, Shelf Mount
8MAY 2309521
9SHELF WIRE
10Shelf, Wire
11MAY 2198479
12Clip, Air Duct (2)
13ASSEMBLY, SHELF STUD
14MAY W10191952
15MAY 2321286
