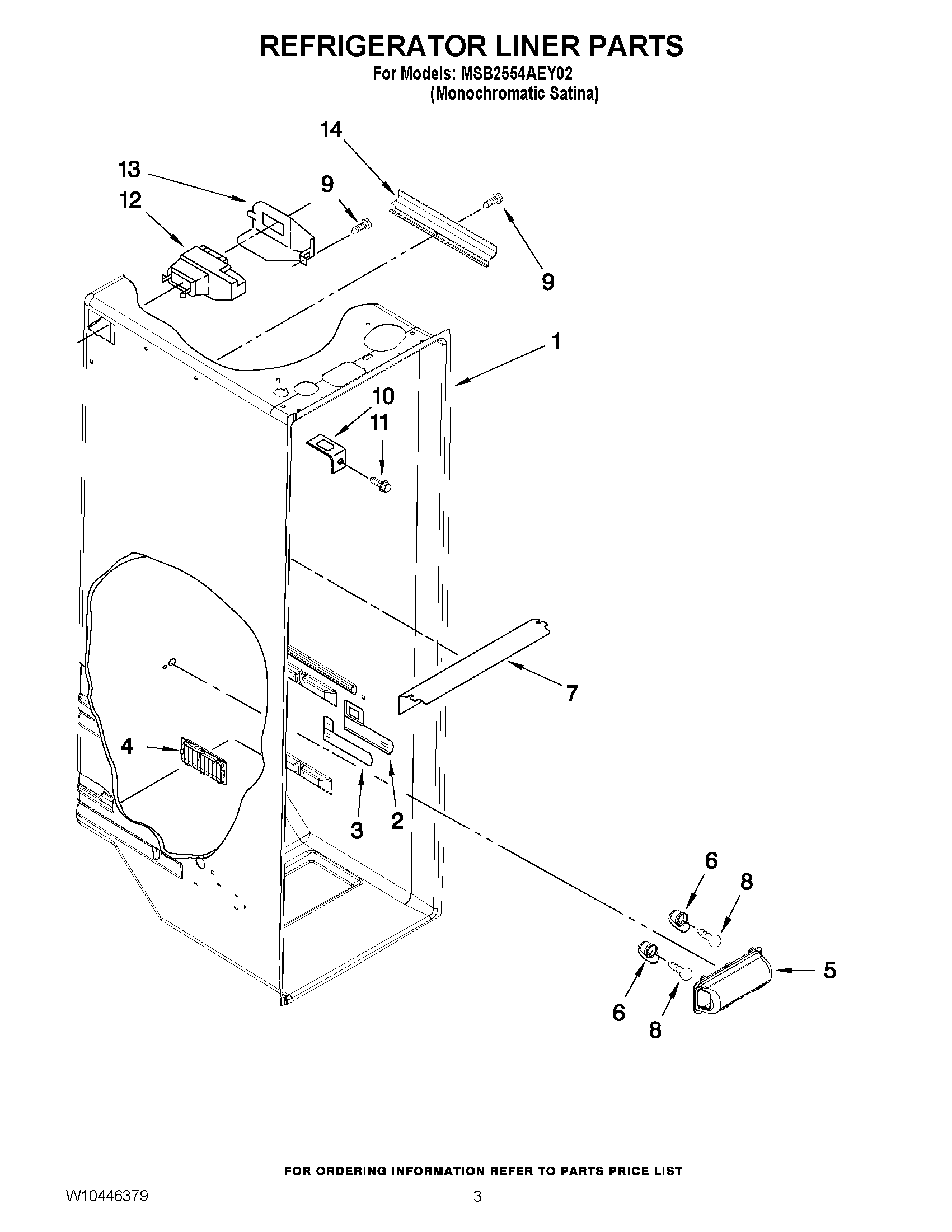

MSB2554AEY02 02 – REFRIGERATOR LINER PARTS

MSB2554AEY02 02 – REFRIGERATOR LINER PARTS

Written by

in

MSB2554AEY02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10175967
3MAY 2182757
4MAY 2257741
5Lens, Light
6MAY W10134764
7MAY 2198479
8BULB, LIGHT
9MAY W10004810
10MAY 2256085
11SCREW
12ASSEMBLY, AIR DIFFUSER
13COVER, AIR DIFFUSER
14Cover, Conduit
