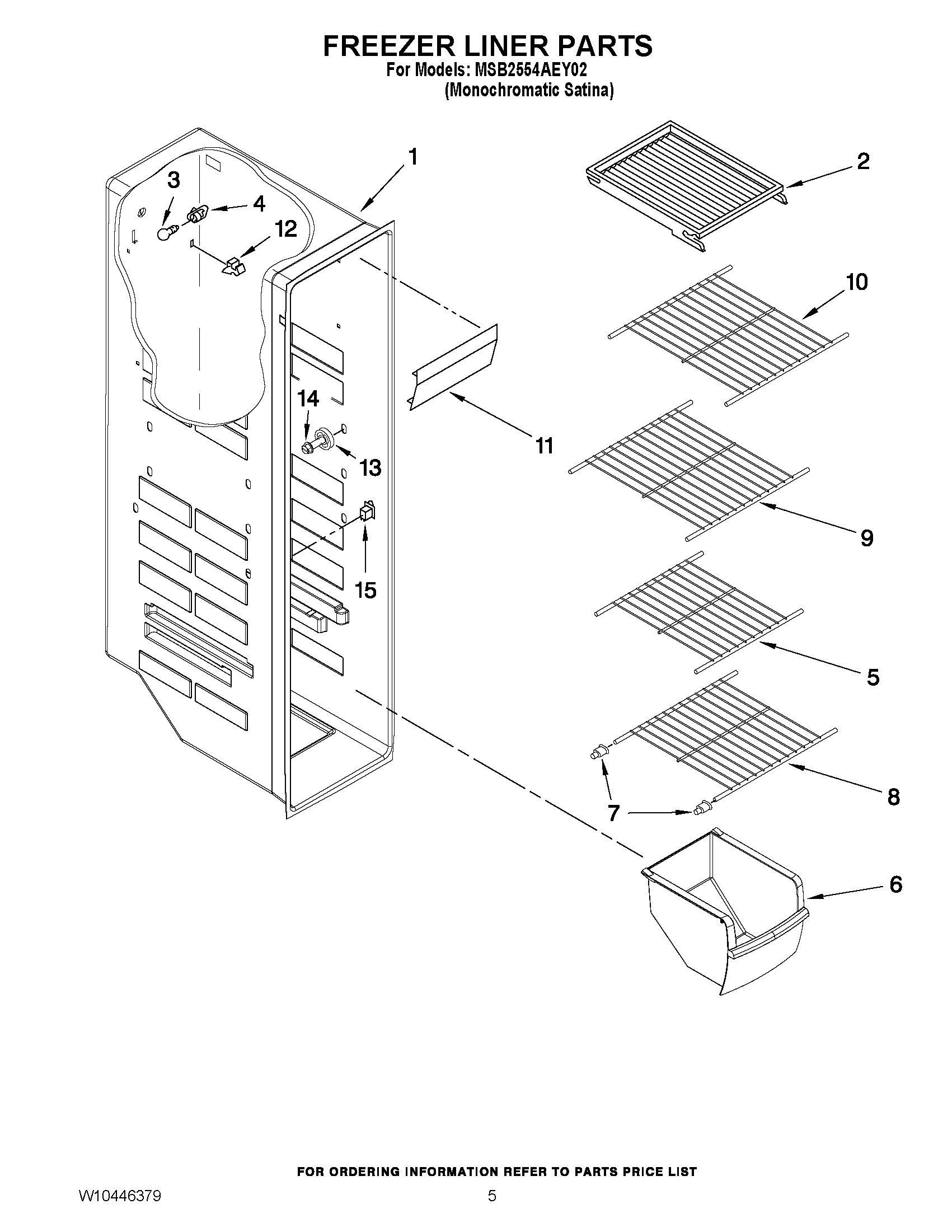

MSB2554AEY02 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2171714
3BULB, LIGHT
4MAY W10134764
5MAY W10318948
6Freezer Bin
7Cup, Shelf Mount
8MAY W10318947
9MAY W10318946
10MAY W10318945
11MAY 2198479
12MAY 2315163
13ASSEMBLY, SHELF STUD
14MAY W10191952
15MAY 2321286
