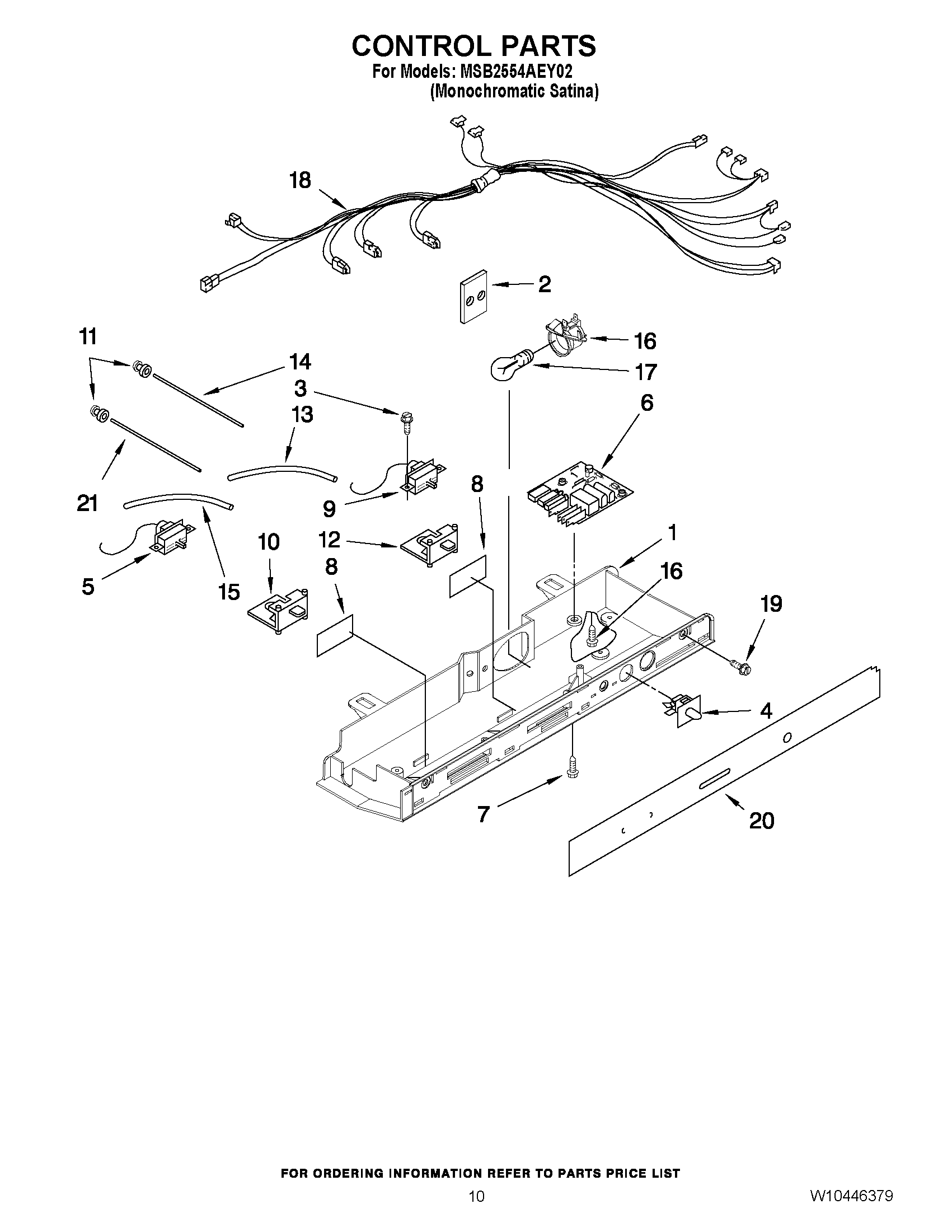

MSB2554AEY02 08 – CONTROL PARTS

MSB2554AEY02 08 – CONTROL PARTS

Written by

in

MSB2554AEY02 08 – CONTROL PARTS

Products

Position	Product
2	MAY W10173095
3	Screw (2)
4	SWITCH, LIGHT
5	THERMOSTAT (FREEZER)
6	TIMER, DEFROST
7	Screw
8	MAY 2172940
9	MAY 2321305
11	Grommet, Light Bar (4)
12	MAY 2161466
13	TUBE, THERMOSTAT BARRIER
14	MAY 2179920
15	TUBE, BARRIER THERMOSTAT (FC)
16	MAY W10134764
17	BULB, LIGHT
18	MAY 2200135
19	MAY 489084
20	MAY W10239827
21	LIGHT BAR FC
