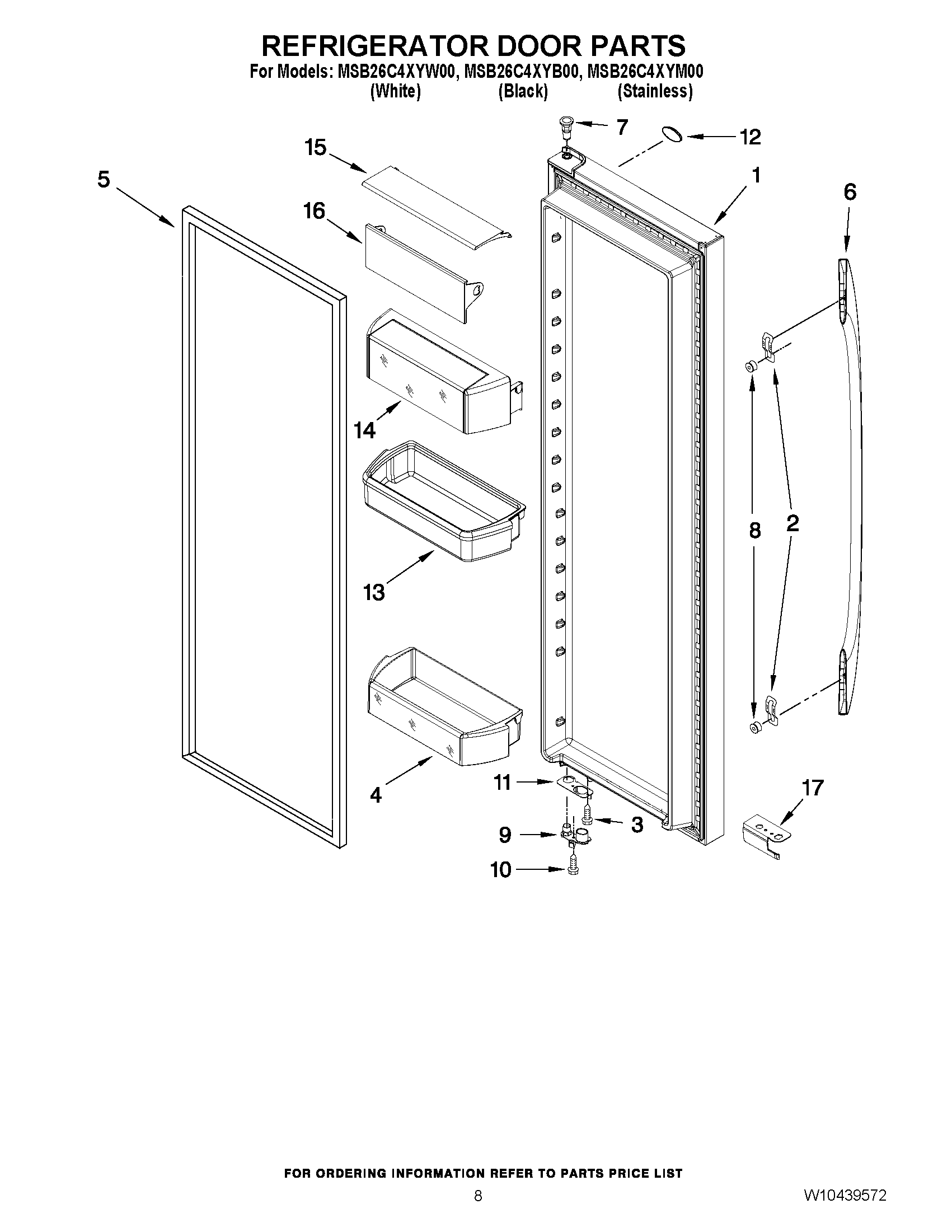

MSB26C4XYM00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY W10373135
1	MAY W10373136
1	MAY W10373134
2	MAY 2255411
3	SCREW
4	MAY W10347767
5	MAY W10249912
5	DOOR GASKET, MAGNETIC (APOLLO GREY)
5	MAY W10247884
6	HANDLE (INCLUDES ITEMS 7 & 9) (WHITE)
6	HANDLE (STAINLESS STEEL)
6	HANDLE (INCLUDES ITEMS 7 & 9) (BLACK)
7	THIMBLE
8	MAY W10129563
9	MAY W10257201
9	MAY W10248011
9	DOOR CLOSER, UPPER CAM (GREY)
10	SCREW
11	MAY W10247909
12	Nameplate
13	MAY W10347766
14	DOOR, COMPARTMENT ASSEMBLY
15	LID, UTILITY BIN
16	MAY W10316885
17	COVER, DOOR STOP (GREY)
17	MAY W10257216
17	MAY W10248013
