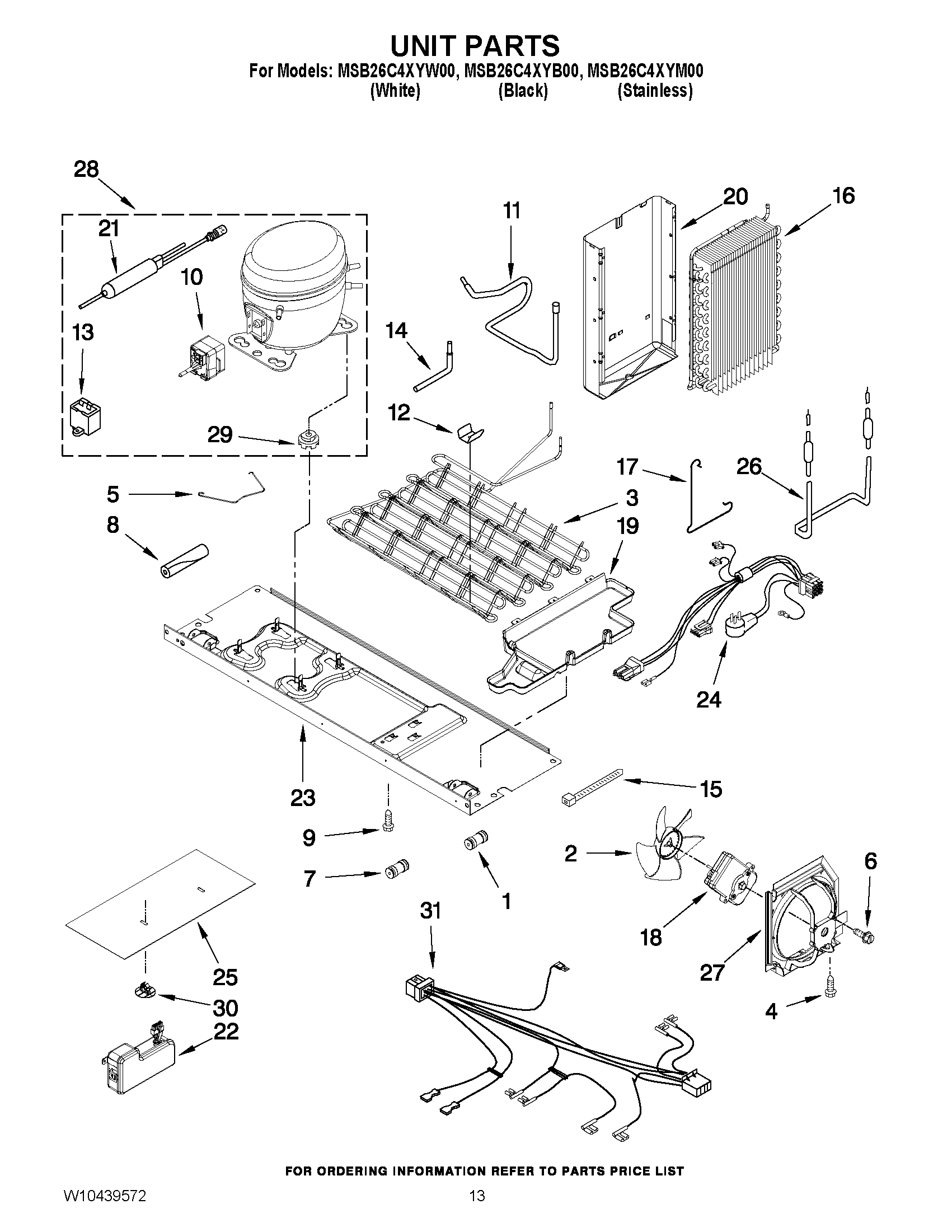

MSB26C4XYM00 09 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (1/2``)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
2	Fan, Blade
3	CONDENSER ASSEMBLY
4	MAY W10142255
5	Clip, Retaining
6	MAY W10171469
7	CONNECTOR, WATER
8	MAY W10303521
9	MAY W10142294
10	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (SERVICE)
10	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
11	MAY W10219381
12	CLIP, CONDENSER
13	Capacitator (Production)
14	MAY 2325479
15	TIE, WIRE
16	MAY 2188822
17	Clip
18	MOTOR, CONDENSOR
19	MAY W10238584
20	MAY W10274575
21	Drier
21	Drier
22	MAY W10356137
23	BASEPAN
24	MAY W10242407
25	MAY W10278140
26	MAY W10251470
27	BAFFLE, AIR
28	COMPRESSOR (INCLUDES ITEMS 10, 16, 22 & 35)
29	GROMMET (SERVICE)
29	GROMMET
30	CLIP, BOTTOM COVER
31	ASSEMBLY, UNIT WIRE
