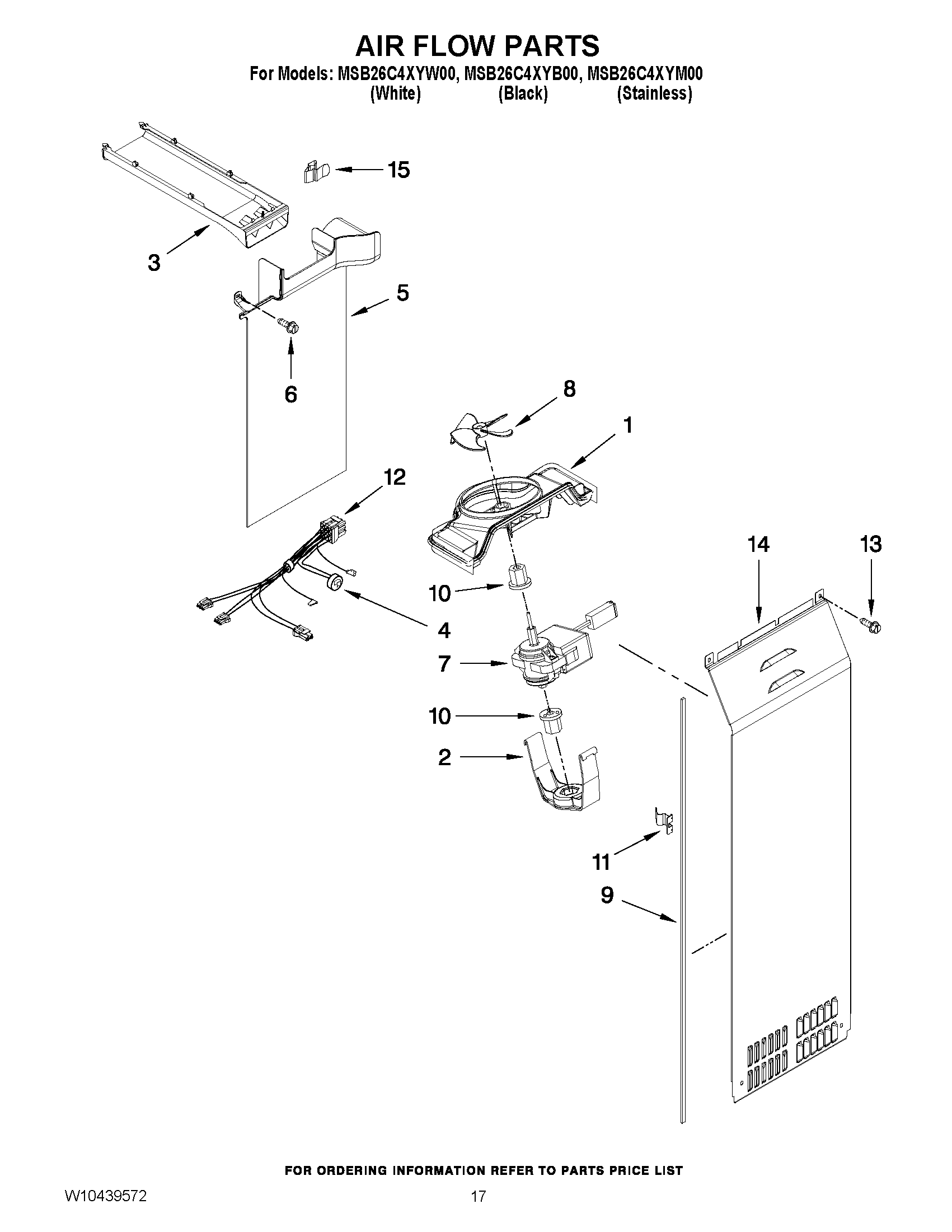

MSB26C4XYM00 11 – AIR FLOW PARTS

MSB26C4XYM00 11 – AIR FLOW PARTS

Written by

in

MSB26C4XYM00 11 – AIR FLOW PARTS

Products

PositionProduct
1MAY W10251462
2MAY W10260421
3MAY W10223286
4MAY W10260437
5MAY W10260378
6SCREW, 8 X 1/2
7MAY 2315549
8Blade, Fan (Evaporator)
9MAY W10240370
10GROMMET, MOTOR
11MAY W10274578
12MAY W10242409
13SCREW
14MAY W10239739
15MAY W10331728
