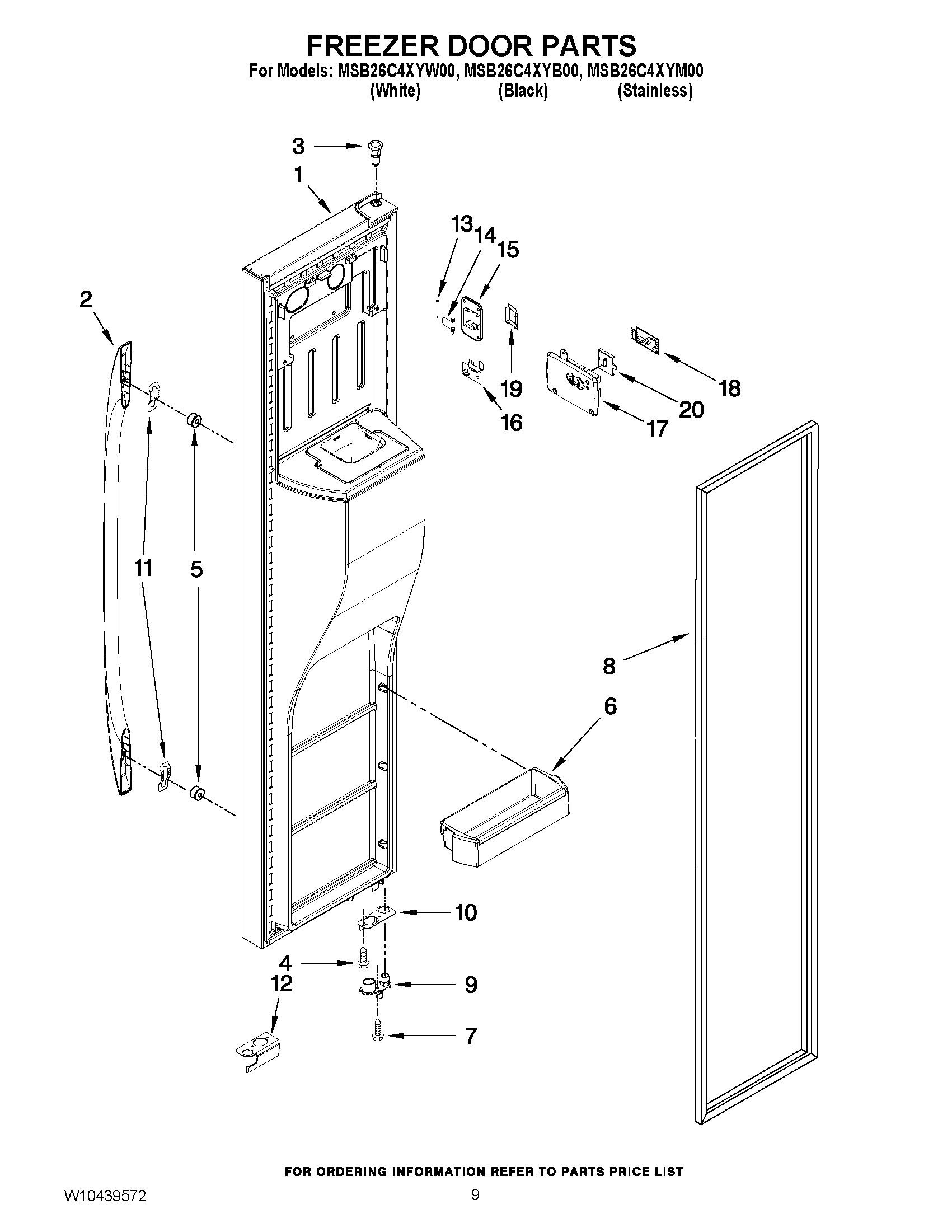

MSB26C4XYW00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY W10369965
1	MAY W10369964
1	MAY W10369963
2	HANDLE (INCLUDES ITEMS 7 & 9) (WHITE)
2	HANDLE (STAINLESS STEEL)
2	HANDLE (INCLUDES ITEMS 7 & 9) (BLACK)
3	THIMBLE
4	SCREW
5	MAY W10129563
6	MAY W10325080
7	SCREW
8	MAY W10247885
8	MAY W10249913
8	DOOR GASKET, MAGNETIC (APOLLO GREY)
9	MAY W10248015
9	MAY W10257204
9	DOOR CLOSER, UPPER CAM (GREY)
10	BRACKET, DOOR STOP (BLACK)
11	MAY 2255411
12	MAY W10257220
12	COVER, DOOR STOP (GREY)
12	MAY W10257221
13	PIN, DOOR
14	SPRING, DOOR
15	MAY W10258502
16	BOARD, EMITTER
17	MAY W10258510
18	P.C. BOARD, RECEIVER
19	DOOR, EMITTER
20	MAY W10258540
