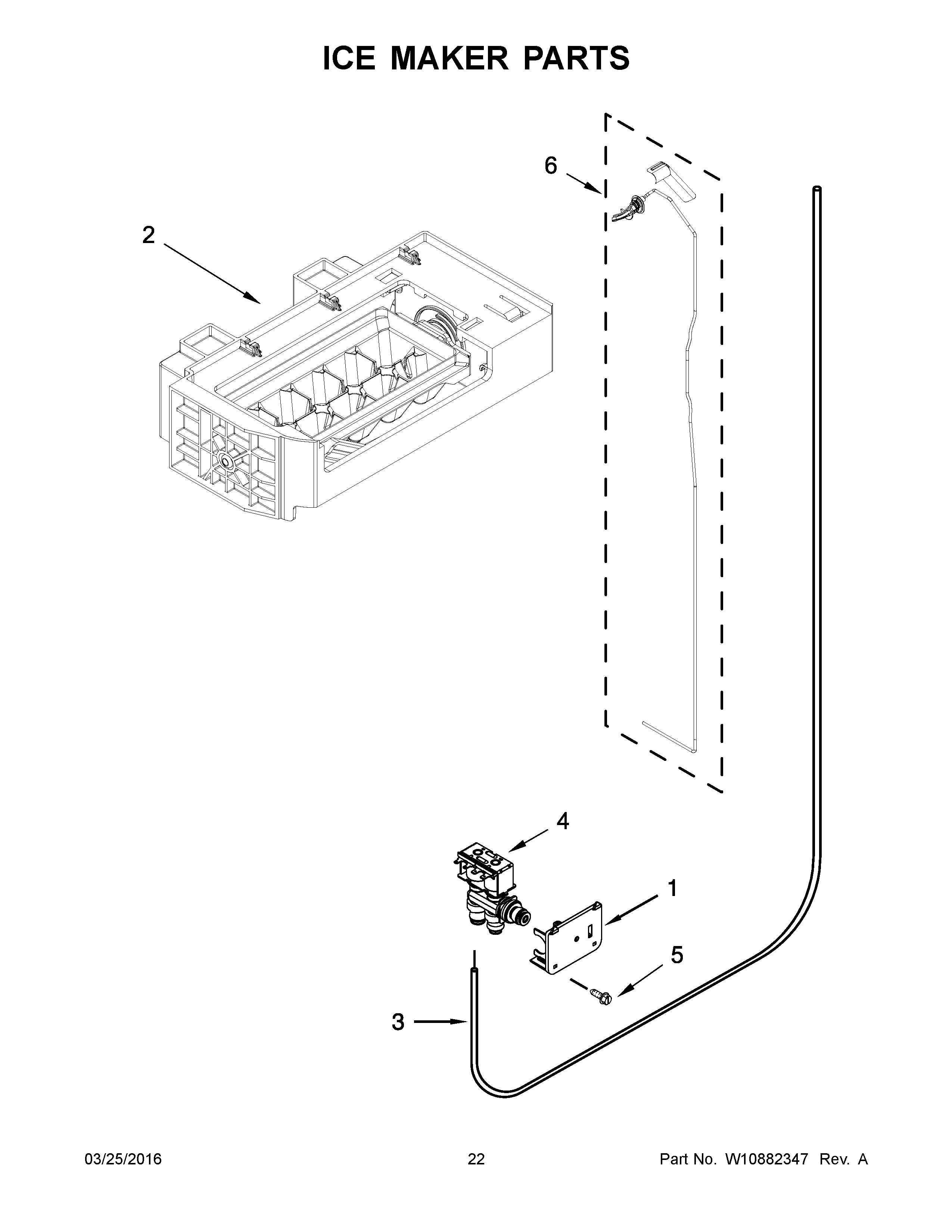

MSB26C6MDH02 12 – ICE MAKER PARTS
Products
| Position | Product |
|---|---|
| 1 | BRACKET, WATER VALVE |
| 2 | MAY W10798411 |
| 3 | MAY W10238092 |
| 4 | WATER VALVE ASSEMBLY |
| 5 | SCREW 8-32 X 1/2 |
| 6 | LINER (NOT A SERVICEABLE PART) |
