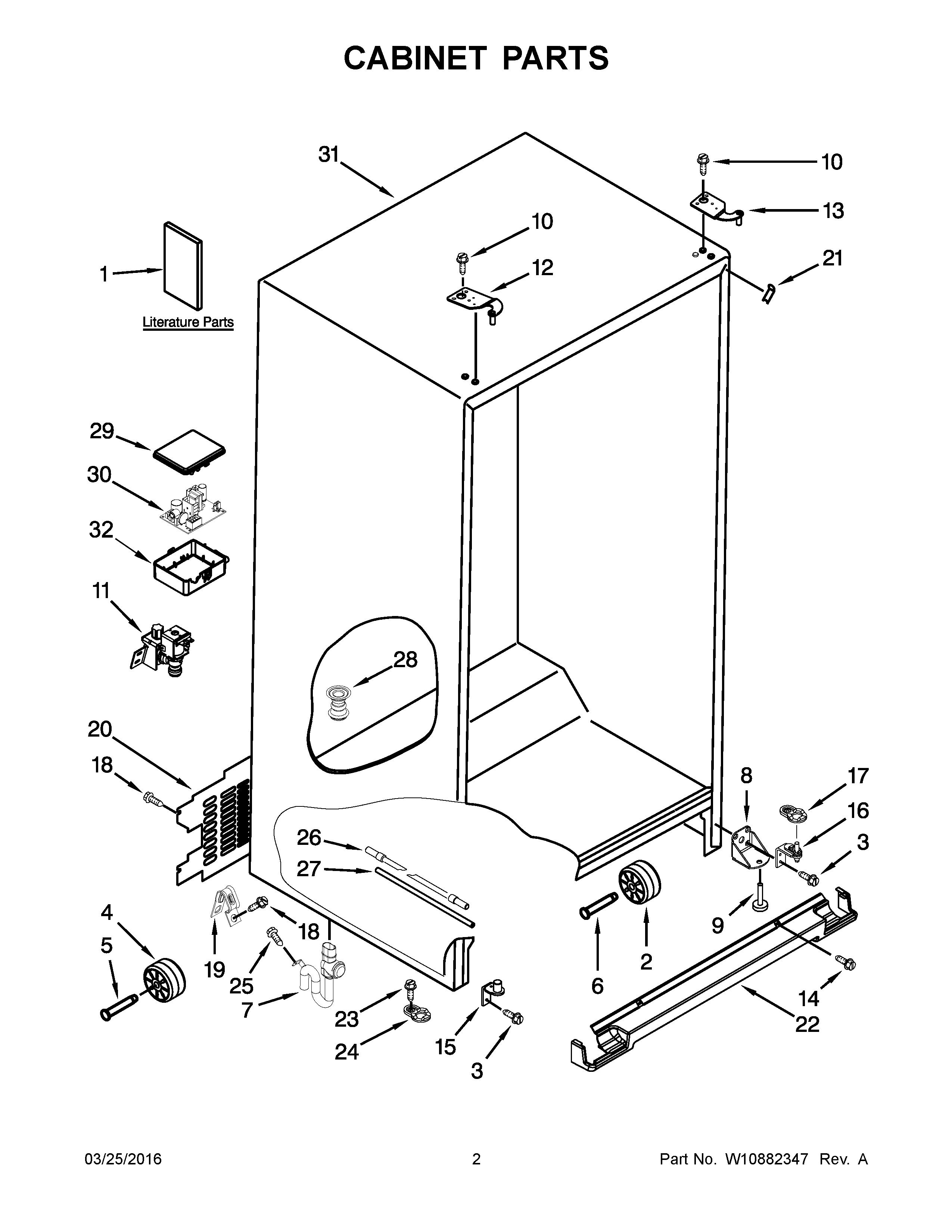

MSB26C6MDM02 02 – CABINET PARTSadmin2025-04-26T13:07:10+00:00MSB26C6MDM02 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10784741 |
| 1A | MAY W10670787 |
| 1B | MAY W10639147 |
| 2 | Roller |
| 3 | MAY W10297485 |
| 4 | Roller (2) |
| 5 | Axle, Roller (2) |
| 6 | MAY 981125 |
| 7 | TUBE, DRAIN |
| 8 | MAY W10257186 |
| 9 | Brake, Foot |
| 10A | SCREW (BLACK) |
| 10 | SCREW (WHITE) |
| 11 | VALVE, INLET |
| 12A | HINGE, TOP (FREEZER) (BLACK) |
| 12B | MAY W10673327 |
| 12 | HINGE, TOP (FREEZER) (WHITE) |
| 13A | HINGE, TOP (REFRIGERATOR) (BLACK) |
| 13B | MAY W10611065 |
| 13 | HINGE, TOP (REFRIGERATOR) (WHITE) |
| 14B | SCREW (GREY) |
| 14 | SCREW (WHITE) |
| 14A | SCREW (BLACK) |
| 15A | MAY W10249941 |
| 15B | BOTTOM HINGE (FC) (GREY) |
| 15 | MAY W10249940 |
| 16A | HINGE, BOTTOM (REFRIGERATOR) (BLACK) |
| 16 | HINGE, BOTTOM (REFRIGERATOR) (WHITE) |
| 16B | MAY W10666895 |
| 17A | MAY W10738914 |
| 17B | MAY W10738911 |
| 17 | MAY W10738913 |
| 18 | MAY W10141645 |
| 19 | MAY 549193 |
| 20 | MAY W10333887 |
| 21B | COVER, CORNER (GREY) |
| 21A | COVER, CORNER (BLACK) |
| 21 | Cover, Corner (2) (White) |
| 22A | MAY W10713158 |
| 22 | MAY W10713160 |
| 22B | MAY W10713153 |
| 23 | MAY W10142234 |
| 24 | MAY W10770896 |
| 24B | MAY W10770893 |
| 24A | MAY W10770895 |
| 25 | MAY W10001250 |
| 26 | MAY W10279882 |
| 27 | MAY W10279884 |
| 28 | MAY W10370680 |
| 29 | LID, HV BOX |
| 30 | MAY W10759661 |
| 31 | LINER (NOT A SERVICEABLE PART) |
| 32 | MAY W10247993 |
