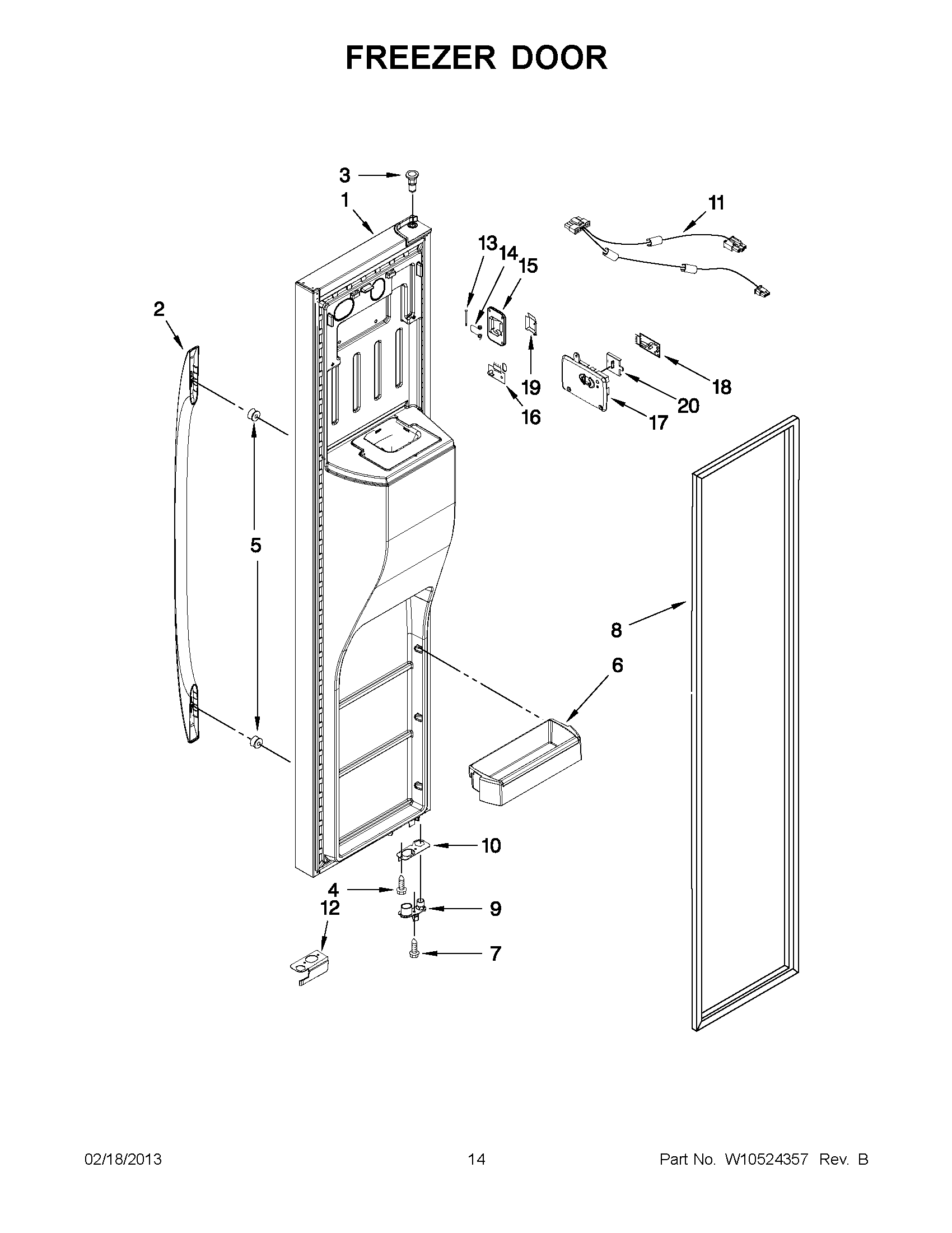

MSB27C2XAB00 07 – FREEZER DOORadmin2025-04-26T13:05:06+00:00MSB27C2XAB00 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | MAY W10397063 |
| 1 | MAY W10369964 |
| 1 | MAY W10369963 |
| 2 | MAY W10439229 |
| 2 | HANDLE, DOOR (WHITE) |
| 2 | MAY W10439132 |
| 3 | THIMBLE, TOP |
| 4 | SCREW |
| 5 | MAY W10460893 |
| 6 | MAY W10308389 |
| 7 | SCREW |
| 8 | MAY W10247885 |
| 8 | DOOR GASKET, MAGNETIC (APOLLO GREY) |
| 8 | MAY W10249913 |
| 9 | MAY W10257204 |
| 9 | MAY W10248015 |
| 9 | DOOR CLOSER, UPPER CAM (GREY) |
| 10 | BRACKET, DOOR STOP (BLACK) |
| 11 | MAY W10411699 |
| 12 | COVER, DOOR STOP (GREY) |
| 12 | MAY W10257221 |
| 12 | MAY W10257220 |
| 13 | MAY W10331749 |
| 14 | SPRING, DOOR |
| 15 | MAY W10258502 |
| 16 | BOARD, EMITTER |
| 17 | MAY W10258510 |
| 18 | P.C. BOARD, RECEIVER |
| 19 | DOOR, EMITTER |
| 20 | MAY W10258540 |
