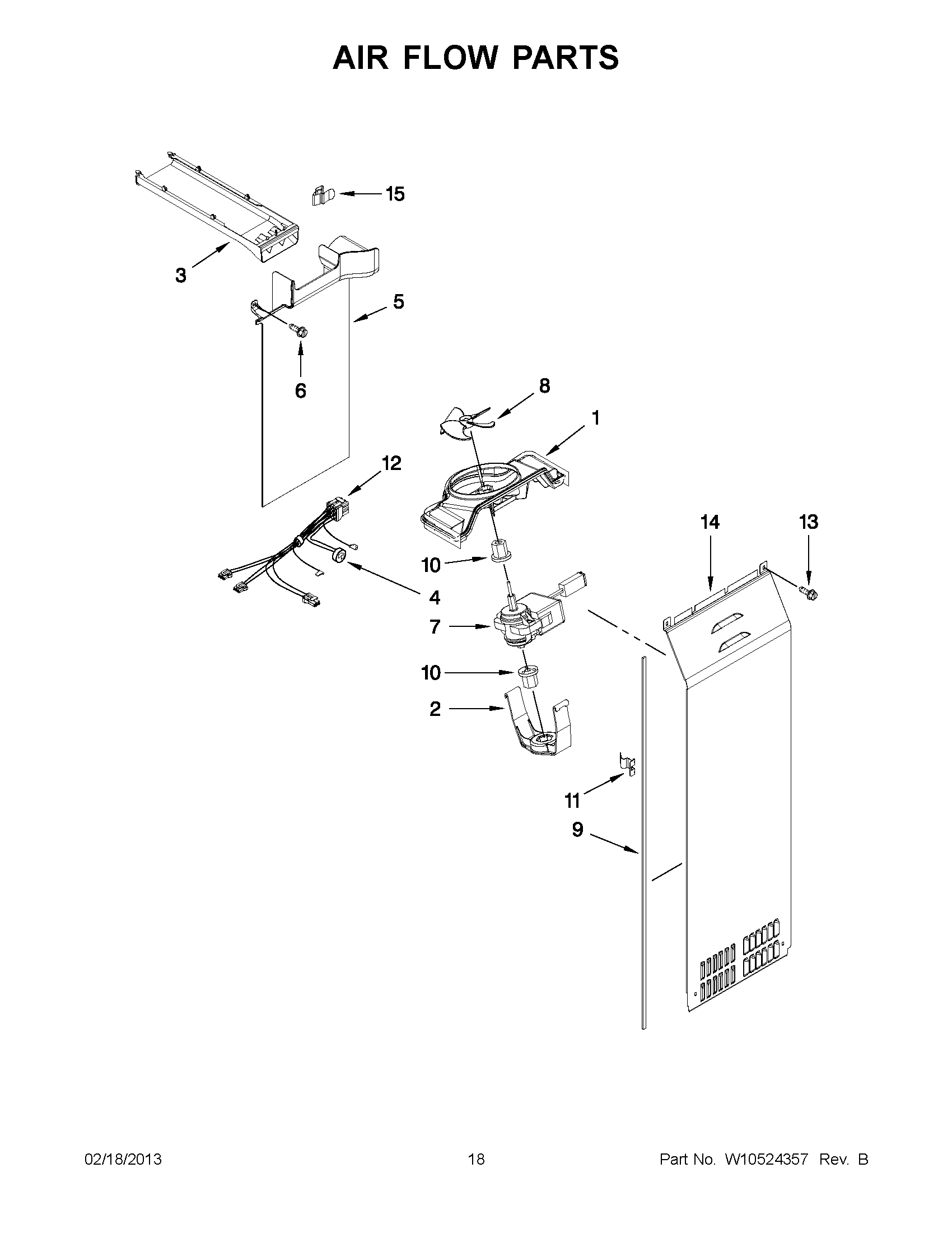

MSB27C2XAB00 09 – AIR FLOW PARTS – Aparts

MSB27C2XAB00 09 – AIR FLOW PARTS

Products

Position	Product
1	MAY W10251462
2	MAY W10260421
3	MAY W10223286
4	MAY W10260437
5	MAY W10260378
6	SCREW, 8 X 1/2
7	MAY 2315549
8	Blade, Fan (Evaporator)
9	MAY W10240370
10	GROMMET, MOTOR
11	MAY W10274578
12	MAY W10242409
13	SCREW
14	COVER, EVAPORATOR
15	MAY W10331728
