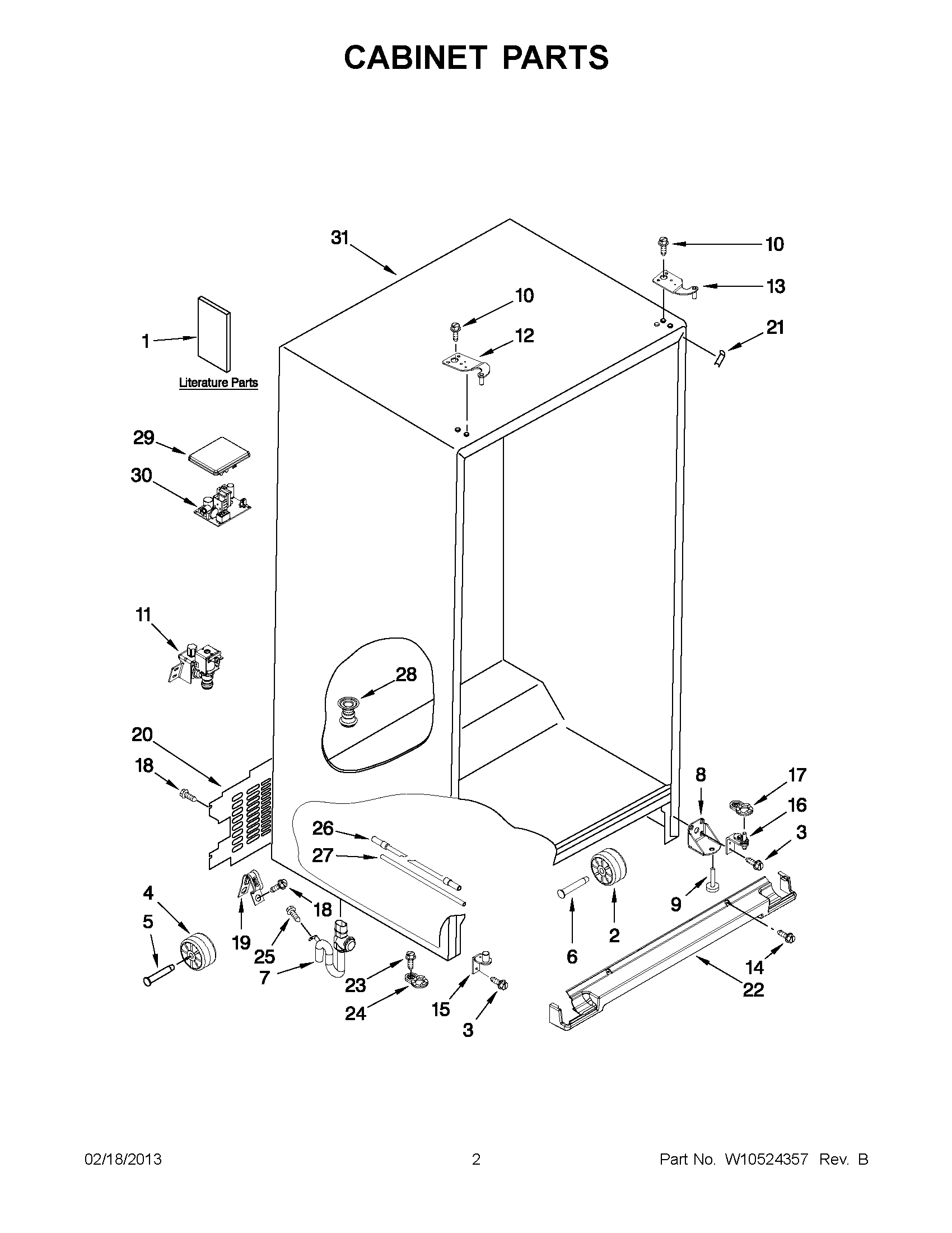

MSB27C2XAM00 01 – CABINET PARTSadmin2025-04-26T13:08:24+00:00MSB27C2XAM00 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10522774 |
| 1 | MAY W10493118 |
| 1 | MAY W10503589 |
| 2 | Roller |
| 3 | MAY W10297485 |
| 4 | Roller (2) |
| 5 | Axle, Roller (2) |
| 6 | MAY W10285005 |
| 8 | MAY W10257186 |
| 9 | Brake, Foot |
| 10 | SCREW (BLACK) |
| 10 | SCREW (WHITE) |
| 11 | MAY W10238100 |
| 12 | MAY W10247899 |
| 12 | MAY W10249920 |
| 12 | HINGE, TOP (FC) (GREY) |
| 13 | MAY W10249923 |
| 13 | HINGE, TOP (RC) (GREY) |
| 13 | MAY W10247901 |
| 14 | SCREW (BLACK) |
| 14 | SCREW (WHITE) |
| 14 | SCREW (GREY) |
| 15 | BOTTOM HINGE (FC) (GREY) |
| 15 | MAY W10249941 |
| 15 | MAY W10249940 |
| 16 | MAY W10257207 |
| 16 | MAY W10257209 |
| 16 | MAY W10257188 |
| 17 | MAY W10257195 |
| 17 | MAY W10247905 |
| 17 | DOOR CLOSER (RC) (APOLLO GREY) |
| 18 | MAY W10141645 |
| 19 | MAY 549193 |
| 20 | MAY W10333887 |
| 21 | COVER, CORNER (BLACK) |
| 21 | COVER, CORNER (GREY) |
| 21 | Cover, Corner (2) (White) |
| 22 | MAY W10511253 |
| 22 | MAY W10511267 |
| 22 | MAY W10511269 |
| 23 | MAY W10142234 |
| 24 | MAY W10257198 |
| 24 | CLOSER, DOOR (FREEZER) (GREY) |
| 24 | MAY W10247903 |
| 25 | MAY W10001250 |
| 26 | MAY W10341322 |
| 27 | MAY W10341324 |
| 28 | TUBE, DRAIN |
| 29 | LID, HV BOX |
| 30 | MAY W10446514 |
| 31 | LINER (NOT A SERVICEABLE PART) |
