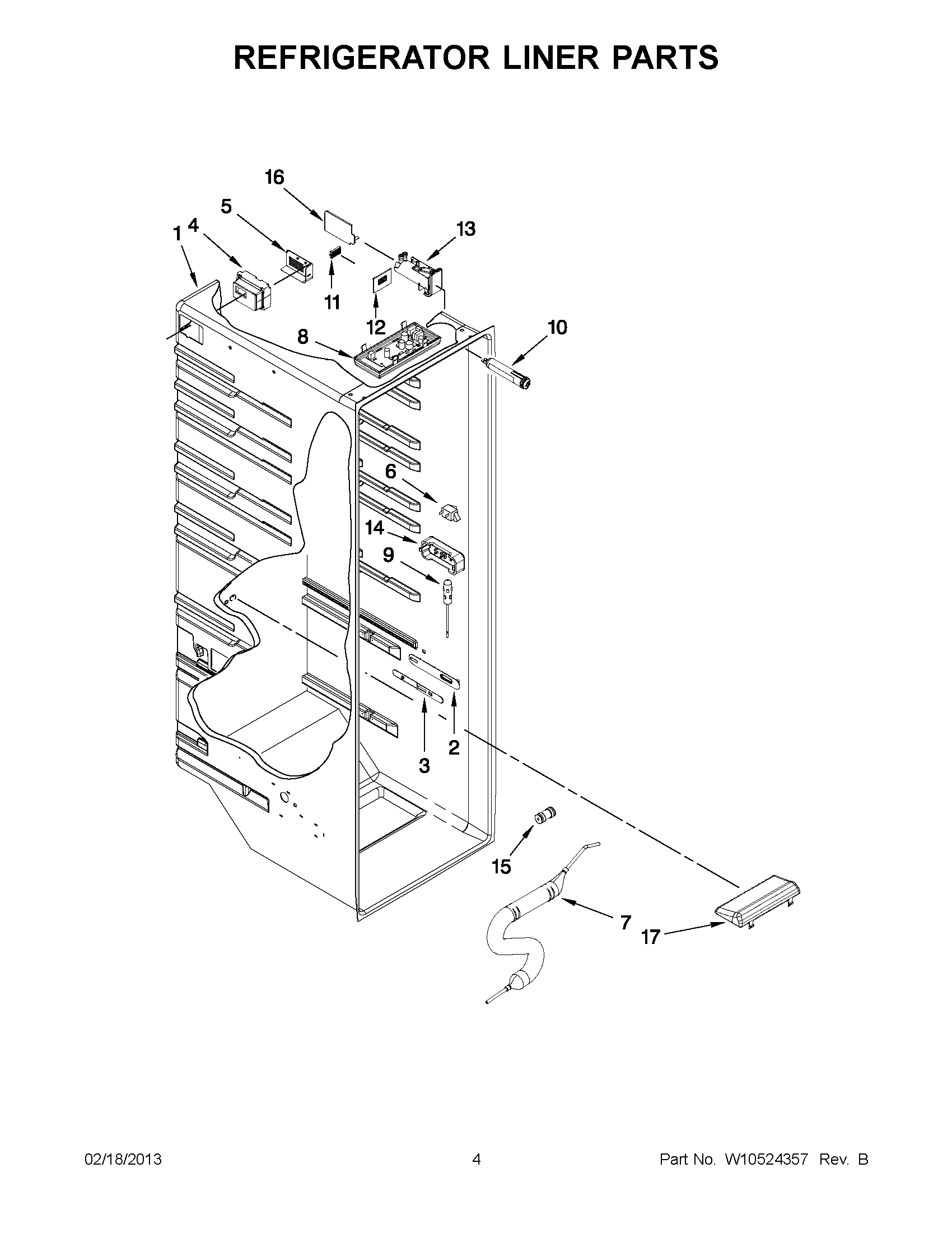

MSB27C2XAM00 02 – REFRIGERATOR LINER PARTS

MSB27C2XAM00 02 – REFRIGERATOR LINER PARTS

Written by

in

MSB27C2XAM00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10260988
3	SLIDE, MEAT PAN CONTRO
4	MAY W10362947
5	MAY W10457601
6	SWITCH, LIGHT
7	MAY W10366790
8	MAY W10522611
9	THERMISTOR
10	MAY W10217316
11	FILTER, AIR
12	MAY W10457603
13	MAY W10394053
14	COVER, THERMISTOR
15	CONNECTOR, WATER TUBE
16	MAY W10300482
17	MAY W10398007
