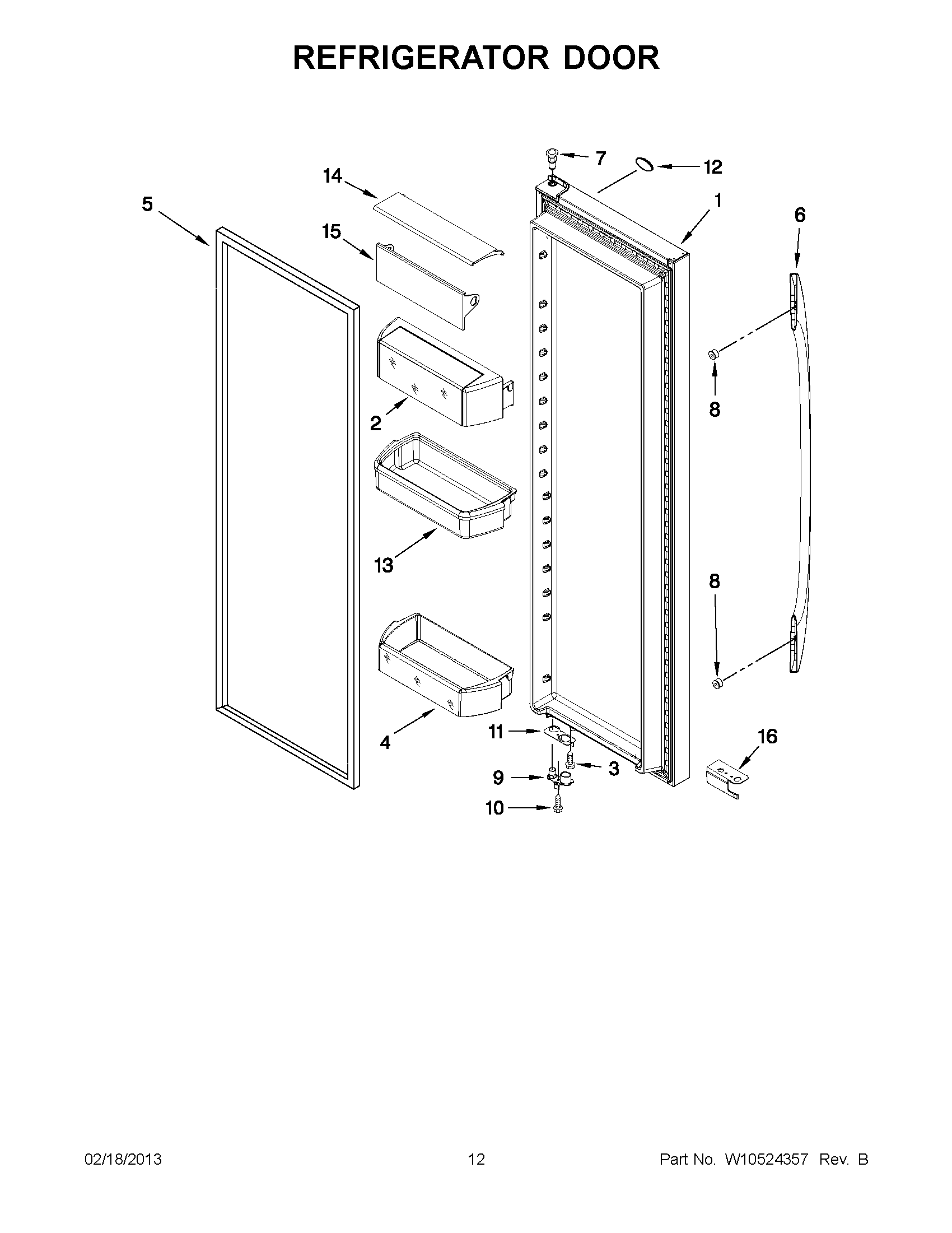

MSB27C2XAM00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	MAY W10397050
1	MAY W10373134
1	MAY W10373135
2	DOOR, COMPARTMENT ASSEMBLY
3	SCREW
4	MAY W10527272
5	DOOR GASKET, MAGNETIC (APOLLO GREY)
5	MAY W10249912
5	MAY W10247884
6	MAY W10439132
6	MAY W10439229
6	HANDLE, DOOR (WHITE)
7	THIMBLE, TOP
8	MAY W10460893
9	MAY W10257201
9	MAY W10248011
9	DOOR CLOSER, UPPER CAM (GREY)
10	SCREW
11	BRACKET, DOOR STOP (BLACK)
12	Nameplate
13	MAY W10308388
14	LID, UTILITY BIN
15	MAY W10316885
16	COVER, DOOR STOP (GREY)
16	MAY W10257216
16	MAY W10248013
