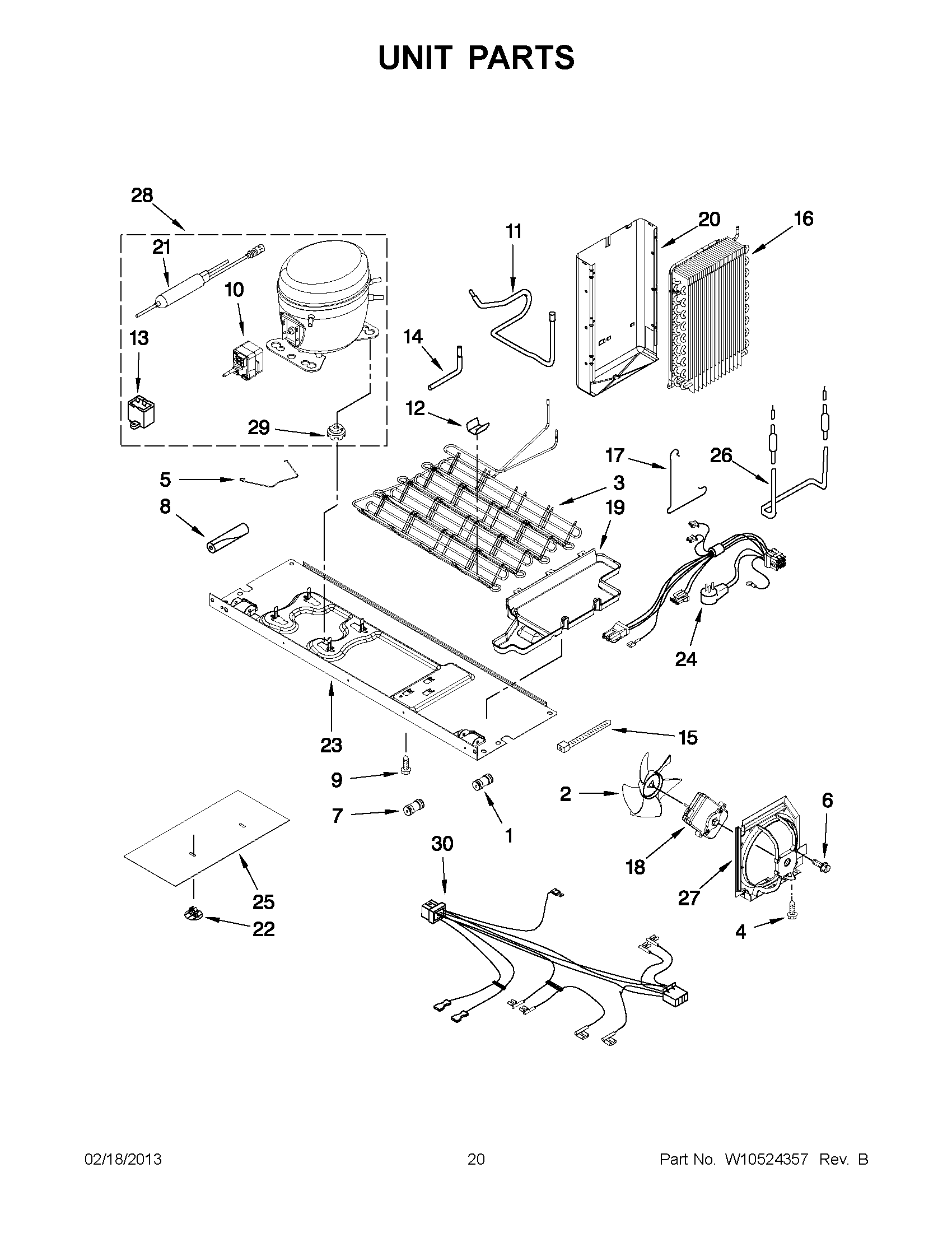

MSB27C2XAM00 10 – UNIT PARTSadmin2025-04-26T13:08:49+00:00MSB27C2XAM00 10 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 2 | Fan, Blade |
| 3 | CONDENSER ASSEMBLY |
| 4 | MAY W10142255 |
| 5 | Clip, Retaining |
| 6 | MAY W10171469 |
| 7 | CONNECTOR, WATER |
| 8 | MAY W10303521 |
| 9 | MAY W10001250 |
| 10 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION) |
| 11 | MAY W10219381 |
| 12 | CLIP, CONDENSER |
| 13 | Capacitator (Production) |
| 14 | MAY 2325479 |
| 15 | TIE, WIRE |
| 16 | MAY 2188822 |
| 17 | Clip |
| 18 | MOTOR, CONDENSOR |
| 19 | MAY W10238584 |
| 20 | MAY W10274575 |
| 21 | Drier |
| 22 | CLIP, BOTTOM COVER |
| 23 | BASEPAN |
| 24 | MAY W10242407 |
| 25 | MAY W10278140 |
| 26 | MAY W10495967 |
| 27 | BAFFLE, AIR |
| 28 | COMPRESSOR (INCLUDES ITEMS 10, 16, 22 & 35) |
| 29 | GROMMET |
| 30 | ASSEMBLY, UNIT WIRE |
