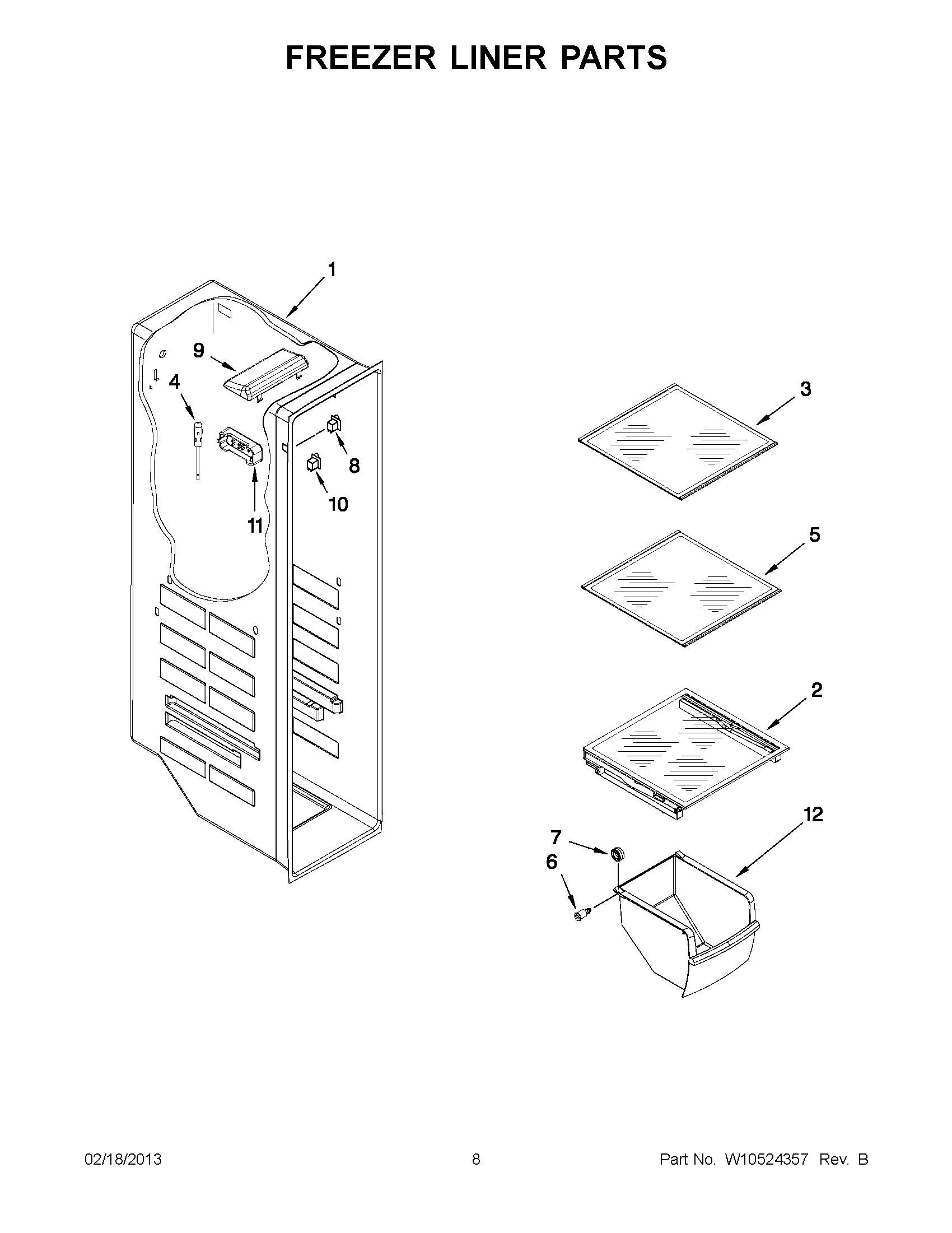

MSB27C2XAW00 04 – FREEZER LINER PARTS

MSB27C2XAW00 04 – FREEZER LINER PARTS

Written by

in

MSB27C2XAW00 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10463654
3MAY W10463643
4MAY W10280386
5MAY W10463645
6MAY W10257246
7MAY W10278139
8SWITCH, ROCKER ARM
9MAY W10398007
10Switch, Rocker Arm
11COVER, THERMISTOR
12PAN, FREEZER ALSO ORDER 7 & 14
