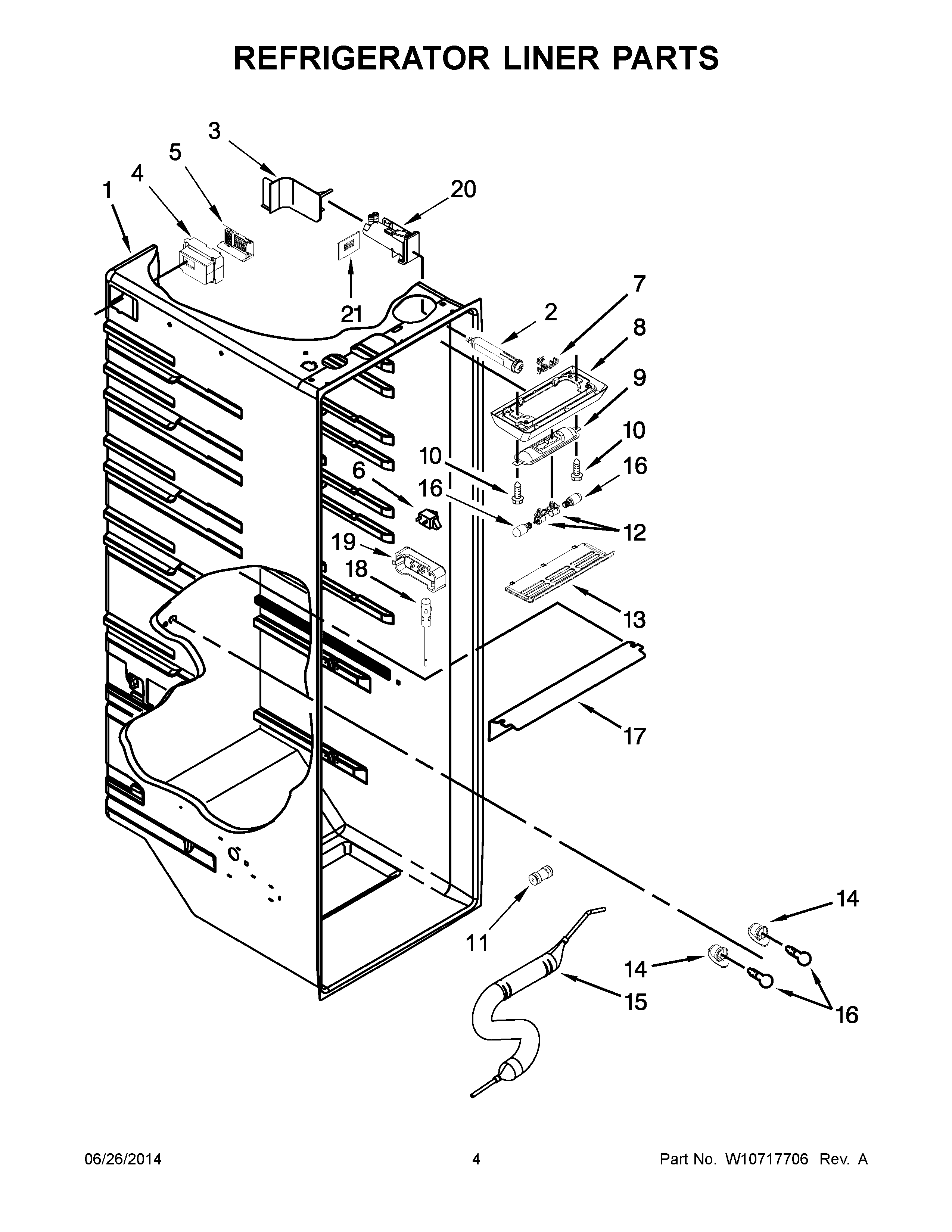

MSC21C6MDM00 03 – REFRIGERATOR LINER PARTS

MSC21C6MDM00 03 – REFRIGERATOR LINER PARTS

Written by

in

MSC21C6MDM00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10569758
3	MAY W10300482
4	AIR DIFFUSER ASSEMBLY
5	MAY W10457601
6	MAY W10656773
7	MAY W10253300
8	MAY W10280178
9	MAY 2223680
10	SCREW 9-12 X 1/2
11	CONNECTOR, WATER TUBE
12	SOCKET, LIGHT
13	MAY W10280420
14	Socket, Light
15	MAY W10366790
16	LAMP, LED
17	MAY W10269099
18	THERMISTOR
19	COVER, THERMISTOR
20	MAY W10394053
21	MAY W10457603
