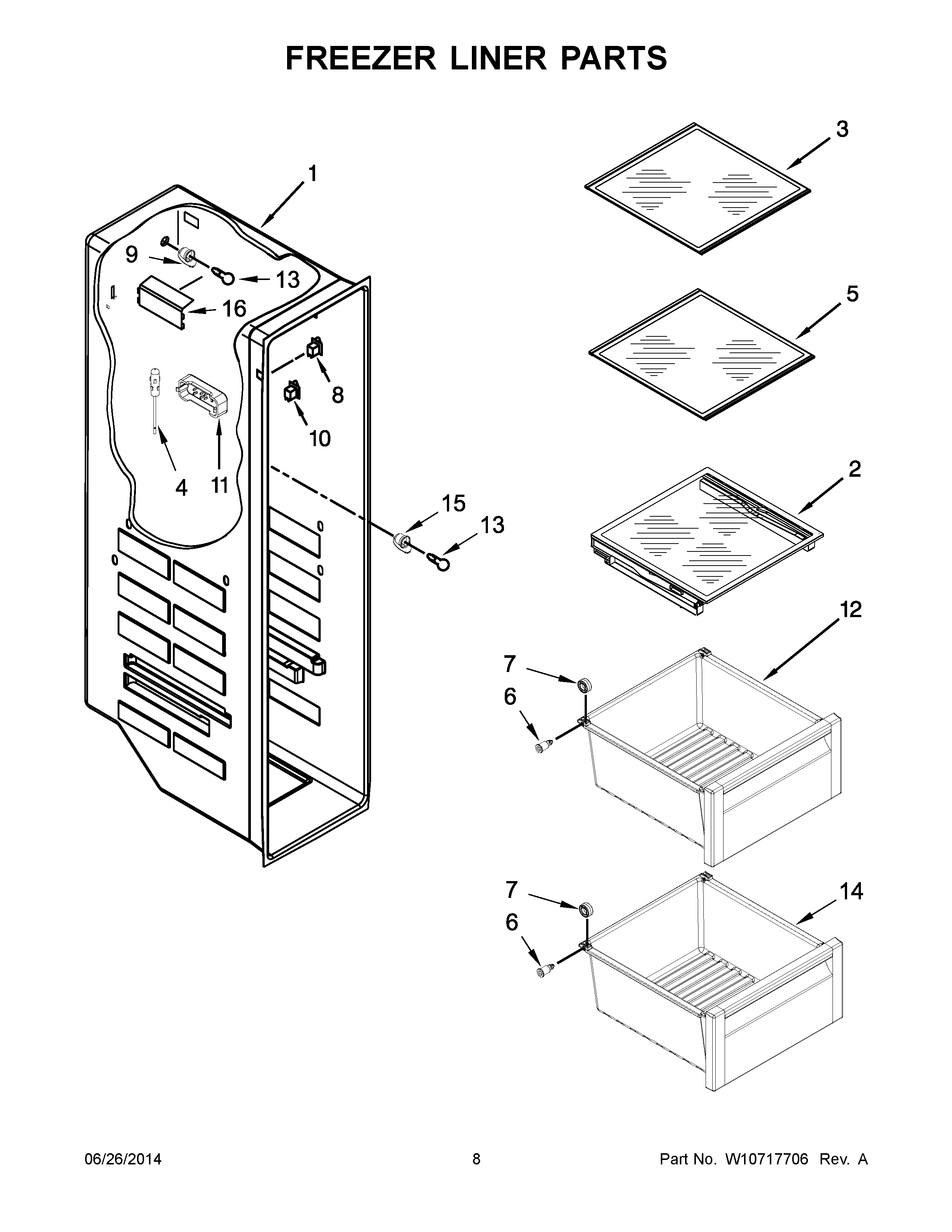

MSC21C6MDM00 05 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2COVER ASSEMBLY
3SHELF ASSEMBLY, UPPER
4MAY W10280386
5SHELF ASSEMBLY, LOWER
6MAY W10257246
7MAY W10278139
8MAY W10656771
9Socket, Light
10MAY W10656772
11COVER, THERMISTOR
12BIN, FREEZER
13MAY W10565137
14BIN, FREEZER
15SOCKET, LIGHT
16LENS
