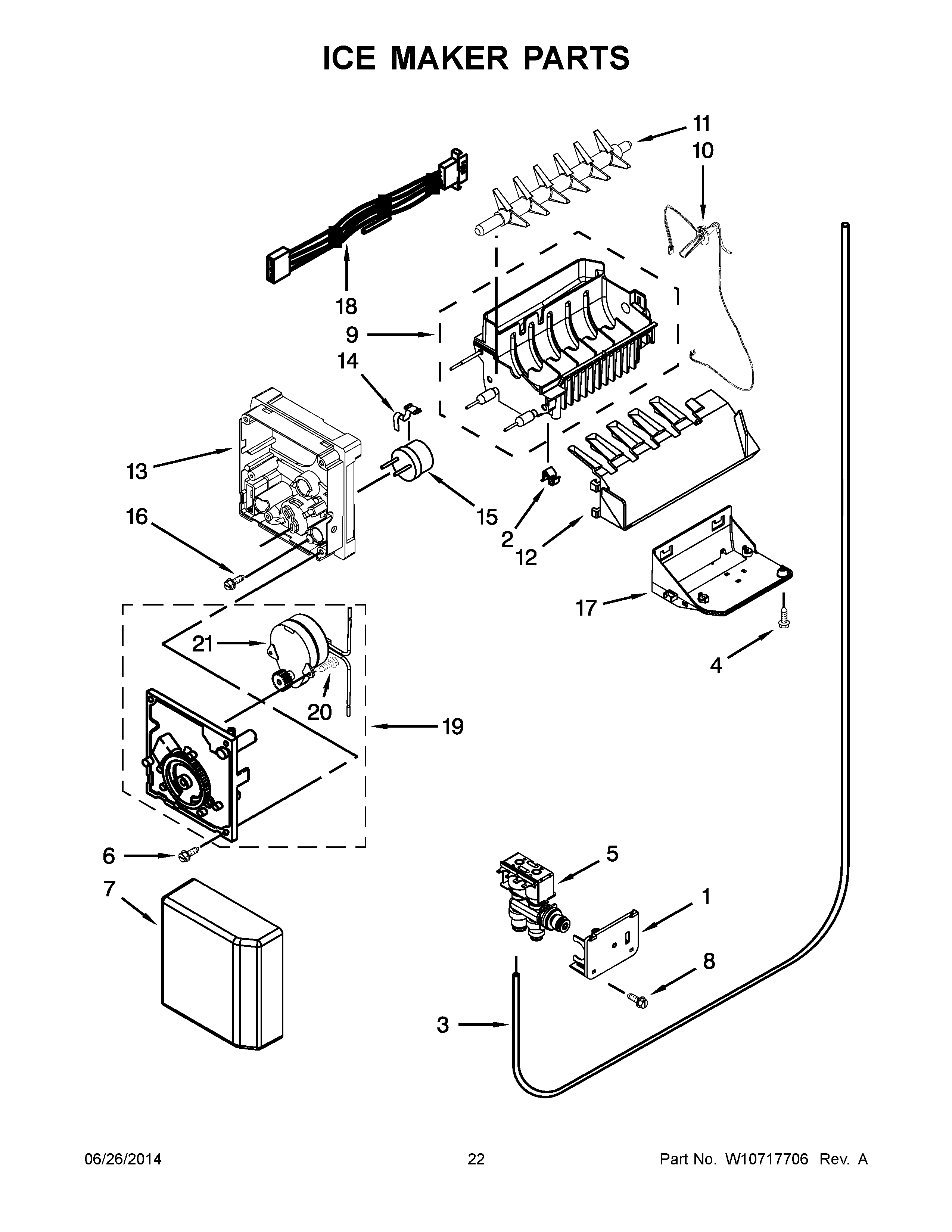

MSC21C6MDM00 12 – ICE MAKER PARTS

Products

PositionProduct
1BRACKET, WATER VALVE
2Clip
3MAY W10691732
4MAY 489478
5WATER VALVE ASSEMBLY
6Screw (3)
7MAY W10251088
8SCREW 8-32 X 1/2
9ASSEMBLY, MOLD AND HEATER (ALSO ORDER No.542638)
10MAY W10347034
11MAY W10318644
12STRIPPER, ICE
13MAY 2194712
14MAY 2315522
15Thermostat (Also Order 542369 Cement)
16Screw (2)
17MAY W10251080
18MAY W10242365
19Module Assembly (Includes Items 23 and 24)
20MAY 489136
21LINER (NOT A SERVICEABLE PART)
100MAY W10122576
