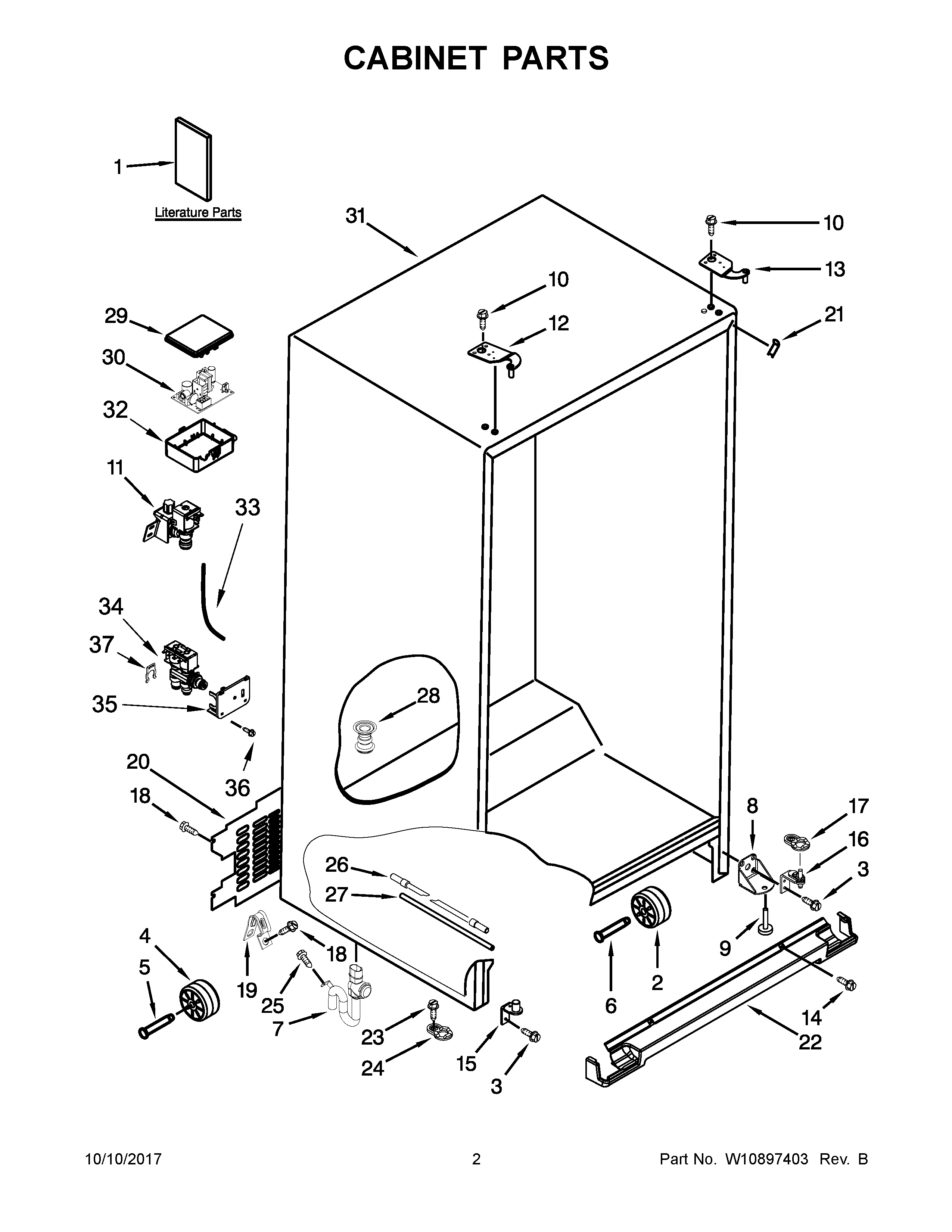

MSC21C6MDM02 02 – CABINET PARTSadmin2025-04-26T13:06:38+00:00MSC21C6MDM02 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1B | MAY W11098935 |
| 1A | MAY W10670787 |
| 1 | MAY W10784741 |
| 2 | Roller |
| 3 | MAY W10297485 |
| 4 | Roller (2) |
| 5 | Axle, Roller (2) |
| 6 | MAY 981125 |
| 7 | TUBE, DRAIN |
| 8 | BRACKET, FOOT |
| 9 | Brake, Foot |
| 10 | SCREW (BLACK) |
| 11 | VALVE, INLET |
| 12 | MAY W10901054 |
| 13 | MAY W10901049 |
| 14 | SCREW (GREY) |
| 15 | HINGE, BOTTOM (FREEZER) (GREY) |
| 16 | MAY W11084346 |
| 17 | MAY W10738911 |
| 18 | MAY W10141645 |
| 19 | MAY 549193 |
| 20 | MAY W10333887 |
| 21 | COVER, CORNER (GREY) |
| 22 | MAY W10713153 |
| 23 | MAY W10142234 |
| 24 | MAY W10770893 |
| 25 | MAY W10001250 |
| 26 | MAY W10279882 |
| 27 | MAY W10279884 |
| 28 | MAY W10370680 |
| 29 | LID, HV BOX |
| 30 | CONTROL, ELECTRONIC |
| 31 | LINER (NOT A SERVICEABLE PART) |
| 32 | MAY W10247993 |
| 33 | MAY W10691732 |
| 34 | WATER VALVE ASSEMBLY |
| 35 | BRACKET, WATER VALVE |
| 36 | SCREW 8-32 X 1/2 |
| 37 | LOCKING RING (1/4) |
| 37A | LOCKING RING (5/16) |
