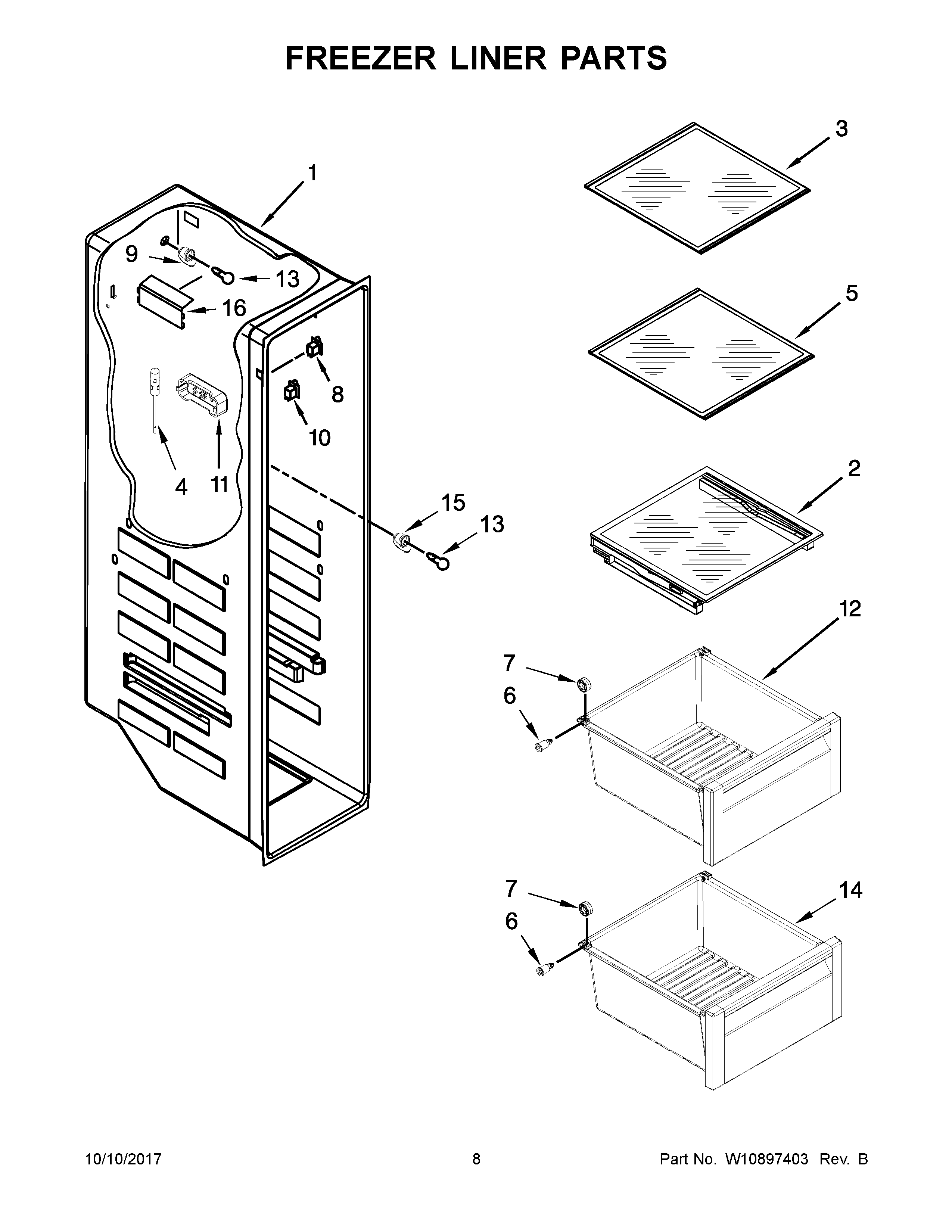

MSC21C6MDM02 05 – FREEZER LINER PARTS

MSC21C6MDM02 05 – FREEZER LINER PARTS

Written by

in

MSC21C6MDM02 05 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	COVER ASSEMBLY
3	SHELF ASSEMBLY, UPPER
4	MAY W10280386
5	SHELF ASSEMBLY, LOWER
6	AXLE, ROLLER
7	ROLLER, PAN
8	MAY W10656771
9	Socket, Light
10	MAY W10656772
11	COVER, THERMISTOR
12	BIN, FREEZER
13	MAY W10820003
14	BIN, FREEZER
15	SOCKET, LIGHT
16	LENS
