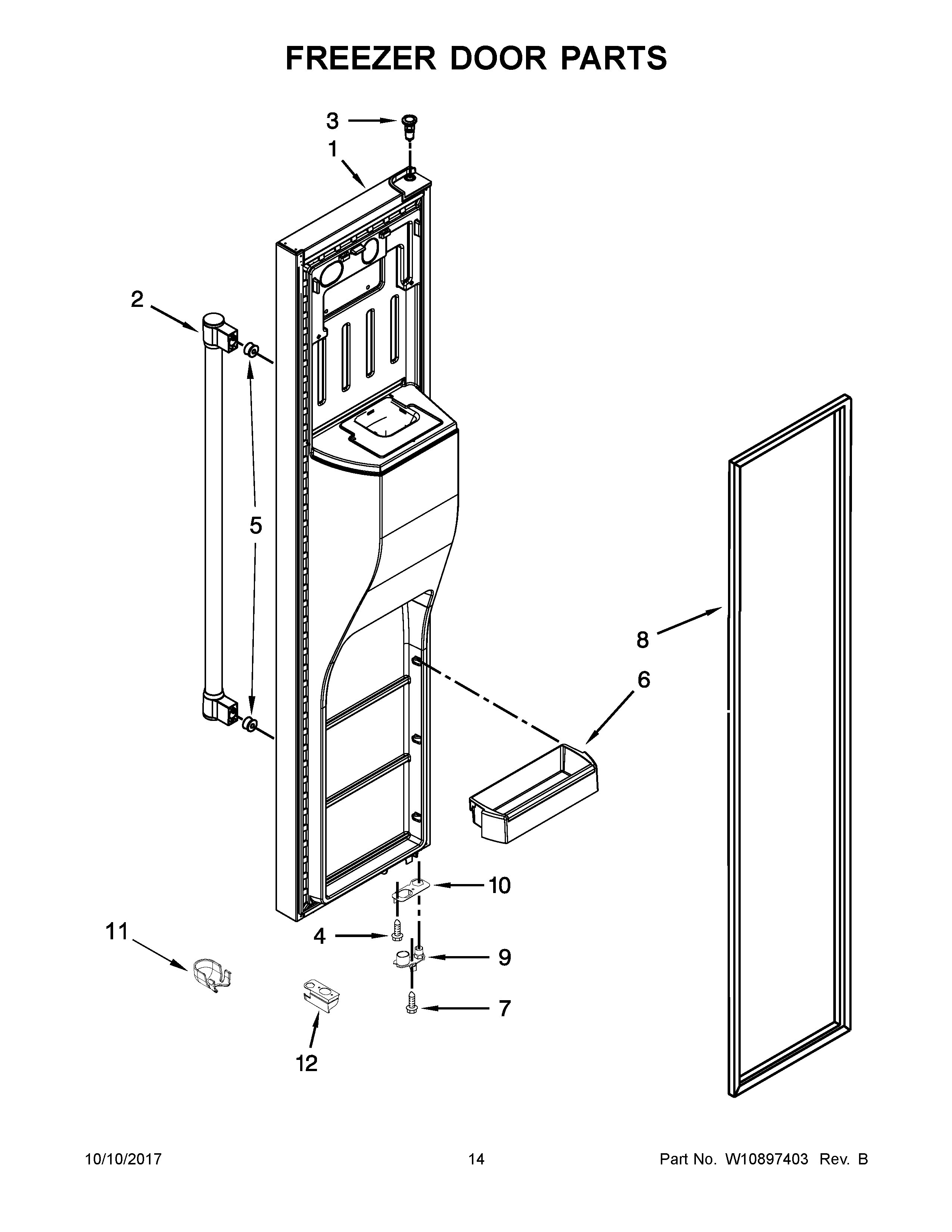

MSC21C6MDM02 08 – FREEZER DOOR PARTS

Written by

Products

Position	Product
1	MAY W10784781
2	ASSEMBLY, HANDLE (STAINLESS)
3	THIMBLE, TOP
4	SCREW
5	MAY W10460893
6	MAY W10646629
7	SCREW
8	DOOR GASKET, MAGNETIC (APOLLO GREY)
9	DOOR CLOSER, UPPER CAM (GREY)
10	BRACKET, DOOR STOP (BLACK)
11	MAY W10323148
12	MAY W10632062
