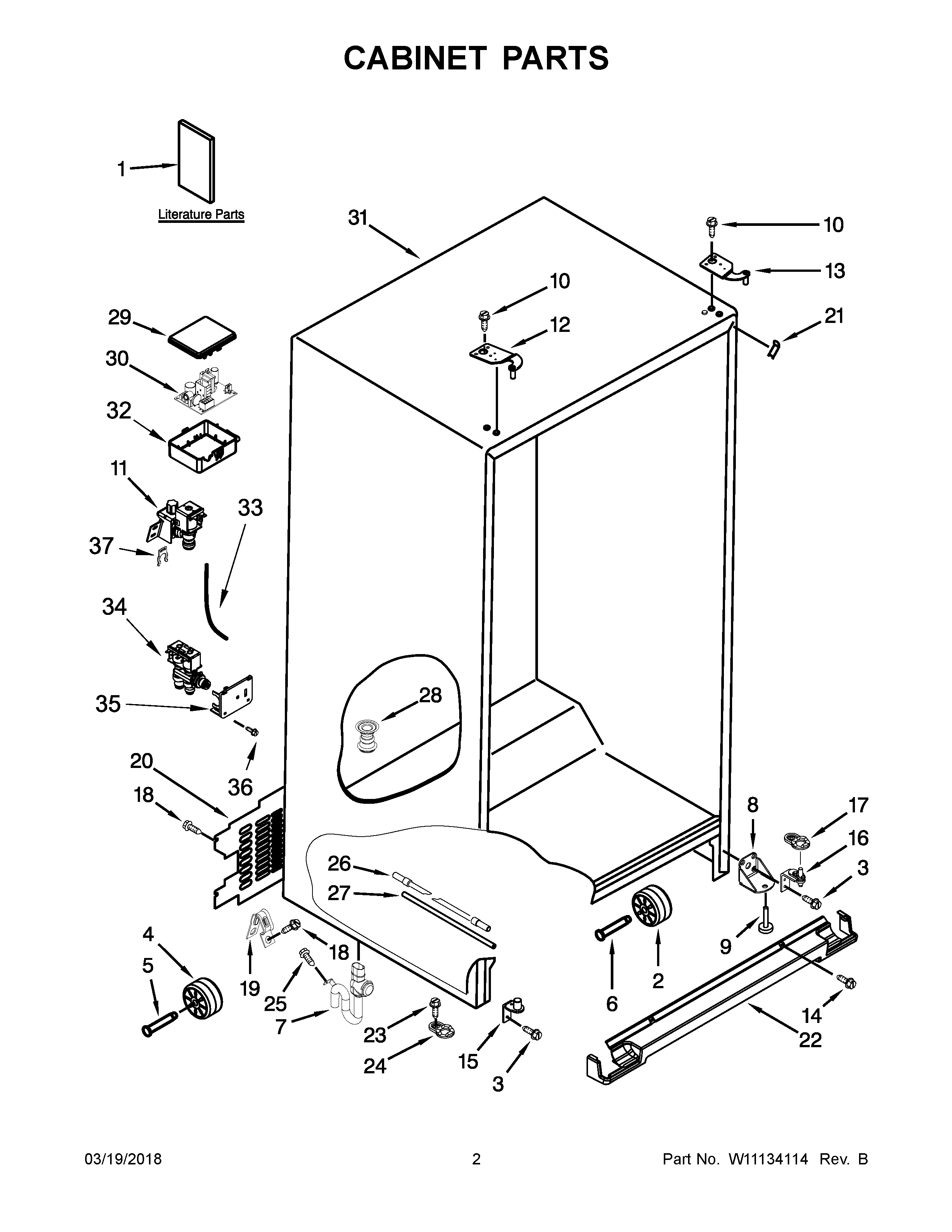

MSC21C6MFZ00 02 – CABINET PARTS

MSC21C6MFZ00 02 – CABINET PARTS

Written by

in

MSC21C6MFZ00 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10922029
1	MAY W10853485
1A	MAY W10670787
2	Roller
3	MAY W10297485
4	Roller (2)
5	Axle, Roller (2)
6	MAY 981125
7	TUBE, DRAIN
8	BRACKET, FOOT
9	Brake, Foot
10	SCREW (BLACK)
11	VALVE, INLET
12	MAY W10901054
13	MAY W10901049
14	SCREW (GREY)
15	HINGE, BOTTOM (FREEZER) (GREY)
16	MAY W11084346
17	MAY W10738911
18	MAY W10141645
19	MAY 549193
20	COVER, UNIT
21	COVER, CORNER (GREY)
22	MAY W10713153
23	MAY W10142234
24	MAY W10770893
25	MAY W10001250
26	MAY W10279882
27	MAY W10279884
28	MAY W10370680
29	LID, HV BOX
30	CONTROL, ELECTRONIC
31	LINER (NOT A SERVICEABLE PART)
32	MAY W10247993
33	MAY W10691732
34	WATER VALVE ASSEMBLY
35	BRACKET, WATER VALVE
36	SCREW 8-32 X 1/2
37A	LOCKING RING (5/16)
37	LOCKING RING (1/4)
