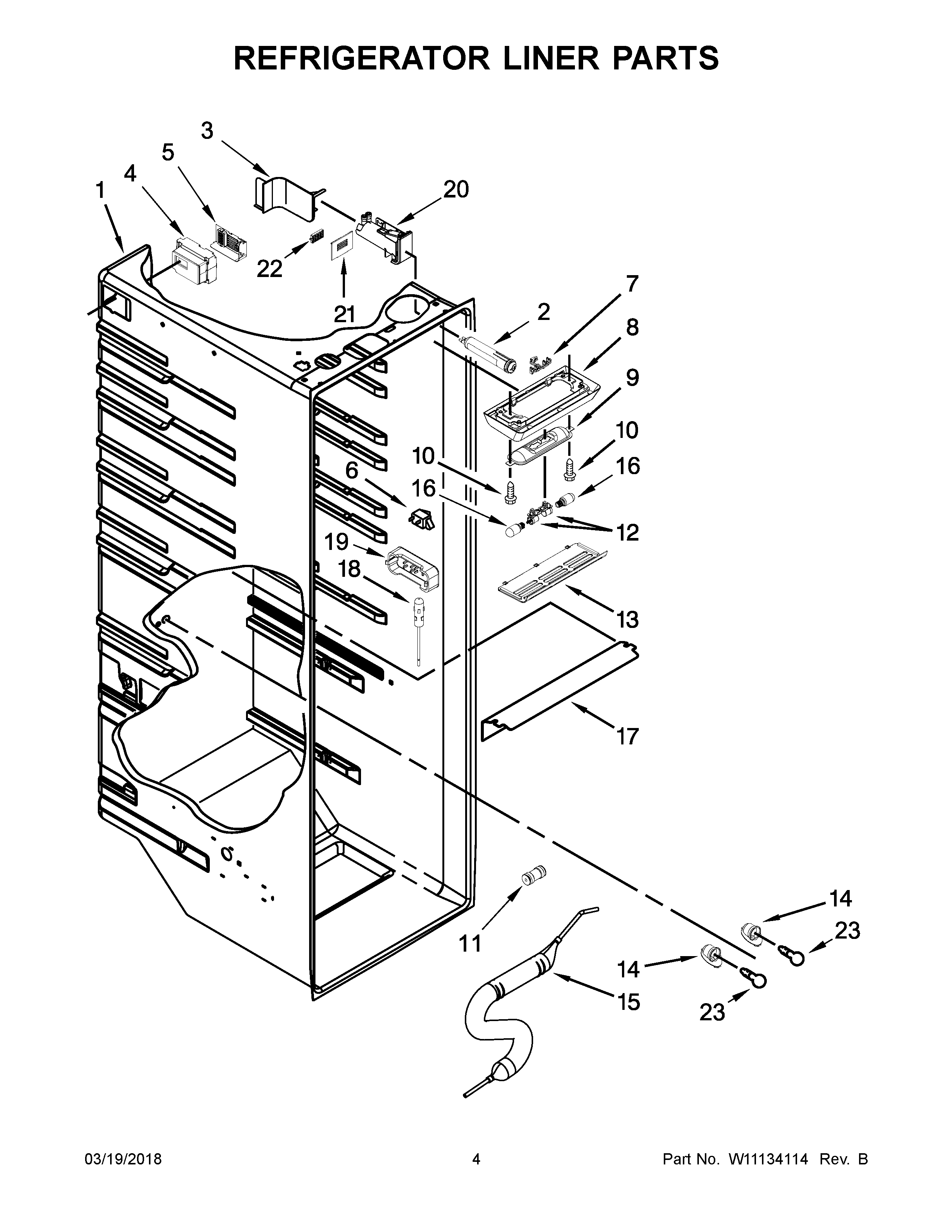

MSC21C6MFZ00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10569758
3MAY W10300482
4ASSEMBLY, AIR DIFFUSER
5MAY W10457601
6MAY W10656773
7MAY W10253300
8MAY W10280178
9MAY 2223680
10SCREW 9-12 X 1/2
11CONNECTOR, WATER TUBE
12SOCKET, LIGHT
13MAY W10280420
14Socket, Light
15MAY W10366790
16LAMP, LED
17MAY W10269099
18THERMISTOR
19COVER, THERMISTOR
20MAY W10394053
21MAY W10457603
22FILTER, AIR
23LAMP, LED
