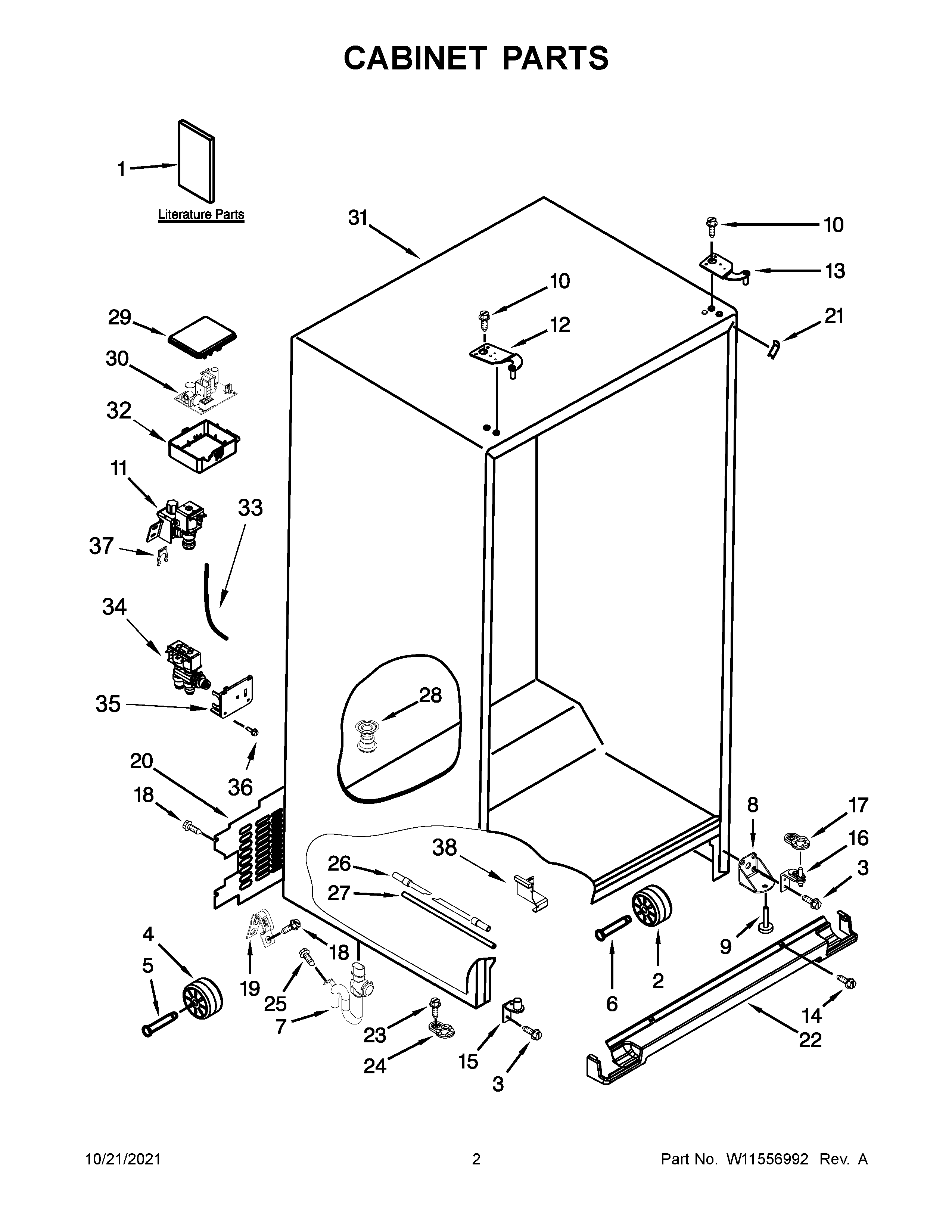

MSC21C6MFZ05 02 – CABINET PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1A	TECH SHEET
1B	ENERGY GUIDE
2	WPW10475495 Whirlpool Roller Assembly
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	W11208384 Whirlpool Refrigerator Rivet
7	W11293072 Whirlpool Refrigerator Extension
8	W11266052 Whirlpool Refrigerator Bracket
9	WPW10141622 Whirlpool Leveler
10	WPW10308751 Whirlpool Screw
11	W11512399 Whirlpool Refrigerator Inlet Valve
12	W11590581 Whirlpool Refrigerator Door Hinge
13	HINGE-DOOR
14	WPW10308489 Whirlpool Refrigerator Screw
15	W11293374 Whirlpool Refrigerator Door Hinge
16	W11292872 Whirlpool Refrigerator Door Hinge
17	W11311687 Whirlpool Closing Cam
18	SCREW
19	W11234470 Whirlpool Refrigerator Clamp
20	W11453073 Whirlpool Unit Cover
21	WP12587703AP Whirlpool Refrigerator Filler
22	WPW10713153 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24	W10876191 Whirlpool Refrigerator Door Cam
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10279882 Whirlpool Water Line
27	WPW10279884 Whirlpool Water Tube
28	W10370680 Whirlpool Refrigerator Fitting
29	LID, HV BOX
30	W11558184 Whirlpool Refrigerator Electronic Control Board + Core
31	CABINET (NOT A SERVICEABLE PART)
32	WPW10247993 Whirlpool Refrigerator Control Box
33	WPW10238092 Whirlpool Refrigerator Water Tube
34	VALVE-INLT REFR
35	W10847867 Whirlpool Refrigerator Bracket
36	WPW10141625 Whirlpool Refrigerator Screw Assembly
37	W11676611 Whirlpool Ring
37A	W11678575 Whirlpool Ring
38	W10499011 Whirlpool Refrigerator Bracket
