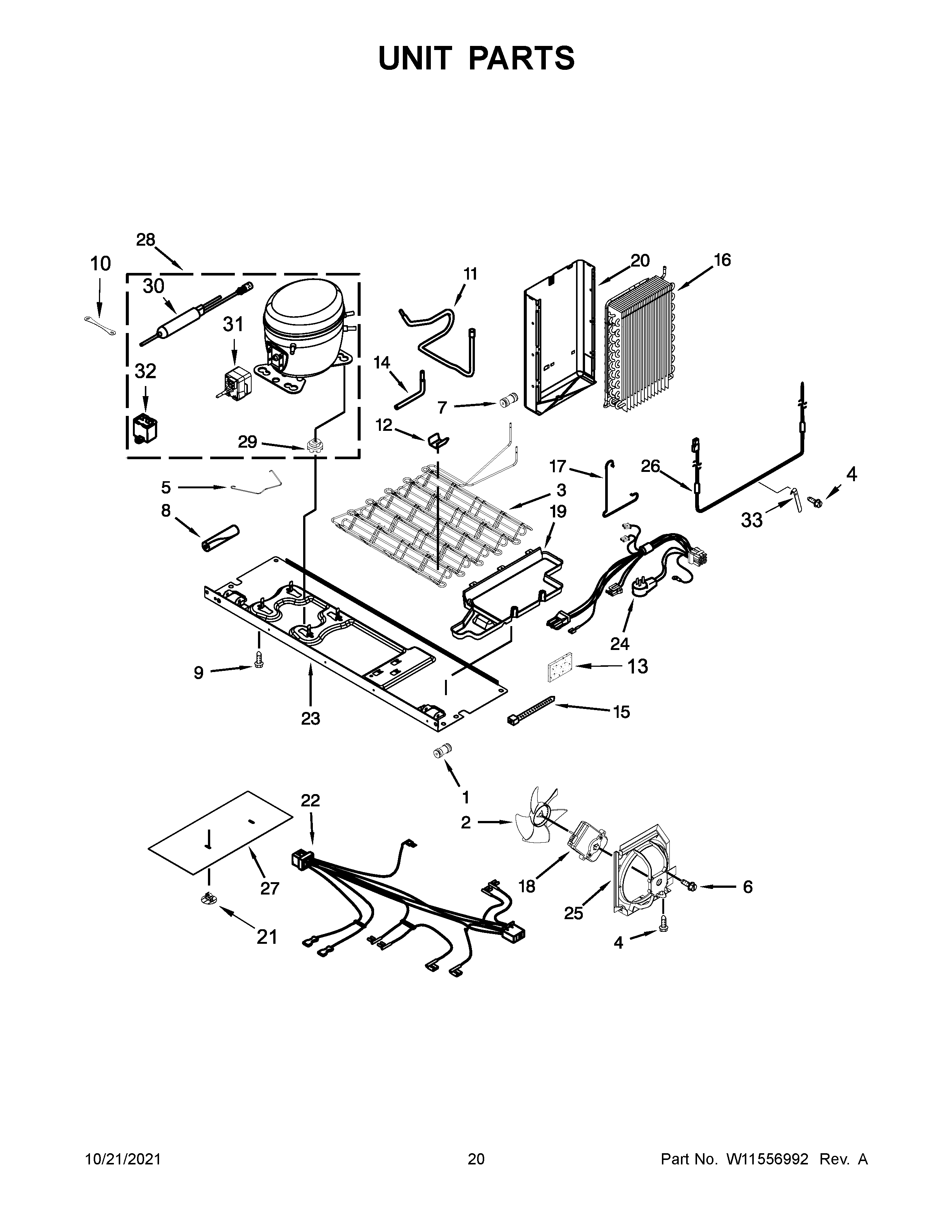

MSC21C6MFZ05 11 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	WP2300868 Whirlpool Refrigerator Fitting
2	W11458267 Whirlpool Refrigerator Fan Blade
3B	W11504445 Whirlpool Refrigerator Coupler
3	W11708426 Whirlpool Condenser Assembly
3A	W11506623 Whirlpool Refrigerator Coupler
4	W10142255 Whirlpool Screw
5	W11661170 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10277958 Whirlpool Refrigerator Fitting
8	SLEEVE
9	BOLT
11	W11506459 Whirlpool Tube
12	W10683556 Whirlpool Refrigerator Clip
13	W11553819 Whirlpool Refrigerator Insulation
14	W11566476 Whirlpool Tube
15	WPW10339879 Whirlpool Wire Tie
16B	W11506620 Whirlpool Refrigerator Coupler
16	W11546605 Whirlpool Refrigerator Evaporator
16A	W11504448 Whirlpool Refrigerator Coupler
17	Clamp
18	W11127829 Whirlpool Refrigerator Condenser Motor
19	W10714793 Whirlpool Refrigerator Evaporator Tray
20	SHIELD, HEAT
21	W10815861 Whirlpool Refrigerator Clip
22	W11676780 Whirlpool Refrigerator Wire Harness
23	W10680691 Whirlpool Refrigerator Support Assembly
24	WPW10242407 Whirlpool Refrigerator Power Cord
25	WPW10251467 Whirlpool Refrigerator Air Baffle
26	W11566485 Whirlpool Heater
27	UNIT COVER, BOTTOM
28C	COUPLER
28B	W11504431 Whirlpool Microwave Coupler
28	COMPRESSOR
28A	W11504415 Whirlpool Refrigerator Coupler
29	WPW10169124 Whirlpool Refrigerator Grommet
30B	W11504447 Whirlpool Refrigerator Coupler
30	W11109499 Whirlpool Refrigerator Tube
30A	W11504433 Whirlpool Refrigerator Coupler
31	WPW10197428 Whirlpool Start Device
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	W11566486 Whirlpool Heat Probe
