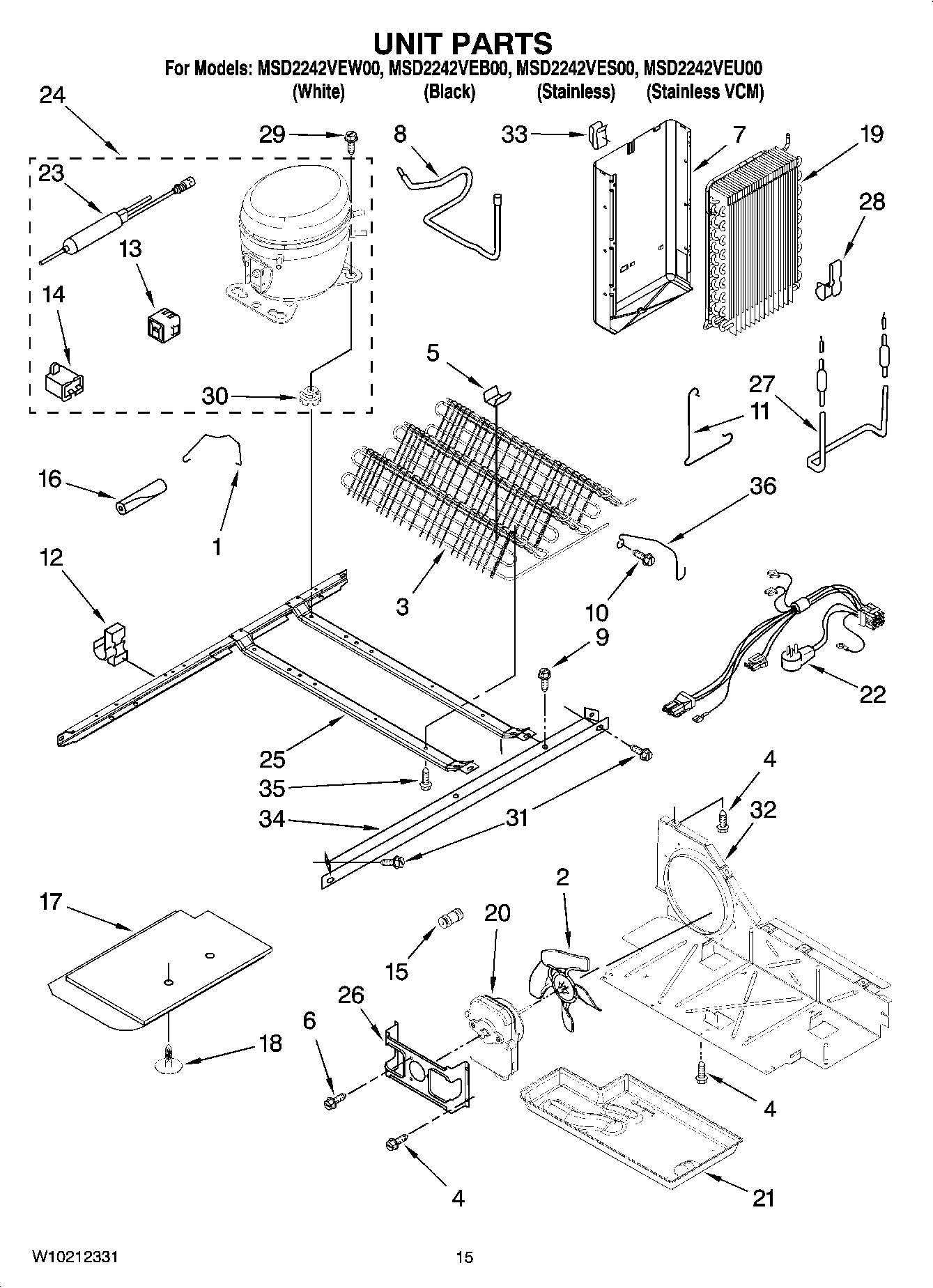

MSD2242VEB00 09 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2``)
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
1	BALE STRAP
2	Fan, Blade
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	MAY 2216914
6	MAY 8533993
7	MAY 2217195
8	MAY 2220642
9	MAY 489427
10	MAY 489478
11	Clip
12	Clip, Wire
13	Start-Device, Combination (Start Relay and Overload) (Production)
14	CAPACITOR
14	CAPACITOR
15	Connector, Water
16	Sleeve, Pressure Switch Hose
17	UNIT COVER BOTTOM
18	MAY 489396
19	MAY 2188822
20	MOTOR, CONDENSOR
21	MAY 1105523
22	Unit, Harness
23	MAY 2319825
23	Drier
24	Compressor (Includes Items 13, 14, 23, & 30)
25	Frame, Unit Mounting
26	MAY 2181929
27	MAY 2188174
28	MAY 2304287
29	MAY 489373
30	MAY 2183042
30	Grommet (Production)
31	MAY 489340
32	MAY 2196202
33	MAY 2155547
34	MAY 2305374
35	MAY 8281232
36	MAY 2260516
