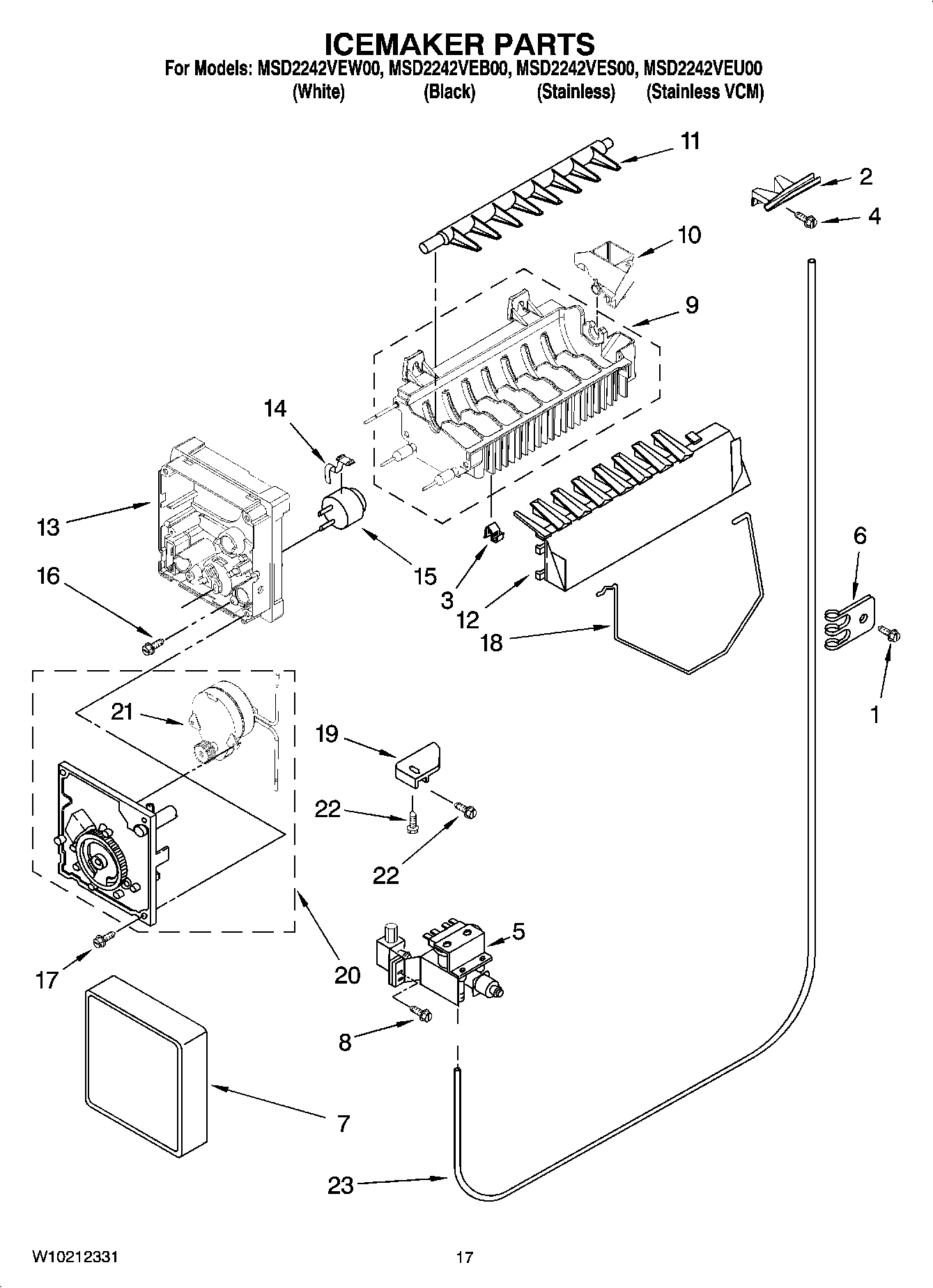

MSD2242VEB00 10 – ICEMAKER PARTS

Products

Position	Product
1	MAY 489084
2	MAY 2209774
3	Clip
5	MAY 2188708
6	Clip, Tube
7	MAY 2174155
8	MAY 488649
9	MAY W10122527
10	Cup-Water Fill
11	MAY 627843
12	Ice Striper
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	MAY 489276
18	MAY 2304354
19	MAY 628320
20	Module Assembly (Includes Items 23 and 24)
22	MAY 489478
23	MAY 2304859
100	MAY W10190966
