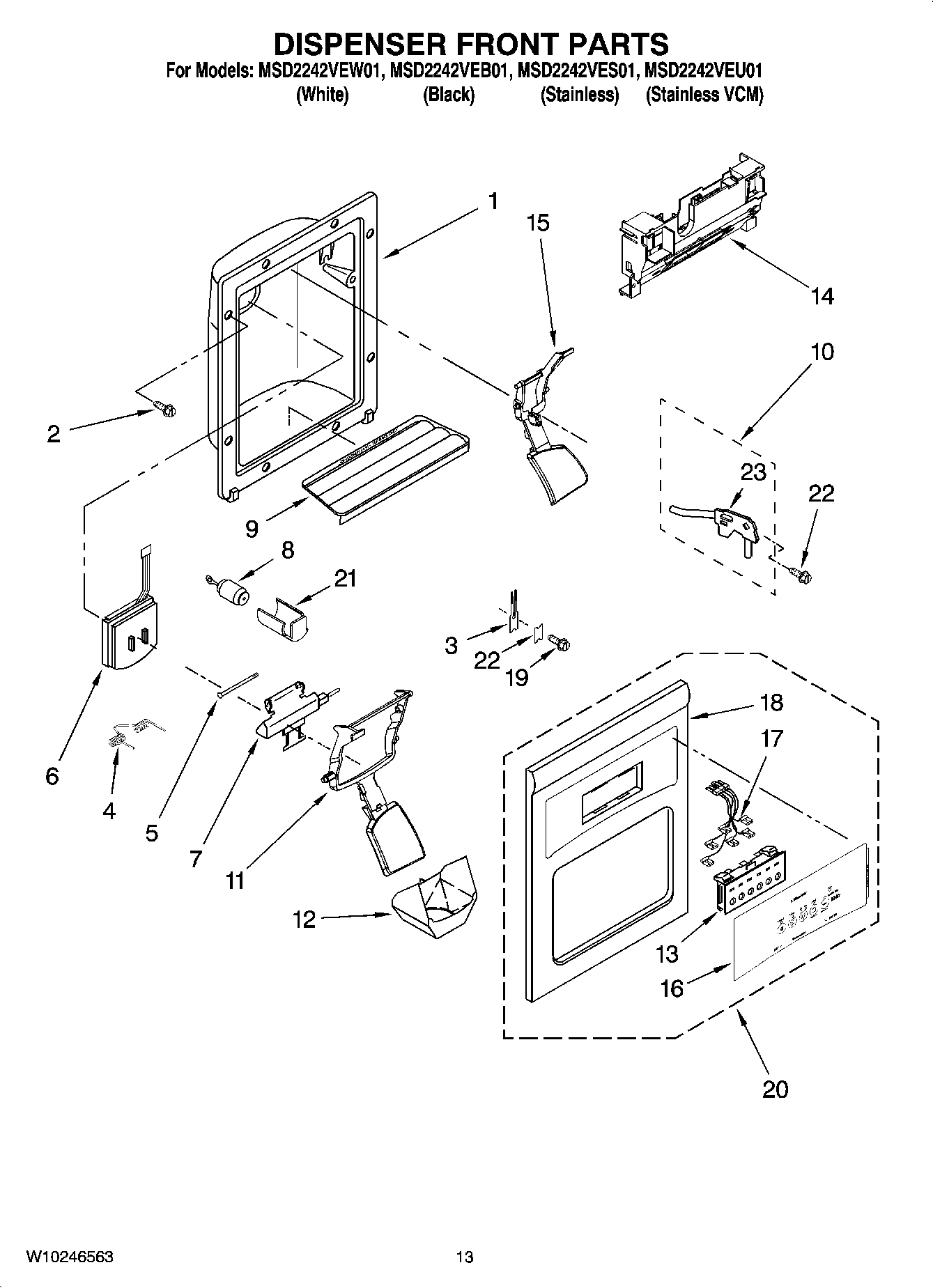

MSD2242VEB01 08 – DISPENSER FRONT PARTS

MSD2242VEB01 08 – DISPENSER FRONT PARTS

Written by

in

MSD2242VEB01 08 – DISPENSER FRONT PARTS

Products

PositionProduct
2Screw
3MAY 2194719
4MAY 2304772
5MAY 2196195
6MAY 2180353
7MAY 2304355
8MAY 2205686
9MAY 2206671W
9MAY 2206671B
10MAY 2304317
11Lever, Ice Dispenser (White)
11Lever, Ice Dispenser (Black)
12MAY 2180224
13Switch Assembly
14MAY 2183771
15Lever, Water Dispenser (White)
15Lever, Water Dispenser (Black)
17MAY 2325305
19MAY 489000
20Front Cover Assembly (Includes Items 13, 16, 17 & 18) (White)
20Front Cover Assembly (Includes Items 13, 16, 17 & 18) (Black)
21Sleeve, Delay Mechanism
22MAY 2195051
23MAY 2304673
