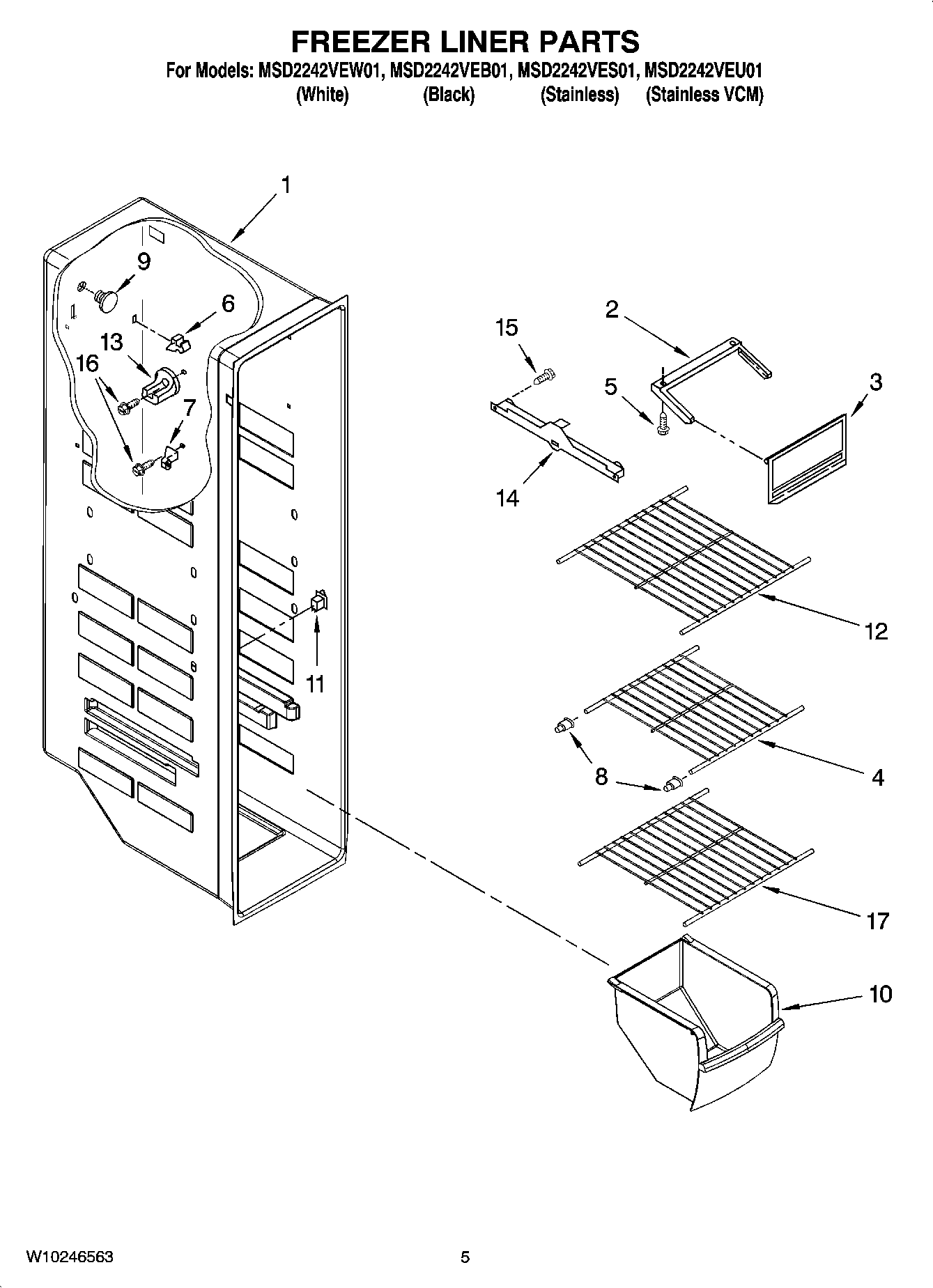

MSD2242VES01 04 – FREEZER LINER PARTS

Products

Position	Product
2	MAY 1115380
3	MAY 2171712
4	Shelf, Wire
5	MAY 489478
6	Clip, Air Duct (2)
8	Cup, Shelf Mount
9	MAY 940014
10	MAY 2309758
11	Switch, Rocker Arm
12	Shelf, Wire
13	Support, Stud (4)
14	Slide, Container (Right Side)
14	Slide, Container (Left Side)
15	MAY 489100
16	MAY 3400893
17	MAY 2309632
