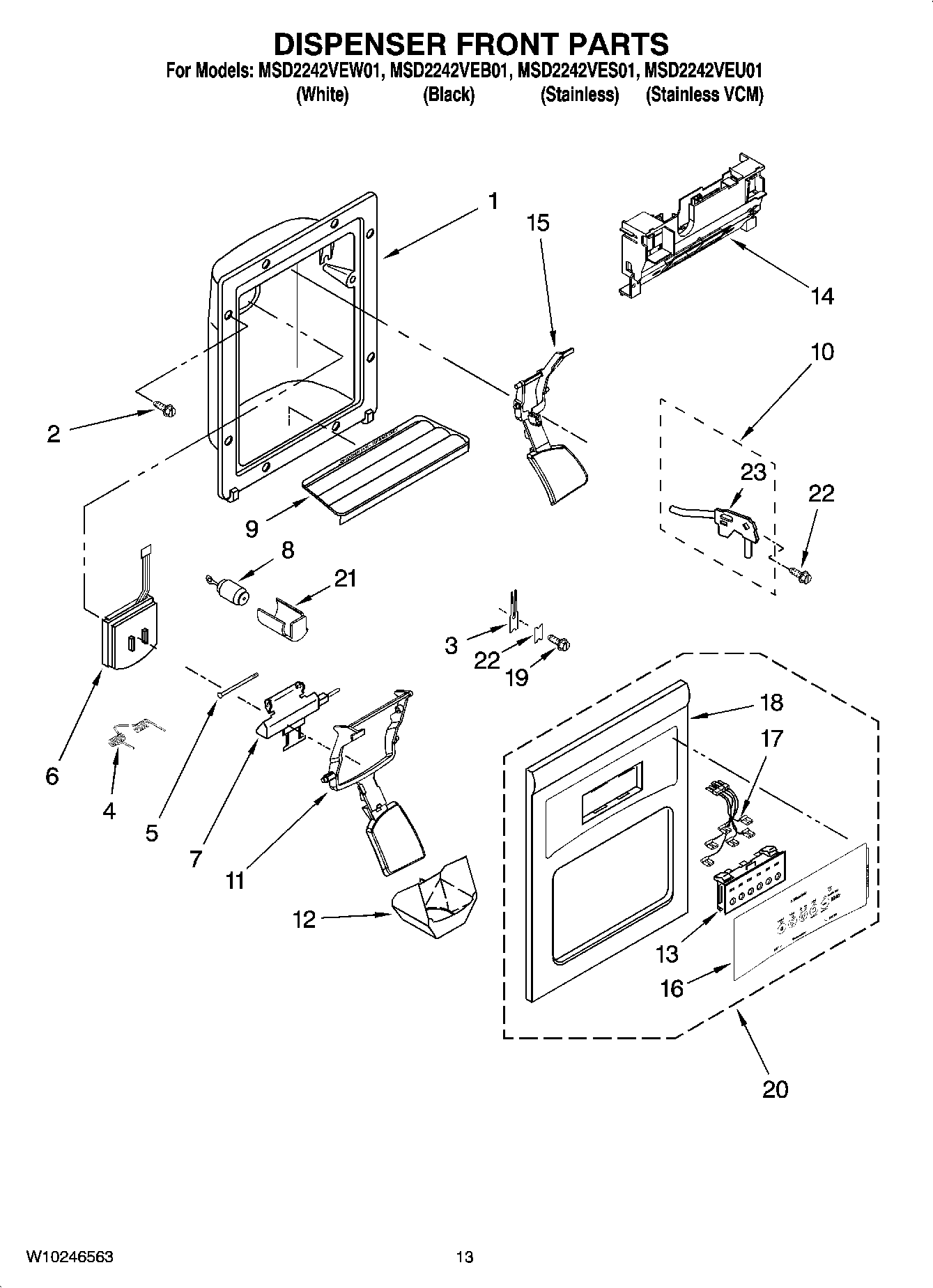

MSD2242VES01 08 – DISPENSER FRONT PARTS

Products

Position	Product
2	Screw
3	MAY 2194719
4	MAY 2304772
5	MAY 2196195
6	MAY 2180353
7	MAY 2304355
8	MAY 2205686
9	MAY 2206671W
9	MAY 2206671B
10	MAY 2304317
11	Lever, Ice Dispenser (White)
11	Lever, Ice Dispenser (Black)
12	MAY 2180224
13	Switch Assembly
14	MAY 2183771
15	Lever, Water Dispenser (White)
15	Lever, Water Dispenser (Black)
17	MAY 2325305
19	MAY 489000
20	Front Cover Assembly (Includes Items 13, 16, 17 & 18) (White)
20	Front Cover Assembly (Includes Items 13, 16, 17 & 18) (Black)
21	Sleeve, Delay Mechanism
22	MAY 2195051
23	MAY 2304673
