MSD2242VES01 11 – CONTROL PARTS – Aparts

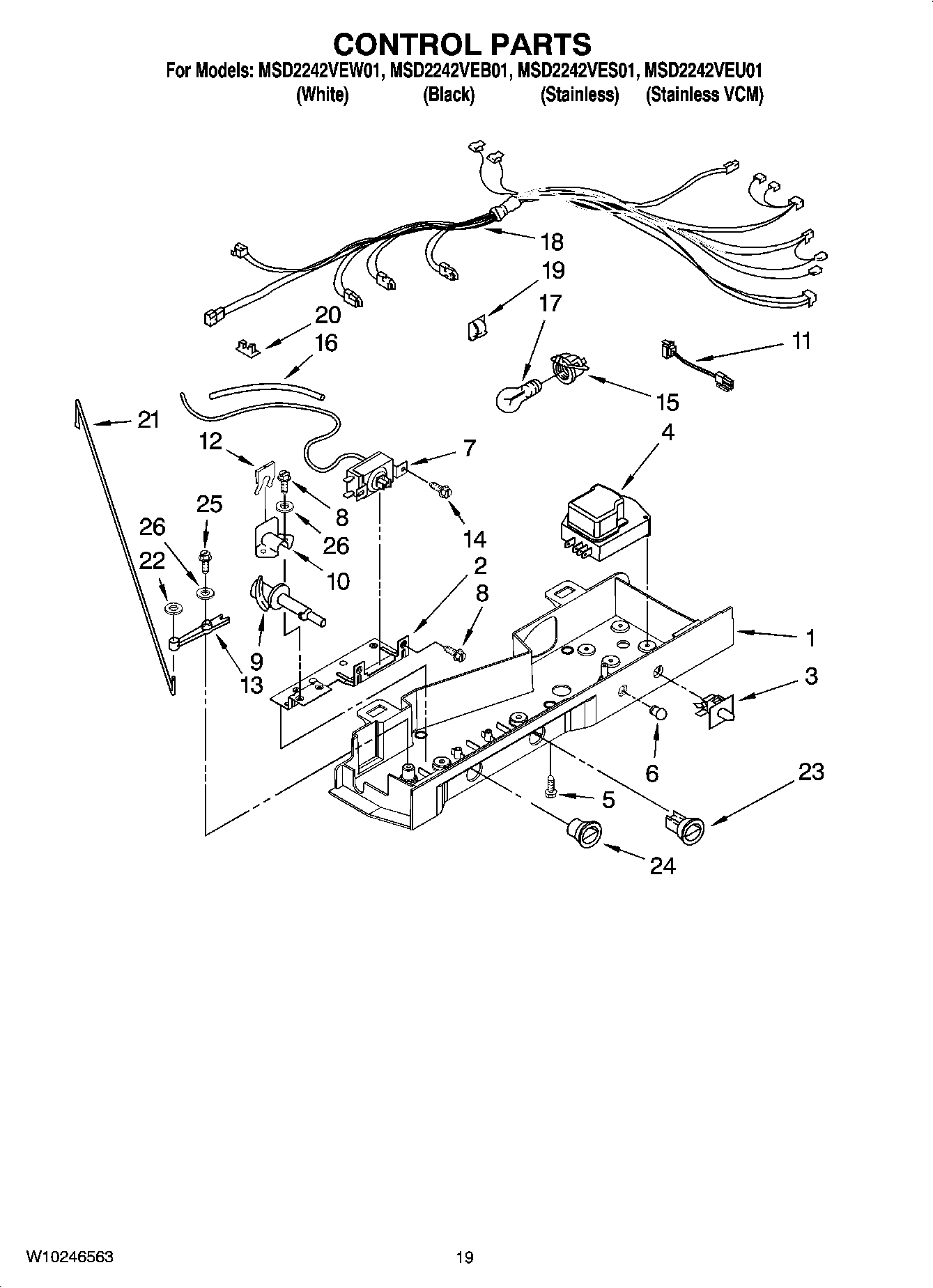

MSD2242VES01 11 – CONTROL PARTS

Products

Position	Product
1	MAY W10159858
2	MAY 2311611
3	SWITCH, LIGHT
4	Control Board Assembly
5	Screw
6	LENS, LIGHT
7	MAY 2198202
8	Screw
9	MAY 2182195
10	MAY 1110560
11	LED LIGHT ASSEMBLY
12	Damper Control
13	MAY 1110559
14	Screw
15	Socket, Light
16	TUBE-BARRIER, THERMOSTAT
17	MAY 527949
18	MAY 2311632
19	MAY 1115374
20	Clip-Wiring
21	MAY 2311631
22	MAY 489285
23	KNOB, THERMOSTAT
24	KNOB, CONTROL
25	MAY 627068
26	Spring Washer
