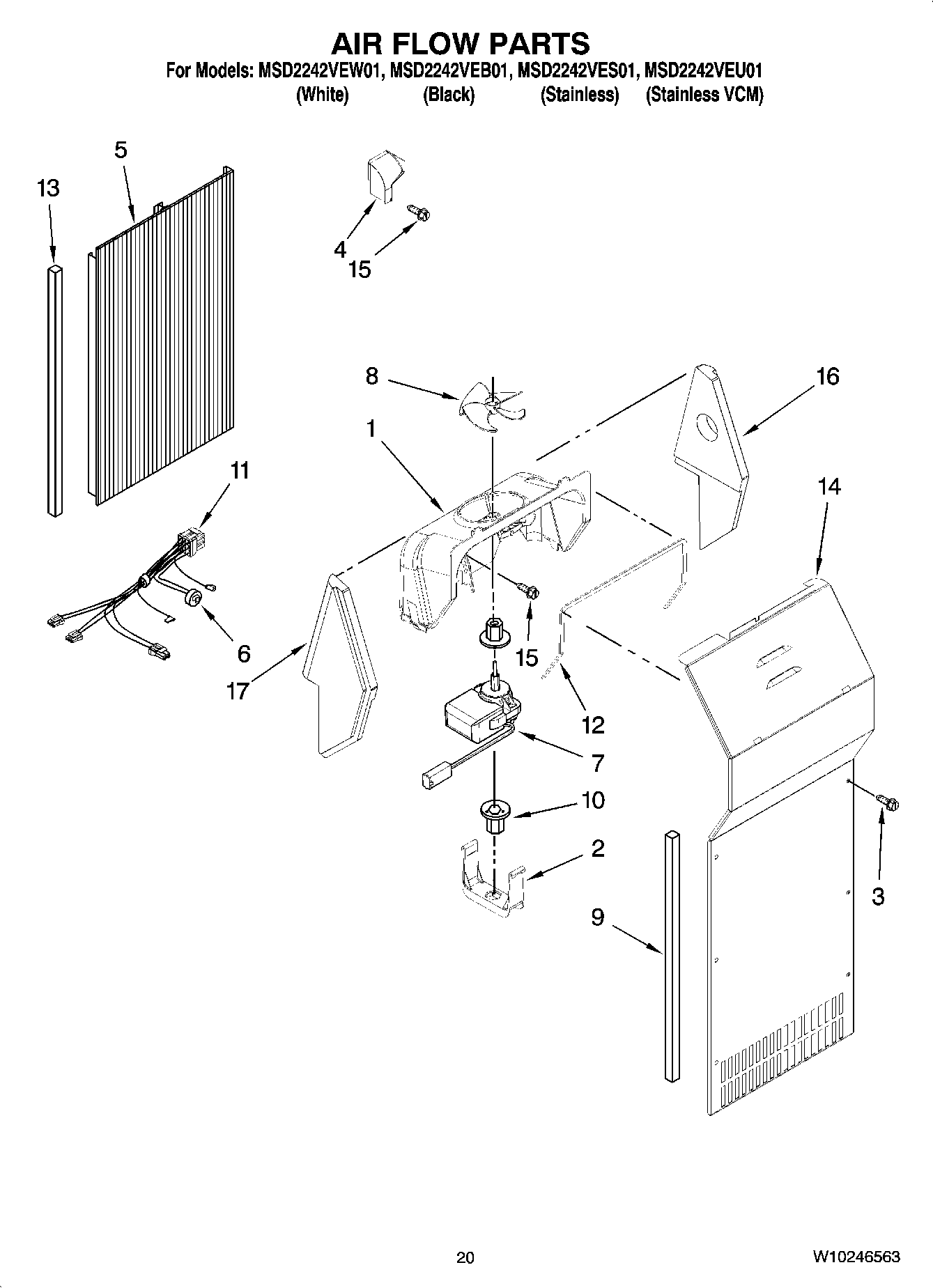

MSD2242VES01 12 – AIR FLOW PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	MAY 542639
NI	Kit, Evaporator Repair (Aluminum Epoxy)
NI	MAY 833938
NI	Refinishing Material (Enamel, Black (1 Qt. Uncut))
NI	PAINT, TOUCH-UP (1/2OZ. APOLLO GREY)
NI	MAY 80051
NI	PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE)
NI	PAINT, BULK (1 QT. GRAPHITE)
NI	MAY 542638
NI	MAY 505587
NI	MAY 503695
NI	MAY 479502
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
NI	SEALER, GUM (4 FEET)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	MAY 1117510
NI	PAINT, SPRAY (WHITE PRIMER)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
1	SCROLL, FAN
2	MAY 2155590
3	MAY 8281159
4	MAY 2182146
5	MAY 2203591
6	MAY 2321799
7	MAY 2315549
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	Harness, Fan Evaporator (Includes 4)
12	GASKET, SCROLL ASSEMBLY
13	MAY 2203875
14	Cover, Evaporator (Includes 9)
15	MAY 489478
16	SUPPORT, FAN SCROLL (RIGHT HAND)
17	SUPPORT, FAN SCROLL (LEFT HAND)
