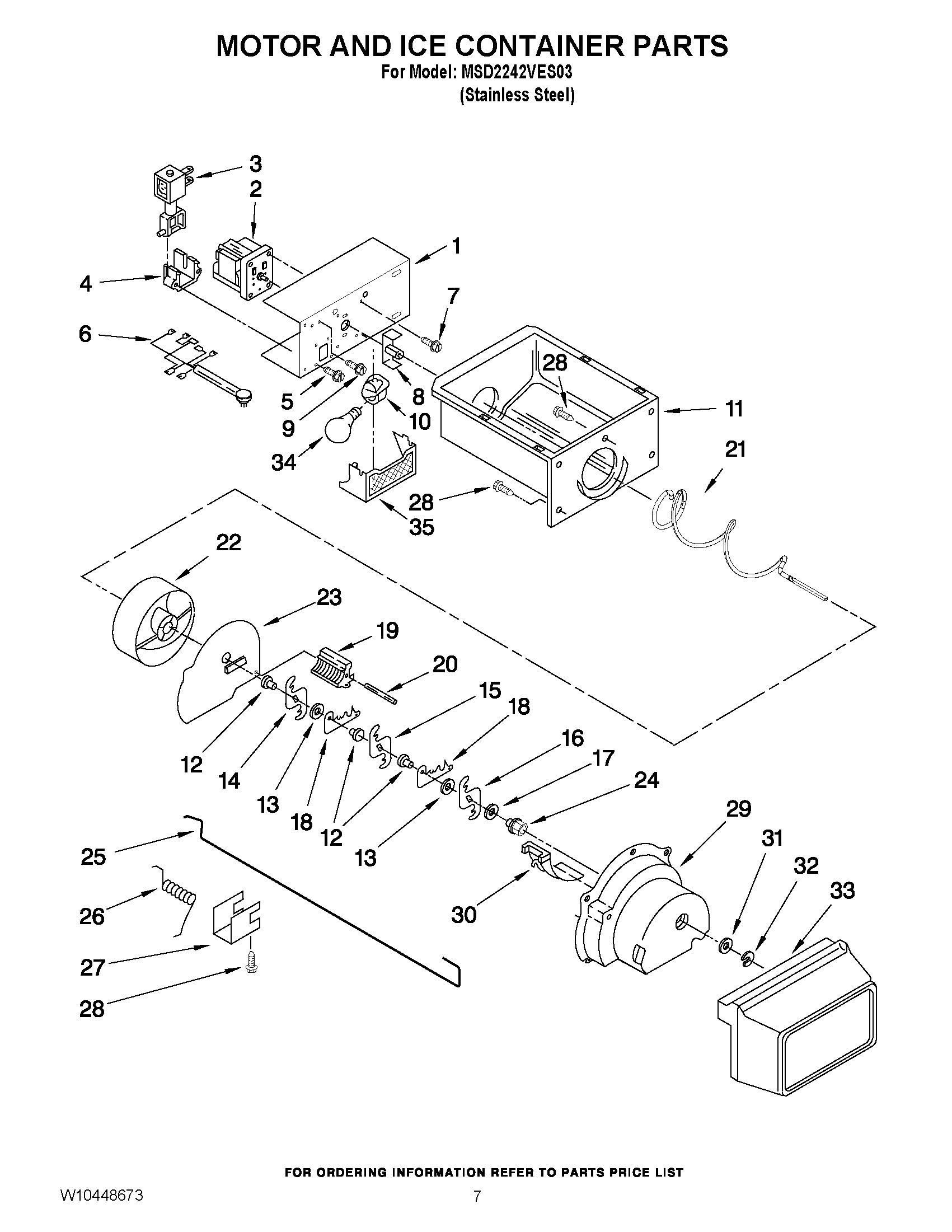

MSD2242VES03 05 – MOTOR AND ICE CONTAINER PARTS
Written by
in
MSD2242VES03 05 – MOTOR AND ICE CONTAINER PARTS
Products
Position
Product
1
MAY W10284487
2
MAY W10317991
3
Soleniod Assembly
4
Guide, Soleniod
5
SCREW
6
MAY W10281336
7
Screw 8-32 x 5/16
8
MAY W10169511
9
MAY 489478
10
Socket, Light
11
MAY 2196089
12
MAY 1119005
13
MAY 1119007
14
MAY W10278731
15
MAY W10278732
16
MAY W10278733
17
MAY 489235
18
MAY W10278727
19
Block, Blade
20
MAY 489229
21
MAY W10295082
22
MAY 2305377
23
MAY 2171682
24
MAY 1119018
25
MAY 2155231
26
MAY 1119020
27
MAY 1119021
28
MAY 488886
29
MAY W10413658
30
MAY 1119017
31
MAY 489234
32
MAY 489236
33
Front Cover Ice Container
34
MAY 527949
35
MAY 2171706
100
MAY W10312301
←
