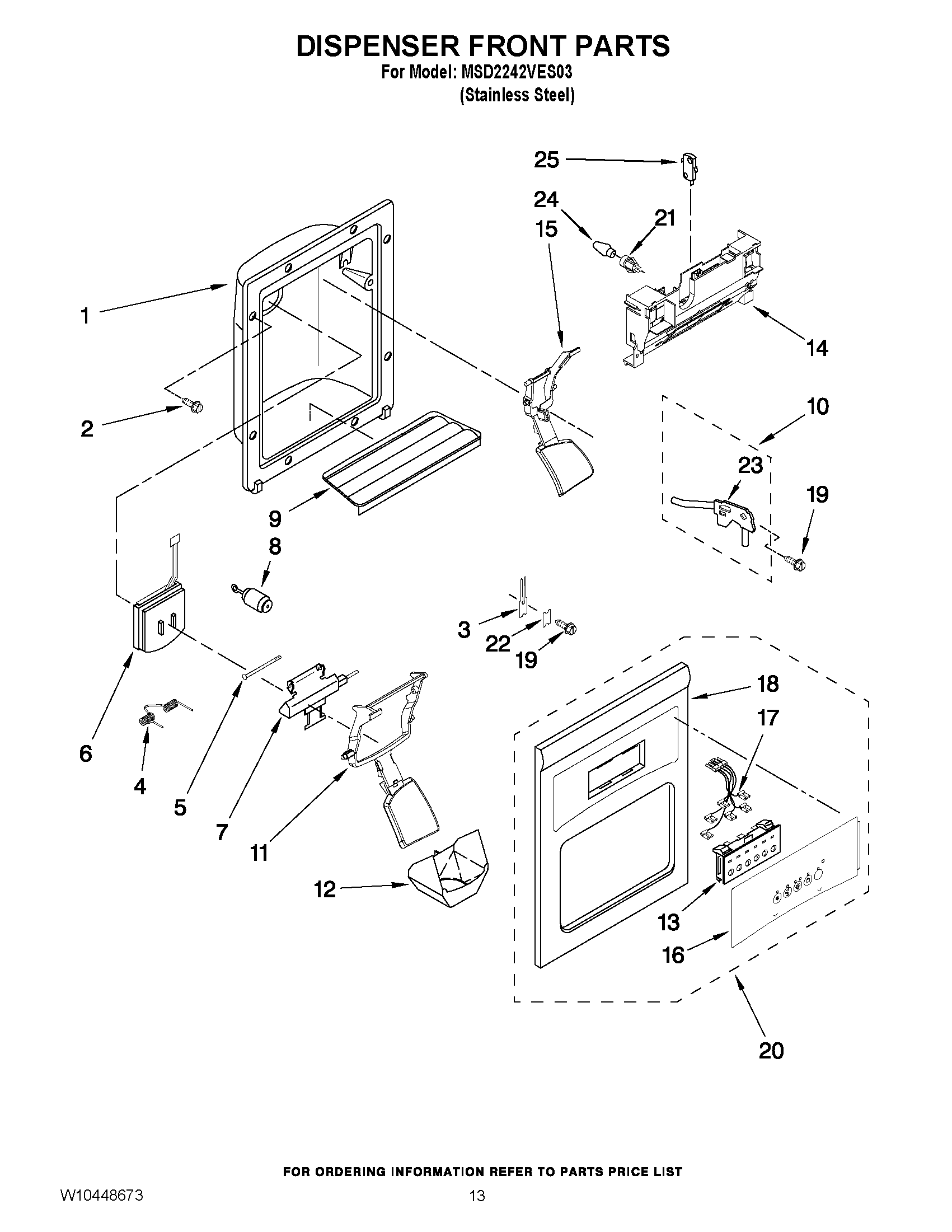

MSD2242VES03 08 – DISPENSER FRONT PARTS

Products

Position	Product
2	Screw
3	MAY 2194719
4	MAY 2304772
5	MAY 2196195
6	MAY 2180353
7	MAY 2304355
8	MAY 2205686
9	MAY 2206671B
10	MAY 2304317
11	Lever, Ice Dispenser (Black)
12	MAY 2180224
13	Switch Assembly
14	MAY W10282667
15	Lever, Water Dispenser (Black)
18	LINER (NOT A SERVICEABLE PART)
19	MAY 489000
20	Front Cover Assembly (Includes Items 13, 16, 17 & 18) (Black)
21	MAY 2180200
22	MAY 2195051
23	MAY 2304673
24	MAY 3406124
25	Switch (4)
