MSD2242VEW00 01 – CABINET PARTS – Aparts

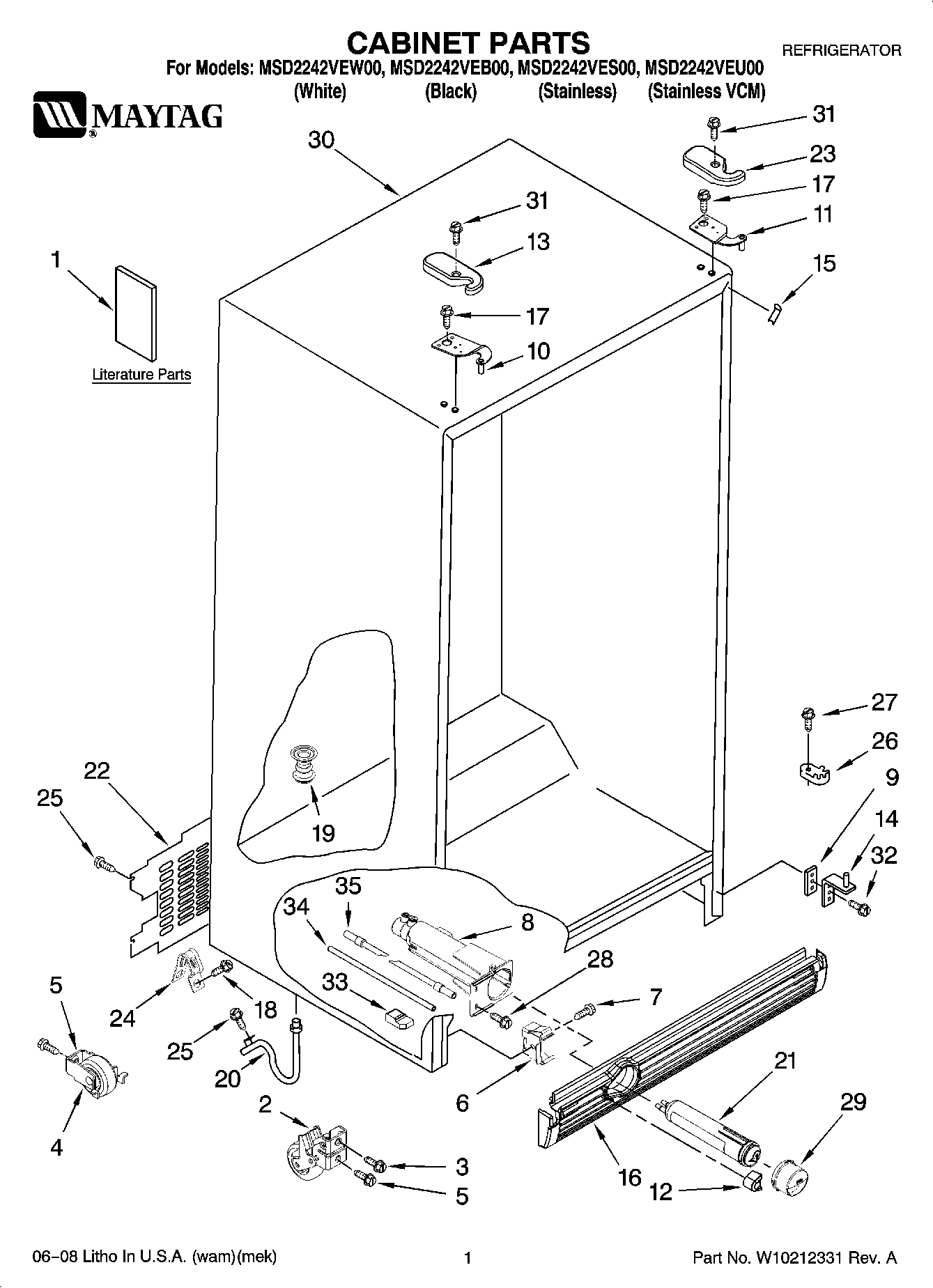

MSD2242VEW00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10153840
1	MAY W10158908
1	MAY W10181963
1	MAY 628370
1	MAY W10154390
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY 489427
6	MAY 2155013
7	MAY 489478
8	MAY 2260507
9	Shim (2)
10	HINGE TOP, FC
11	HINGE TOP RC
12	MAY 2260503W
12	Button, Filter (Black)
13	HINGE COVER FC (BLACK)
13	HINGE COVER FC (WHITE)
14	MAY 2217075
15	MAY 2201017
15	Corner Filler (2) (White)
16	MAY 2260501B
16	MAY 2260501W
17	MAY 489497
18	Screw (3)
19	MAY 2304888
20	MAY 2304937
21	MAY 4396841
22	MAY 2188734
23	HINGE COVER RC (WHITE)
23	HINGE COVER RC (BLACK)
24	MAY 549193
25	MAY 489084
26	MAY 2155311
27	MAY 489483
28	MAY 489500
29	MAY 2260502W
29	MAY 2260502B
31	MAY 8281227
32	Screw (4)
33	Block, Housing Support
34	Tube, Filter Outlet
35	MAY 2319867
