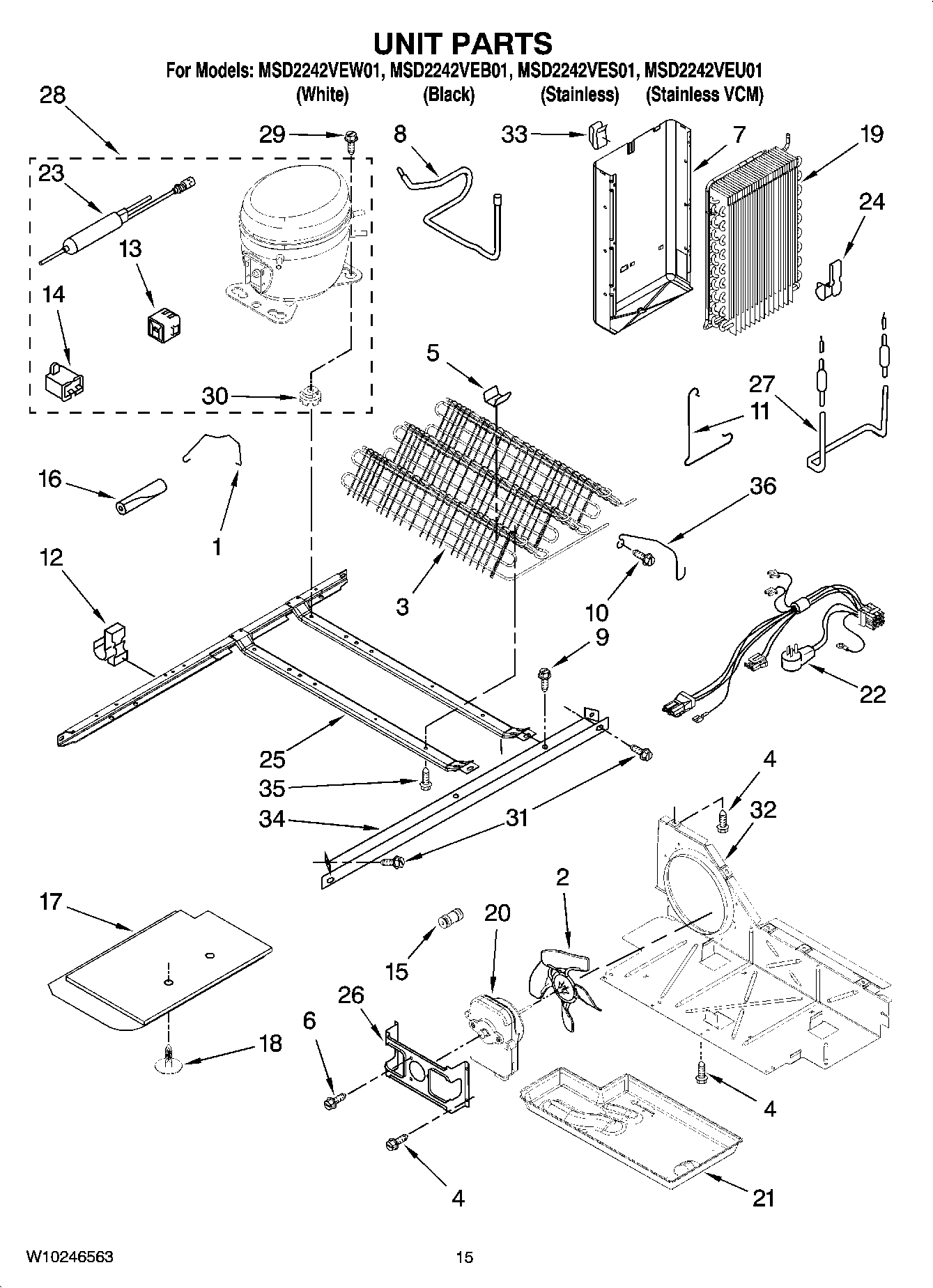

MSD2242VEW01 09 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	BALE STRAP
2	Fan, Blade
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	MAY 2311725
6	MAY 8533993
7	ASSEMBLY, HEAT SHIELD AND DRAIN PAN
8	MAY 2220642
9	MAY 489427
10	MAY 489478
11	Clip
12	Clip, Wire
13	Start-Device, Combination (Start Relay and Overload) (Production)
14	CAPACITOR
14	CAPACITOR
15	Connector, Water
16	Sleeve, Pressure Switch Hose
17	UNIT COVER BOTTOM
18	MAY 489396
19	MAY 2188822
20	MOTOR, CONDENSOR
21	MAY 1105523
22	Unit, Harness
23	Drier
23	Drier
24	MAY 2304287
25	Frame, Unit Mounting
26	MAY 2181929
27	MAY 2188174
28	Compressor (Includes Items 13, 14, 23, & 30)
29	MAY 489373
30	Grommet (Production)
30	MAY 2183042
31	MAY 489340
32	MAY W10163483
33	MAY 2155547
34	MAY W10196323
35	MAY 8281232
36	MAY 2260516
